TAGML: A markup language of many dimensions

Balisage: The Markup Conference 2018
July 31 - August 3, 2018

Introduction

Philosophy, definitions

From cave wall to clay tablet, and from codex to bits, the way we write and the ways in which we model, store, and process textual objects are influenced by the medium and technologies at our disposal. Hence, over time, we have had various understandings of text, ranging from a sequence of characters designed to support oral recital to a hierarchical tree of objects. Our changing understanding and implementation of our perspectives on what text really is has had consequences for how we interact with textual objects, since the affordances and limitations of a prevailing technology may blind us to aspects not supported by that technology (Dillen 2015, 69). Encoding a historical text in TEI-XML, for instance, might subtly encourage us to ignore textual phenomena that are not part of the TEI-XML encoding model (Sahle 2013, 381–82). We maintain that it is most natural, idiomatic, and inclusive to consider text as a network of often implicit information. Adhering to this conceptual idea of text opens the way to an innovative approach to creating, modeling, and processing textual objects.

This article describes recent progress in the design and implementation of TAGML, a markup language for the Text As Graph (TAG) model of text, from a conceptual and a technical perspective. We characterize the relationship between the markup language and the data model, and we outline how creating layers of markup and annotation on the text allows the user to formally describe complex textual features in a straightforward manner. The article builds on two previous articles on the same topic (Haentjens Dekker and Birnbaum 2017; Bleeker et al. 2018a), which respectively introduced the TAG model and described how to model textual variation in TAG.

Over the past decades, a variety of definitions of the term text has been suggested. In order to construct a well-grounded and useful model, we need a highly refined definition of the textual object, a definition that holds on a conceptual level and one that translates informatically. We therefore propose to distinguish between a conceptual description and a technical description of text. On the one hand, we define written text as a sequence of characters (e.g., letters, digits, spaces, and punctuation in most alphabetic writing systems) inscribed in a document. A document, here, is a physical object that contains some sort of inscribed information. Both text and document are broadly defined, and may also include, for example, the bits on a disk or the symbols carved in a tree. The items that make up written text are culturally determined, and although not all writing is alphabetic, nonalphabetic writing systems also use written symbols to express linguistic textual content.

On the other hand, the TAG model understands text to be a multi-layered, non-linear construct containing information that is at times ordered, partially ordered, and unordered. A layer is, in principle, defined as a hierarchical set of Markup nodes (including associated annotations). By multi-layered we mean that a text in TAG can have multiple layers of markup. A layer is hierarchically structured; layers may overlap. Layers have a key function in TAGML, as is described in Layers.

By non-linear we mean that the text nodes (textual content) of a TAG document do not necessarily form a single ordered list. The TAG model distinguishes three types of information: textual content, textual variation, and markup. These three types of information can be expressed without workarounds in TAGML, as illustrated in Order of textual content.

Textual content in TAG, from an informational perspective, is a sequence of characters (including symbols, but excluding any type of formatting). In the following excerpt from a letter by Willa Cather, the phrase now Mariel I am "packing" and I know you will excuse this brief scrawl makes up the textual content:

Figure 1

png image ../../../vol21/graphics/HaentjensDekker01/HaentjensDekker01-001.png

Excerpt from a letter from Willa Cather to Mariel Gere, source: letter ID 0005, in the Willa Cather archive, edited by Andrew Jewell (20104-2018)

Markup can be used to make implicit information explicit. Adding markup to a document can be understood as adding one or more layers of additional information (structural, interpretive, etc.) to the information expressed by the sequence of textual characters.

In TAGML, markup consists of start-tags and end-tags. A start-tag and an end-tag together constitute a Markup node. Markup nodes can have attributes, which are called annotations. Annotations are comparable to the attributes on XML elements in that they represent properties of an object. Annotations in TAGML, unlike XML, are typed (Data typing).

Alexandria is a text repository system that serves as the reference implementation of the TAG model, under ongoing development at the Research and Development team of the Humanities Cluster of the Dutch Royal Academy of Science (Alexandria). Within the framework of Alexandria, a view is a version of a TAG document with one or more layers of markup. The concept of view can best be understood from a user’s perspective: similarly to the git (Git) workflow, working with text in Alexandria entails checking out from the Alexandria repository a version of the TAG document with a specified set of layers (the view), editing this view, and checking in the edited view back into the repository. The motivation for supporting customizable views of a TAG document is that the TAG document in its full, hypergraph glory may contain more information (layers of Markup nodes and annotations) than can be visualized in any informative way. In situations where users are able to interact meaningfully with a text without seeing all Markup layers simultaneously, a view enables them to work on specific aspects of a document without distraction by other features. A more detailed description of these concepts is given in TAGML, and the theoretical dimensions of views are laid out in Workflow.

Overview

It is a truth universally acknowledged—at least within the markup community—that a markup technology stack is a complex business. Such a stack typically includes at least four ingredients: a model, a syntax, a query language, and a schema. Haentjens Dekker and Birnbaum 2017, presented at Balisage 2017, introduced the model—a hypergraph model for text—that understood text as a network of information. Our 2017 paper identified a number of textual phenomena that the hypergraph model needs to express, and it showed how the model represents each of them. That paper also introduced the Alexandria prototype implementation of TAG (Alexandria), which can import documents marked up in either LMNL (Piez 2008) or TexMECS (Huitfeldt and Sperberg-McQueen 2003). At that time TAG did not have its own markup language, and it borrowed from the syntax from LMNL and TexMECS to represent features of TAG. Finally, an Appendix to our 2017 paper identified five issues that were not yet part of the TAG model, although they had been identified as important, and therefore as goals for future development:

  • simultaneity

  • constraints

  • a markup language

  • textual variation (on an intradocumentary as well as an interdocumentary level)

  • transposition

A number of these features have now been included into the TAG model and are discussed below in the present article: simultaneity, constraints (for now only from a technical perspective, and not yet from a user perspective), the TAGML markup language, and textual variation (for now only on an intradocumentary, and not interdocumentary, level). The other aspects of constraints and textual variation, as well as transposition, are still under development, and are not within the scope of the present paper.

Our paper begins with an introduction to the syntax of the TAG markup language (TAGML, section “Syntax”), including a formal grammar of TAGML (TAGML grammar). The next section describes a workflow that facilitates editing a multilayered document (Workflow) and sketches at least three implementations of the layer functionality. As an illustration of the workflow we focus on editing a historical manuscript, but TAG also facilitates modeling and processing other types of text, e.g., born-digital texts, or non-literary texts, such as those represented in judicial or pedagogical documents. The consequences and implications for the way we model, work with, and understand text are discussed in the Discussion and Conclusion.

Two essential ingredients of the markup technology stack are not addressed at all in the present article: schema language validation and the query language. We introduce the concept of the schema language in this paper, but it remains at an early stage of development. The query language was introduced in an exploratory way in our Balisage 2017 article, and will be extended in the future. The aspects of the project that we regard as ready for presentation at the Balisage 2018 conference are the TAGML markup language, our modifications to the TAG hypergraph model, and the proposed workflow for managing multiple Markup layers.

Despite work on the (implementations of the) TAG model being under active development, we consider our experiences with developing TAGML as beneficial to a productive discussion on designing a markup language. The affordances of TAG’s hypergraph model allowed us to reconsider ingrained notions of textual features and how to model them most effectively. Our article, then, can be read not only as a technical report of recent project developments, but also as a conceptual and methodological reflection on the potential of markup to express our understandings of text.

TAGML

Preamble

TAG is designed to be able to model (and TAGML is designed to be able to encode) text and markup, including overlapping markup and ordered, partially ordered, and unordered information. This design principle means that TAG processing can support any type of query, from Boolean to ranked pattern matches at the level of the model, and that the complex mixture of information can be parsed and processed in an idiomatic manner and without work-arounds. Encoding of unordered data is supported in a JSON-like manner (Data typing); as is linking from a TAGML transcription of ordered text to unordered information (Linking elements). Annotations in TAG, unlike attributes in XML, can contain both text and markup. This feature is defined as Rich text (Rich text annotations). Annotations may also have annotations.[1]

TAGML allows the straightforward expression of the multi-layered, non-linear features of text described in Philosophy-and-Definitions. The following subsections first describe the general features of TAGML: layers, non-linear structures, and order. They then go on to discuss TAGML’s syntax in detail. TAGML’s general specifications are then illustrated with examples that include the (main) constraints of the syntax. Finally, the specifications are summarized in tabular format.

Layers

Layers are used to classify a specific set of Markup nodes. The reasons for grouping Markup nodes together into a set may vary. For example, a set of Markup nodes may express a research perspective on text, as with a layer that consists of Markup that describes the physical aspects or the poetic structure of a text. Alternatively, in the case of an editorial workflow with two or more users, a layer could identify a set of Markup nodes that is added by a particular user.

In TAGML we model containment as well as dominance.[2] To understand this feature, it is helpful to examine the distinction between total containment, partial containment, and dominance. Partial containment, or partial overlap, occurs when content is shared by two or more Markup nodes. Total containment occurs when all content in one Markup node is shared with another Markup node. In hierarchical terms, A fully contains B means A is an ancestor of B, etc.[3] Dominance presupposes total containment, but also requires meaningful semantics:

Containment is a happenstance relationship between ranges while dominance is one that has a meaningful semantic. A page may happen to contain a stanza, but a poem dominates the stanzas that it contains. (Tennison 2008)

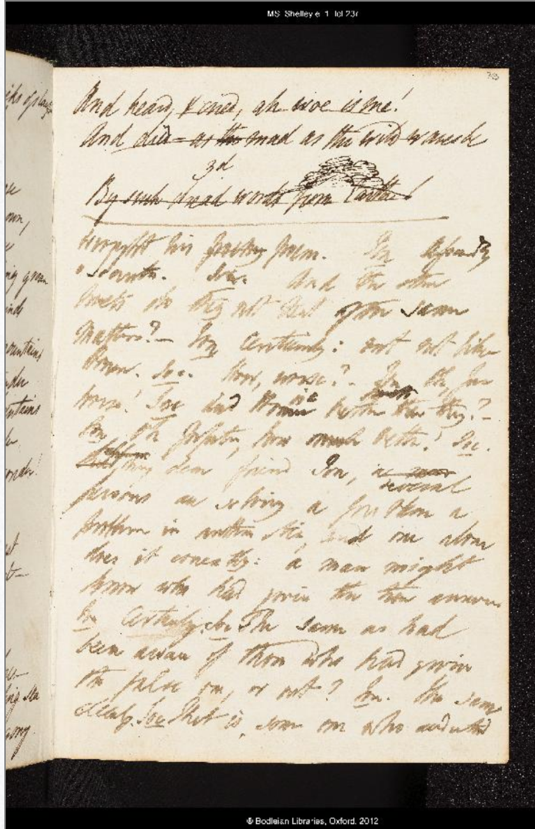

If we apply the preceding explication to the case of Folium 23r, Prometheus unbound, we can say that the manuscript page contains a number of lines, but also that the first two lines are dominated by a stanza. Accordingly, TAG assumes that dominance reflects a user’s interpretation of a text’s hierarchical structure(s), and is therefore applied intentionally.

Two basic ways are available to record dominance within an encoding: in the syntax of the document instance or in a schema. In the model of Extended Annotation Graphs (eAG), dominance is represented in the syntax, which means that the dominance needs to be recorded per individual item or element (e.g., A extends B or a > b [Barrellon et al. 2017]).

In TAGML dominance is also represented in the syntax, but in a different way. Rather than specifying the parent node of each node, nodes are grouped in a layer. This means that markup within a layer represents a dominance relationship, while layers that overlap represent containment. This is somewhat similar to the notation that XConcur uses to indicate that an element belongs to multiple hierarchies (Hilbert et al. 2005), but with an important distinction: in XConcur, complete subtrees are shared, while in TAGML indidivual markup nodes are shared between layers. This is more akin to how nodes are shared in Multi-Colored-Trees (MCT, Jagadish et al. 2004). Layers do not have to be defined at the beginning of the document, a new layer can be started at any point in the document, and Markup nodes may be part of multiple layers.

Order of textual content

In general, the text of a TAGML document is to be read in the order in which it is transcribed. Continuous textual content is normally fully ordered. The value of the data is represented by the character sequence, and the order of the characters is therefore an inalienable part of the meaning. Because of its fully ordered nature, the information is parsed and processed by traversing the characters in a manner determined by the writing system (from left to right, proceeding from top to bottom, in the Cather letter).

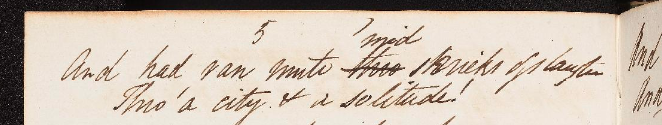

Textual variation constitutes partially ordered information. Consider the following example, also by Willa Cather:

Figure 2

png image ../../../vol21/graphics/HaentjensDekker01/HaentjensDekker01-002.png

Excerpt from a letter from Willa Cather to Mariel Gere, source: letter ID 0005, in the Willa Cather archive, edited by Andrew Jewell (20104-2018)

The word white is crossed out, so that the phrase can read either It will be quite a white until school begins or It will be quite a while until school begins.[4] There are, metaphorically speaking, two paths through the sequence of text characters, which diverge after the word a and reconverge before the word until. Cather wrote the word white before she wrote the word while, and that order is meaningful with respect to the genesis of the text, but synchronically the variation is simultaneous: there is an erroneous path through white and a correct path through while. The two words that alternate are mutually exclusive in terms of whether we choose the original or the corrected reading, and they are at the same distance from the beginning of the sentence, a phenomenon we describe, using terms from graph theory, by saying that they have the same rank. Items at the same rank are logically unordered, which means that although the textual content in general is fully ordered, at the points in the text where variation occurs the textual units (which we call Text nodes) at the same rank on different paths are unordered. Within each path, however, the textual information is again fully ordered.

Order of metadata

Although the combined set of information (i.e., text and markup) is at times ordered, unordered, or partially ordered (see also Order of textual content), depending on the kind of information that is expressed, existing text models and markup languages in wide use are typically well-suited to handle only specific types of information. For example, unordered data can be represented naturally in JSON objects, the contents of which are necessarily unordered. Meanwhile, the XML data model (and associated markup syntax) require that all elements be ordered (and that XML attributes be unordered, about which see below).

Unordered information is commonly found in metadata contexts. For example, a corpus of Willa Cather’s letters might include, perhaps in an ancillary document, biographical information about her correspondents, such as their first names, surnames, birth and death dates, addresses, etc. This type of information is often encoded in name:value pairs, as in a JSON object, and the order of the properties of a JSON object is, by definition, not informational. (An object is an unordered set of name/value pairs. Introducing JSON) In so-called data-centric XML,[5] a schema may specify that sibling elements that encode name/value pairs may appear in any order, and in this sense data-centric XML may seem similar to name:value pairs in JSON objects in not ascribing meaning to the order of properties. There is, however, an important difference. Two JSON objects that happen to store their name:value pairs in different orders (on disk or in memory) are informationally identical because the order of properties in a JSON object is undefined. But two XML documents that have the same properties in a different order are never informationally identical, that is, deep-equal(). A schema may license alternative orders, and a query may ignore order, but order is an inherent and inalienable part of XML element structure. For example, the use of TEI-XML elements to represent regularization (orig/reg), correction (sic/corr), or abbreviation (abbr/expan) is ordered in the sense that two XML documents that differ in the order of an orig/reg choice are different XML documents, and that difference can be ignored only at the application level. (Bleeker et al. 2018a) XML attributes are unordered, but the type of values they can represent is limited because attributes cannot contain markup, which means that they can represent only flat, atomic content. This means that at the level of the model and syntax, XML has no way of representing unordered content that is more complex than atomic values.

Intermediate conclusion

Many of the features of TAGML discussed above are adopted or adapted from other markup languages, including LMNL, TexMECS, XML, and FtanML. Wherever possible, our goal has been to synthesize effective solutions originally developed elsewhere, and we regard their relative familiarity to the markup community as a virtue. Combined with the affordances of TAG’s hypergraph model, TAGML seeks to realize the full potential of markup for text modeling.

The support for ordered, partially ordered, and unordered information results in an inclusive textual model that not only broadens our understanding of what text really is, but also expands our means of expressing it and improves our means of processing it. These features of TAGML offer users the means to express their interpretation of a text’s structure, its whitespace, and the various data types used in the model. As a result, a TAG file contains a refined and explicit model of text.

Syntax

Encoding text

A TAGML document consist of Unicode characters (encoded as UTF-8) and adheres to the syntax defined in this description. We assume that encoding a text is equivalent to creating a plain text file.

In a TAGML document, the following characters may need to be escaped using the escape character \ :

[ -> \[
< -> \<
| -> \|
! -> \!
" -> \"
' -> \'
\ -> \\

However, these 7 specific characters do not need to be escaped every time they occur. In regular text we only need to escape the two characters that start a markupStartTag, markupEndTag or markupMilestone, plus the escape character itself.

< -> \<
[ -> \[
\ -> \\

For text inside textVariation tags we also have to escape the variation divider character |.

< -> \<
[ -> \[
\ -> \\
| -> \|

For text inside a comment we only have to escape the character that starts the comment ending tag !], plus the escape character itself.

! -> \!
\ -> \\

Single or double quotation marks may be used interchangeably where a quote-delimited value is required, with the stipulation that the starting and ending delimiter must be the same (both single or both double). Where the delimiter character must also be used within the string, it can be escaped, as well:

' -> \'
" -> \"
\ -> \\

Whitespace

In TAGML Whitespace is insignificant unless specified otherwise. The advantages of making whitespace insignificant by default is similar to the reason why TAG takes dominance to be intentional and semantically relevant. When all whitespace is considered significant, it may be impossible to distinguish its meaning: is the whitespace merely the result of pretty-print formatting settings, or is it in the original document? The principle that whitespace is not significant in TAG by default allows users to specify the function of whitespace. TAGML thus prevents the accidental introduction of unwanted significant whitespace, which means that TAG files can be reformatted and pretty-printed without changing the meaning of the document and without introducing processing errors.

Adding markup

[line>The rain in Spain falls mainly on the plain.<line]

A tag (lowercase) is the entity used to indicate markup boundaries. For every start-tag [markup> there should be a corresponding end-tag <markup], and vice versa. The example below will raise an error because of a missing end-tag:

[line>The rain

Similarly, a missing start-tag produces an error:

on the plain.<line]

In the example below, the line markup is never ended and the paragraph markup is never started:

[line>The Spanish rain.<paragraph]

In principle, each tag needs to have a name, so

[>The Spanish rain.<]

results in an error, since start-tags and end-tags without a name are not allowed. However, this constraint applies only to tags in the main text, because [> and <] are allowed in annotations as delimiters of rich text.

Markup can be assigned to one or more layers by adding a layer indicator in the start-tag and end-tags after the | symbol. If the layer indicator is used for the first time in the file it needs to be preceded by a + symbol in the start tag.

[line|+A>Cookie Monster likes cookies.<line|A]

In this example the markup line is part of a new layer called A.

Adding annotations

[line month_1='November' month_2=11>In the eleventh month...<line]

Markup has a name and zero or more annotations on the start-tag. In the example above, line is the name, and month_1 and month_2 are the names of the annotations. Every annotation name on a markup start-tag must be unique, and the following example raises an error because the annotation type is repeated:

[animal type="cat" type="feline">Puss in Boots<animal]

Milestones, placeholders, empty markup elements

TAGML supports empty markup elements with a placeholder function like milestones:

[img src='http://example.com/img.png']

Comments

Comments can appear anywhere in a TAG document except within a markup tags:

[l>When in the course of human events,<l]
[! The spelling and punctuation reflects the original.!]
[l>it becomes necessary...<l]

Comments cannot be nested in TAGML. Comments can contain markup.

Namespaces

Namespaces can be used to refer to external vocabularies. Similar to XML, markup elements are given a unique identifier that refers to the namespace.

[!ns p http://tag.com/poetry]
...
[p:poem>Roses are red, .....<p:poem]

Data typing

In XML, all annotation values are by default (that is, in the absence of a schema specification) of type xsd:untypedAtomic, which in practical terms means that they behave like strings. If the value of an XML attribute type @date is, in fact, a date, this needs to be specified in the schema. In line with FtanML (Kay 2013) and JSON, TAGML therefore supports simple data typing, so that users can make explicit the type of the annotation value (e.g., a List, a Number, a character String, and so on). More detailed or complex data types can be expressed in the TAG schema, where users can record that a specific annotation value contains text, markup, and/or annotations. For example, in the TAG schema a stringAnnotationValue may be typed as personName, or a numberAnnotationValue may be typed as identifier. TAGML thus integrates useful features of JSON, FtanML, and XML.

[poem type="limerick"
      author='John'
      year=1818
      rhymes=true
      keywords=["unfinished","censored"]>There once was a vicar from Slough...<poem]

As mentioned in Philosophy-and-Definitions, TAG annotation values can include both text characters and markup, (this is called the rich text content datatype) and annotations may also have their own annotations (this is called the nested annotation data type)

Annotations can be added to the start-tag of any markup, and annotation values can be of any of the following data types:[6]

  • string: "string" or 'string' (bracketed by " or ')

  • rich text content: |>rich text [b>content<b]<| (bracketed by |> and <|)

  • boolean: true or false (not bracketed)

  • number: 3.14 (not bracketed)

  • (nested) annotation: {x=1 y=2} (bracketed by { and })

  • list of these data types: ['Huey', 'Dewey', 'Louie'](bracketed by [ and ])

By using an annotation data type as value for an annotation, TAG supports nested (hierarchical) annotations:

[origin
	location={
		position={x=1 y=2}
		countrycode='nl'
	}>Amsterdam<origin]

In the example above, whitespace is used to make the code snippet more readable, but because in TAGML whitespace is insignificant, this has no implications for processing.

When an annotation is of the data type list, all values within the List have to be of the same type: a list of Strings, a list of Numbers, etc. Mixed typing is not allowed. The following markup is therefore incorrect:

[letter date=["March", 12, "Twothousandeightteen"]>Dear Maurice, ...<letter]
Instead, the list should be replaced with a nested annotation:

[letter date={month="March", year=2018, day=12}>Dear Maurice, ...<letter]

Encoding non-linearity

In some manuscripts there may be different paths through the text, for example when a deletion/addition has been encoded as a pair:

[q>To be, or [del>to be not<del][add>not to be<add].<q]
To indicate that the del and add markup pair is where the text diverges, with the del part constituting one path, and the add part constituting the other, these markup elements can be grouped by enclosing them in textvariation tags <| and |>, with | to separate the diverging markups:
[q>To be, or <|[del>to be not<del]|[add>not to be<add]|>!<q]
In case of a solitary del without a corresponding add, mark the markup as optional to indicate there are two paths: one with the text marked up by del, and one without (grouping is not necessary in this case):
[q>To be, or [?del>perchance<?del] not to be?<q]

To enable addressability of the different branches when querying it is required to tag each branch with markup. In cases of non-linearity like open variants textual content is located at the same position, so it is not possible to speak of the third word. The following example is thus incorrect. The branches "to be not" and "not to be" in the text do not have tags surrounding them.

[q>To be, or <|to be not|not to be|>.<q]

Rich text annotations

As mentioned previously, Rich text content in annotations constitutes a new inner document. Therefore, the contents of Rich text annotations are not part of the main text. This is particularly useful for the encoding of images, glosses, or marginalia:

[text>Hello, my name is [gloss addition=[>that’s [qualifier>Mrs.<qualifier] to you<]>Doubtfire. How do you do?<gloss]<text]
In contrast to XML, TAG applications will not render Rich text annotations (e.g., glosses or notes) in the main text by default. If users prefer to see the text of glosses as part of the main text, they can specify this in stylesheets or transformation files.

Overlapping and self-overlapping markup

Unlike in XML, markup can overlap in TAGML:[7]

[line>[a|+A>Cookie Monster [b|+B>likes<a|A] cookies.<b|B]<line]

Markup a overlaps with markup b. Although the b markup starts before the a markup ends, it is not required to end before a.

Markup of the same name can overlap by adding different layer suffixes to the markup name (for both the starting and the ending tags):

[line>[a|+A1>Cookie Monster [a|+A2>likes<a|A1] cookies.<a|A2]<line]

In the case of self-overlap we can distinguish between partial overlap and full overlap. By default, an end-tag belongs to the last start-tag with the same name, so that the following sentence is a simple case of full containment:

[phrase>[phrase>Oscar the Grouch is<phrase] a trash can-dwelling creature.<phrase]

Partial overlap is expressed by placing layer suffixes on the corresponding start- and end-tags:

[phrase|+P1>[phrase|+P2>Rosita is<phrase|P1] a bilingual monster.<phrase|P2]

Suffixes on markup should be used only when strictly necessary, as in the following example of partial overlap:

[text>[phrase|+P1>[phrase|+P2>Music is<phrase|P1] part of<phrase|P2] being human.<text]

Discontinuity

A well-known example of discontinuity is the tagging of citations or quotes in a text:

[q>and what is the use of a book,<-q] thought Alice[+q>without pictures or conversation?<q]

In this text, the fact that the two sets of q tags define one interrupted quote is indicated by suspend/resume indicators before the markup name: a - in the first end-tag, and a + in the following start-tag, respectively.

There are several constraints that apply to the use of pause and resume tags. For one, there must be text between a pause and a resume tag, so the following example is not allowed:

[markup>Cookie <-markup][+markup> Monster<markup]

The second constraint is that between pause and resume tags of markup in a layer no opening or closing tags within that same layer are allowed. In the following example the q markup belongs to layer A and is paused after one word. In between the q pause and resume tag there are w tags that also belong to layer A.

[q|+A> Cookie <-q|A] Monster [w|A>likes<w|A] chocolate [+q|A>cookies<q|A]

This is not allowed, because it would break the hierarchy within the layer A. The correct way to encode a situation like this is to put the w markup in its own layer.

[q|+A> Cookie <-q|A] Monster [w|+B>likes<w|B] chocolate [+q|A>cookies<q|A]

The last constraint is that if a markup node occurs in multiple layers, a pause and resume tag must be applied to all the layers at the same time. In the following incorrect example the markup q is part of two layers A and B. It is paused in both layers, but resumed one layer at a time.

[q|+A, +B> Cookie <-q|A, B] Monster [+q|A> likes [+q|B> cookies <q|A,B]

Linking elements

In XML, the @xml:id attribute is commonly used to identify an element uniquely within its document. The @xml:id value can then be used as the value of pointer attributes on other elements as a way of linking to the first element. For example:

<xml>
  <meta>
    <persons>
      <person xml:id="huyg0001">
        <name>Constantijn Huygens</name>
        .....
      </person>
    </persons>
  </meta>
  <text>
    <title>De Zee-Straet</title> door <author pers="#huyg0001">Constantijn Huygens</author>
  </text>
</xml>

In TAGML, there is a special annotation :id to uniquely identify an element (markup or annotation), and a special annotation data type whose value is the :id of another element. In TAGML, the example can be expressed as follows:

[text meta={ persons=[ {:id=huyg0001 name='Constantijn Huygens'} ] }>[title>De Zee-Straet<title] door [author pers->huyg0001>Constantijn Huygens<author] ....... <text]

The TAGML parser will give a warning when an :id is never referred to, or when an annotation refers to a non-existing :id.[8]

Combining discontinuity and non-linearity

The rule that every pause tag should have a resume tag, and that every resume tag should have a pause tag can be problematic when discontinuity is combined with non-linearity:

[q>and what is the use of a <|[del>book,<-q]<del]| [add>thought
Alice<add]|> [+q>without pictures or conversation?<q]

In this example of incorrect use of the pause/resume tags, the pause tag <-q] only occurs in one path (the [del> path), so that the resume tag [+q> does not have a corresponding tag when the [add> path is traversed. We can solve this problem by adding either a more flexible constraint or a less flexible constraint. A more flexible constraint would require that, at the point of convergence, all paths must be in the same suspend-and-resume state. A less flexible constraint would be that, at the point of convergence, all paths need to be in the same state as before the divergence. TAGML implements the less flexible constraint.

Combining overlap and non-linearity

Consider the following, incorrect transcription:

[text>It is a truth universally acknowledged that every <|[add>young [b>woman<add]|[del>rich<del]|> man <b] is in need of a maid.<text]

The [b> markup is started in one path through the text (the [add> path), but not in the other path (the [del> path). Consequently, the end-tag <b] in the main text does not have a corresponding end-tag in the [del> path through the text. Again, there are two ways to solve this issue by adding a constraint, one more flexible and one less so. The more flexible constraint is that at the point of convergence all paths through the text should have the same set of tags started.

[text>It is a truth universally acknowledged that every <|[add>young [b>woman<add]<b]|[b>[del>rich<del]|> man <b] is in need of a maid.<text]

The less flexible version is that before convergence all paths should be in the same state as the moment of divergence:

[text>It is a truth universally acknowledged that every <|[add>young [b>woman<add]<b]|[b>[del>rich<del]<b]|> [b>man<b] is in need of a maid.<text]

In the first of the two preceding examples, the set of start-tags at the point of convergence is: [text> and [b>. The more flexible constraint works for both transcriptions. The second example illustrates the stricter constraint. TAGML implements the less flexible contraints. This means that all markup opened before divergence needs to remain open and cannot be closed in a branch. All markup started within one branch needs to be closed before the convergence.

Main document, inner documents, and discontinuity

Annotation values are not related to the rest of document, which means that, as mentioned above, Rich text annotations are not part of the content of the main document, and function as documents themselves. To distinguish them from the main document we call them inner documents. Discontinuity (pause-and-resume tags) is not permitted to cross document boundaries:

[text> [q>Hello my name is [gloss addition=[>that’s<-q] [qualifier>mrs.<qualifier] to you<]>
Doubtfire, [+q>how do you do?<q]<gloss]<text]

The transcription above produces an error, because the pause tag <-q] is located inside the Rich text of the annotation, which means that the resume tag [+q> located in the main text does not have a corresponding pause tag.

:id values defined on markup tags are global, and are therefore in scope even across inner document boundaries.

Grammar

The syntax of TAGML is specified by the formal grammar listed below:

  1. document ::= documentHeader? richText*

  2. documentHeader ::= namespaceDefinition*

  3. namespaceDefinition ::= '[!ns ' namespaceIdentifier ' ' namespaceURI ']'

  4. namespaceIdentifier ::= nameCharacter+

  5. richText ::= ( textEnrichment | text )*

  6. textEnrichment ::= ( markupStartTag | markupEndTag | markupMilestone | textVariation | comment )*

  7. text ::= textCharacter*

  8. textCharacter ::= [^[<\] | '\[' | '\<' | '\\'

  9. markupStartTag ::= '[' ( optional | resume )? tagIdentifier (' ' annotation)* '>'

  10. markupEndTag ::= '<' ( optional | suspend )? tagIdentifier ']'

  11. markupMilestone ::= '[' tagIdentifier (' ' annotation)* ']'

  12. textVariation ::= '<|' richTextInTextVariation ( '|' richTextInTextVariation )+ '|>'

  13. richTextInTextVariation ::= ( textEnrichment | textInTextVariation )*

  14. textInTextVariation ::= textInTextVariationCharacter*

  15. textInTextVariationCharacter ::= [^[<|\] | '\[' | '\<' | '\|' | '\\'

  16. comment ::= '[!' commentCharacter* '!]'

  17. commentCharacter ::= [^!\] | '\!' | '\\'

  18. optional ::= '?'

  19. resume ::= '+'

  20. suspend ::= '-'

  21. tagIdentifier ::= qualifiedMarkupName layerSuffix?

  22. qualifiedMarkupName ::= ( namespaceIdentifier ':' )? localMarkupName

  23. localMarkupName ::= nameCharacter+

  24. layerSuffix ::= '|' layerInfo ( ',' layerInfo )*

  25. layerInfo ::= ( parentLayerId? '+' )? layerId

  26. parentLayerId ::= layerId

  27. layerId ::= nameCharacter+

  28. annotation ::= annotationName '=' annotationValue

  29. annotationName ::= nameCharacter+

  30. annotationValue ::= stringValue | numberValue | booleanValue | richTextValue | listValue | objectValue

  31. stringValue ::= '"' doubleQuotedStringValueCharacter* '"' | "'" singleQuotedStringValueCharacter* "'"

  32. singleQuotedStringValueCharacter ::= [^'\] | "\'" | '\\'

  33. doubleQuotedStringValueCharacter ::= [^"\] | '\"' | '\\'

  34. numberValue ::= '-'? digits ('.' digits)? ([eE] [+-]? digits)?

  35. booleanValue ::= 'true' | 'false'

  36. richTextValue ::= '[>' richText '<]'

  37. listValue ::= '[' annotationValue ( ',' ' '? annotationValue )* ']'

  38. objectValue ::= '{' annotation+ '}'

  39. digits ::= [0-9]+

  40. nameCharacter ::= [a-zA-Z] | digits | '_'

Each grammar rule is expressed as a line that reads lefthand ::= righthand, where the lefthand consists of a template name, starting with document. The righthand of a grammar rule consists of characters or references to other templates. The righthand incorporates the same repetition indicators as regular expression syntax and Relax NG compact syntax. Specifically, ? means that the preceding pattern is optional (occurs zero or one time), * means that the preceding pattern is optional and repeatable (occurs zero or more times), and + means that the preceding pattern is required and repeatable (occurs one or more times). The absence of a repetition indicator means that the pattern is required and not repeatable (occurs exactly once). For example:

  • Rule 1 specifies that a TAGML document consists of an optional documentHeader followed by zero or more instances of richText. The fact that the documentHeader is optional is specified by the ? after the template name. The fact that richText appears zero or more times after the document header is specified by the *.

  • In the same way, Rule 2 states that the documentHeader consists of zero or more namespace definitions (that is, zero or more instances of whatever is represented by the namespaceDefinition template).

  • Rule 3 introduces the ' character to the grammar. Everything between paired quotes (a pair of single quotes ' or a pair of double quotes ") should appear in literal form in a file that conforms to the grammar. Rule 3 states that a namespace definition consists of the four-character string [!ns (the fourth character is a space character), followed by an identifier for the namespace, followed by a space character, followed by a namespace URI, followed by the one-character string ].

  • In Rule 4 the + symbol, mentioned above, appears for the first time in this grammar, signifying that the preceding pattern is required and repeatable (occurs one or more times). This means that a namespaceIdentifier consists of one or more nameCharacters (defined in Rule 29).

  • Rules 5 and 6 introduce the reserved symbols (, ), and |. ( and ) define a group. The | symbol means or; for example, a | b means a or b. Hence, Rule 6 states that textEnrichtment consists of a choice among whatever is represented by the templates markupStartTag, markupEndTag, markupMilestone, textVariation, and comment, and the choice (the same choice or a different choice) may be made zero or more times.

  • In Rules 8, 39, 40 the special symbols [, ], and - are introduced. [ and ] are used to delimit character classes, similarly to their use in regular expression syntax. In Rule 8 the [ and ] symbols are used without the - symbol, but with the new ^ symbol. ^ at the beginning of a character class, as in regular expression syntax, means negation. Here the textCharacter character class in TAGML is defined as every character except [, <, and \. Rule 39 states that a digit in TAGML consists of a Unicode character in the range of 0 through 9 and that digits is defined as one or more digit characters. The same pattern is used in Rule 40 to specify that a name character is either a lowercase letter between a and z or an uppercase letter between A and Z.

  • Rule 9 makes use of grouping functionally to specify that a markupStartTag consists of a literal square bracket followed by an optional optional or resume character followed by a required tagIdentifier followed by zero or more annotations. Every annotation is prefixed by a space character.

  • Rule 10 states that a markupEndTag starts with a left angle bracket, followed by an optional optional or suspend, followed by a tagIdentifier, and then a square bracket.

Workflow

This section describes the workflow of dealing with a network of information in a step-by-step manner. As noted, documents with TAG markup (that is, with multiple overlapping markup layers) are, at least potentially, too complex to see and edit in their entirety. In order for the (end) user to work effectively with TAG documents in Alexandria, we therefore propose a workflow comparable to the Git source code management and repository system.

The basic concept is as follows: the complete TAG model for each document (which we refer to as the TAGML master file) is stored in a directory that is hidden from the end user. Just as in Git, users can check out a version of the TAGML file containing a selected set of markup layers. They can subsequently edit this version, and then commit the file to the repository, where it is merged with the master.

Throughout this section we will predominantly use examples from the text of the manuscripts of Prometheus unbound by Percy Bysshe Shelley. To be sure, literary manuscripts and comparable historical documents provide a grateful, inexhaustible source of complex textual phenomena that continue to challenge the fields of digital text modeling and computational philology. However, as noted above, TAG offers a model of text whose potential uses surpass these, admittedly niche, fields and can be extended to practically any type of text.

Folium 23r, Prometheus unbound

png image ../../../vol21/graphics/HaentjensDekker01/HaentjensDekker01-003.png

Digital facsimile of f.23r from Prometheus unbound (source: http://shelleygodwinarchive.org/sc/oxford/prometheus_unbound/act/i/#/p9)

Interacting with Alexandria

Working with multiple views in a Git-like manner requires a number of tools, including:

  • A tool to init the workspace.

  • A tool to register a document with a master file.

  • A tool to define a view on a document, determining which tags should be visible in the document and which are to be filtered out. This may be positive or negative filtering.

  • A tool to check out a view of a document. The first time an identifier (name) and a view definition are specified, a file instantiating that view is created in the user’s workspace.

  • A tool to check in an edited view of a document. After editing a view, the user needs to check in the view to commit the changes.

  • A tool to diff markup files, that is, to check the edits the user made and show a comparison between the original and the edited view.

In practice, the workflow for interacting with a TAG document using the Alexandria TAG repository may look as follows:[9]

  1. $ alexandria init

  2. $ alexandria register-document --name <name document> --file <filename tagml master file>

  3. $ alexandria define-view --name <name view> --file <view definition as json file>

  4. $ alexandria checkout --document <name document> --view <name view>

  5. The user edits the view on <name document> in an editor of their choice.

  6. $ alexandria diff <filename view>
    (optionally, the user diffs the edited view with the master file)

  7. $ alexandria commit <filename view>
    (The user commits the view on <name document> to the repository, an action that merges the edit view with the TAG master <name document>.)

  8. The edits are now committed to TAG master.

This workflow is similar to the one described for concurrent XML in Iacob and Dekhtyar 2003 and Dekhtyar and Iacob 2005; see also their Iacob and Dekhtyar 2005. Concurrent XML, however, refers to multiple markup layers over a common text layer, while the TAG workflow permits editing the textual content of a view, and not only the markup.

In principle, the user never interacts directly with the master file TAG. In the process of checking out a version of the master file, the user specifies which layers of markup to expose and which to conceal. The TAG document with the markup layers that they check out is referred to as a view. A view thus represents one or more layers of markup. It is a part of the entire TAG hypergraph in the repository, rendered in a human-readable format.

Views and layers

Because the concepts of view and layer are central to this workflow, it is helpful to revisit the difference between a layer and a view.

As described in Layers, a layer is a grouped set of markup and annotations. A view is a selection from among all available layers. Turning off (that is, not checking out) certain markup does not mean that the text to which the markup points is ignored, but it is then possible to choose only certain paths (e.g., in case of text with and without deletions and additions or with diverging paths for original and regularized versions of the same textual moments).

The reasons for grouping a set of markup and annotations may vary. In the paragraphs below we identify three scenarios: first, a layer as representation of a research perspective on text; second, a layer identifying user edits; third, a layer as a resolution to local overlap. The textual fragment from Prometheus Unbound is used as illustration.

For reasons of clarity our example sentences are short and simple, but in practice the master TAG document can be as large as needed, and may thus become highly complex. Here, we focus on the speech of the second voice from the Springs, which runs over two folium pages, as Figure 4 and Figure 5 show.

Figure 4

png image ../../../vol21/graphics/HaentjensDekker01/HaentjensDekker01-004.png

Selection of MS-e1-21v (source: Shelley-Godwin Archive, http://shelleygodwinarchive.org/sc/oxford/prometheus_unbound/act/i/#/p7).

Figure 5

png image ../../../vol21/graphics/HaentjensDekker01/HaentjensDekker01-005.png

Selection of MS-e1-22v (source: Shelley-Godwin Archive, http://shelleygodwinarchive.org/sc/oxford/prometheus_unbound/act/i/#/p8).

Layers as research perspective

Let us assume that User A (Albert) wants to focus on the poetic structure of this text, while User B (Bertina) is interested in the text as it interacts with the materiality of the manuscript. In other words, Albert and Bertina have different textual perspectives, informed by their research interests.

Albert creates a first TAGML transcription:

[poem>
[sp>
[speaker>2d. Voice from the Mountains<speaker]
[stanza rhyme="abac">
[lg type="quatrain">
[l>Thunderbolts had parched our [w rhyme="a">water<w]<l]
[l>We had been stained with bitter [w rhyme="b">blood<w]<l]
[l>And had ran mute ’mid shrieks of [w rhyme="a">slaugter<w]<l]
[l>Thro’ a city & a [w rhyme="c">solitude<w]<l]
<lg]
<sp]
<stanza]
<poem]

Albert subsequently prepares the Alexandria repository and uploads his transcription, which he saves under MS-e1-21v-22v.tagml:

1. albert$ alexandria init
2. albert$ alexandria register-document --file MS-e1-21v-22v.tagml --name MS-e1-21v-22v

MS-e1-21v-22v.tagml is the TAG master file. Bertina now wants to work on the same fragment, but as the poetic features of the text are not relevant for her research, she defines a view that contains only a selection of the markup in the master file: the elements [l><l] and [speaker><speaker].[10] Bertina subsequently checks out the view.

3. bertina$ alexandria define-view --name material-view  --file material-view.json
4. bertina$ alexandria checkout --view material-view --document MS-e1-21v-22v

This will export the view of document MS-e1-21v-22v using view definition material-view to a new TAG document MS-e1-21v-22v-material-view.tagml, which contains one layer of markup:

[l>2d. Voice from the Springs<l]
[l>Thunderbolts had parched our water<l]
[l>We had been stained with bitter blood<l]
[l>And had ran mute 'mid shrieks of slaugter<l]
[l>Thro’ a city & a solitude<l]

Bertina edits this view, using the structure indicated by Albert, but she changes the [l><l] and [speaker><speaker] elements to [line><line] elements, and adds further information about the physical features of the manuscript. She creates the following TAGML transcription:

[page n="21v">
[p>
[line rend="indent2">2d. Voice from the Springs<line]
[line>Thunderbolts had parched our water<line]
[line rend="indent2">We had been stained with bitter blood<line]
<page]
[page n="22v">
[line>And had ran mute <|[del>thro<del]|[add>'mid<add]|> shrieks of <|[sic>slaugter<sic]|[corr>slaughter<corr]|> laughter<line]
[line rend="indent2">Thro' a city & a solitude!<line]
<p]
<page]

After editing MS-e1-21v-22v-material-view.tagml, Bertina commits her view and it is merged with the master TAG document, which now contains several markup layers representing a poetic and a material view on the text. We can use layers to identify which Markup elements belong to which perspective. The first sentence of the TAGML master file would then look as follows:

[line rend="indent2"|material>[speaker|poetic>2d. Voice from the Springs<speaker|poetic]<line|material]

Layers as user identification

In addition to indicating perspectives, layers can also be used to identify (sets of) user edits. It is worthwhile to take a closer look at how a view is merged with the master file. Technically speaking, the process of merging the edited view with the entire TAG document model is supported through an extended diff algorithm that recognizes markup as well as text. Hence the input of the diff is two streams, of the original view and of the edited view, each containing markup tokens and text tokens.

Besides detecting edit operations on textual content, the diff algorithm of Alexandria is able to detect joins and splits for markup elements. This feature ensures that TAG/Alexandria can process both textual and structural edits. We define five edit operations on text and markup: deletion, addition, replacement, split, and join.

Let us reconsider the editorial workflow of Albert and Bertina outlined above. In this scenario, there are two possibilities: either Bertina’s changes regarding to the [line><line] element are considered as replacing Albert’s [l><l] and [speaker><speaker] elements, or they are considered as additional markup.

The split operation is illustrated by the following example (a simplified transcript of the text above), in which user C (Claire) has transcribed the text as one sentence and user D (Dirk) as two sentences:

Figure 6

[s>We had been stained with bitter blood And had ran mute 'mid shrieks of slaughter<s]

Claire’s transcription

Figure 7

[s>We had been stained with bitter blood<s] [s>And had ran mute 'mid shrieks of slaughter<s]

Dirk’s transcription

Both sentences start with start-tag [s> and end with end-tag <s], so a simple diff algorithm would consider them a match and the two tags <s] and [s> in the middle of the sentence as an addition. However, a more accurate representation of the situation from a markup perspective would be for the algorithm to detect that the one [s><s] element in Claire’s transcription is split into two in Dirk’s transcription. In fact, because the markup start-tags know with which markup end-tags they are paired, the diff in Alexandria is able to recognize this situation as a split, and to label the markup edits accordingly.

Using layers to distinguish between Claire’s markup and Dirk’s markup edits, we would arrive at the following TAGML master file:

[s|claire>
  [s|dirk>We had been stained with bitter blood<s|dirk]
  [s|dirk>And had ran mute 'mid shrieks of slaughter<s|dirk]
<s|claire]

Layers as solution to local overlap

Last but certainly not least, layers can be used to address overlap issues. Section Layers addresses the technical and conceptual aspects of this functionality. In short, markup within a layer represents a dominance relationship, while layers that overlap represent containment. A new layer can be started at any point in the document. Markup nodes can be part of multiple layers.

Let us take a look at a simple case of overlap between a logical structure and a document structure of Claire’s and Bertina’s respective transcriptions:

Figure 8

[s>We had been stained with bitter blood And had ran mute 'mid shrieks of slaughter<s]

Claire’s linguistic transcription

Figure 9

[page>
	[line>We had been stained with bitter blood<line]
<page]
[page>
	[line>And had ran mute 'mid shrieks of <|[sic>slaugter<sic]|[corr>slaughter<corr]|><line]
<page]

Bertina’s material transcription

Merging these document would cause a conflict due to the overlapping structures. To solve these, a material and a linguistic layer are created.

Figure 10

[page|material>
	[s|linguistic>[line|material>We had been stained with bitter blood<line|material]
<page|material]
[page|material>
	[line|material>And had ran mute 'mid shrieks of <|[sic|material>slaugter<sic|material]|[corr|material>slaughter<corr|material]|><line|material]<s|linguistic]
<page|material]

TAGML master file of Claire’s and Bertina’s transcriptions

Within each layer the markup elements have a relationship of dominance, but between the layers is a relationship of containment. For instance, the [page> element contains the [s> element, but does not dominate it. Although in this simple example the layers start at the beginning of the transcription, a new layer can be started at any point in the document and markup nodes can be part of multiple layers.

Discussion

Taken together, the features of TAG and TAGML offer users a powerful model for expressing their interpretation of the structural properties of text and document, resulting in a TAG document that reflects a rich, nuanced, and explicit model of text. In order to fully grasp the implications of TAGML, it is important to consider that all forms of text modeling involve at least three components:

  • A source text, e.g., a facsimile of a historical manuscript, a document from the publishing industry, a newspaper article, a judicial text, etc.

  • A transcription of the source text

  • A model of the source text (in TAG, the hypergraph document)

These components (source, transcription, and model) are shared by many methods of text modeling, and the significance and value of TAG lies in the interaction of and the relationships among these components. The TAGML markup language gives users the opportunity to record and model in a transcription a wide variety of textual aspects from and information about the source text; the hypergraph model as implemented in Alexandria processes and stores the TAG documents; and, furthermore, the Alexandria implementation of TAG allows the user community to interact intuitively with the texts by using views. The following paragraphs summarize three main features of TAGML as described in this article: the nature of TAGML files and how they affect text modeling approaches; the separation of responsibilities between syntax and schema; and, finally, implications for the workflow of modeling and editing textual objects.

TAGML files

TAGML documents are inherently multi-layered and non-linear, and can best be represented by combining ordered and unordered information. This conceptual understanding of text is reflected in the syntax of TAGML: textual features such as non-linearity and discontinuity can easily be expressed; annotations can be nested within other annotations; annotation values can contain both text and markup (cf. Rich text annotations). Together with the data typing feature of TAGML, the recursivity of Rich text allows for explicit modeling of many textual features. Layers remove boundaries by allowing for overlap and the modeling of dominance and containment without the need for a schema, all of which facilitates the mapping of semantic information to the Text nodes in the hypergraph model.

Complete semantic mapping and querying would also require TAG to map semantic information to the properties of nested annotations. JSON-LD, for instance, provides a notation for linking the properties of JSON objects to ontologies. A similar feature will be part of the future development of TAG and TAGML.

Syntax and schema

Designing a new markup language means deciding which functionality to put into the syntax which responsibilities to put into the schema. Initially we tried to include only non-linear aspects of the text, such as containment, into the syntax, while making information about dominance explicit in the schema. When the syntax allows for arbitrary overlap, however, it is no longer possible for a parser to consistently extract a hierarchical structure from the data, which means that many use cases would require a schema. In the end we decided on the use of the layer mechanism in the syntax to allow the user to explicitly model containment and dominance relations without the need for a schema, while allowing for overlap. The syntax contains basic data types, such as String, Lists and nested annotations. The schema is used to make explicit any information about complex data types, such as persons, dates, and significant whitespace.

TAGML agrees in certain respects with other markup languages, much as the TAG model corresponds to some extent to other text models. Many textual aspects discussed in this paper can be modeled in, for instance, an XML-transcription with an associated schema and application-level rules. TAGML, however, moves much of that responsibility to the syntax by having explict encoding mechanisms for containment, dominance, discontinuity, non-linearity, and overlap, with the goal of removing ambiguity from the application level. Accordingly, TAGML brings together and expands on qualities of existing formats, and creates an inclusive and definite framework for modeling textual and structural information.

Users, views, and Alexandria

The TAG and TAGML division of labor requires the active engagement of the user, who needs to think in great detail about the informational structures and elements in the text, and about how these are best represented so that the modeling of a textual object conforms to the developer’s conceptual understanding of it. In principle, we regard this increased textual consciousness as a positive feature. In a similar way, the TAG repository Alexandria compels its users to make explicit their views on text.

Alexandria is designed to accommodate complex and information-rich TAG documents, while at the same time exposing an intuitive and straightforward method of interacting with that information. While understanding text as a graph may not be straightforward, especially for those who are accustomed to modeling text as a mono-hierarchical ordered tree (that is, in XML), the idea of adding layers of information to a text appears to be intuitive. Alexandria, then, accommodates a theoretically unlimited number of informational layers on a text, using views to allow users to query this information and to add and edit new layers.

The editorial workflow of Alexandria has a number of implications, in particular with regard to the diff and the merge functionalities and the command line tool. The first of these involves Alexandria’s diff and merge functionalities. In the Workflow we clarify our decision to keep both layers of markup, instead of considering the edit operations in the markup layer (e.g., from l to line) as replacements (a deletion of the l layer and an addition of the line layer). We reason that it is undesirable to have Bertina’s changes overwrite Albert’s markup, and propose to store both layers of markup in different layers that identify the two users.[11]

An open question, however, is whether changes in the textual content should be treated in the same way. For example, if Bertina were to alter some text characters, should the master file adopt her changes as replacements for Albert’s, or as alternatives? The first option implies that the text from Albert’s view will be lost, while the second option implies that the Albert’s text and Bertina’s text will be stored in the TAG master file as textual variation. Since both options are supported by Alexandria, the question is philosophical, rather than technical.

As for our decision to have users work on the command line instead of providing a Graphical User Interface to interact with Alexandria: we recognize the wide variety of editor software that exists within text editing communities, as well as the fact that many users work with a preferred editor whose interface they are familiar with and appreciate. For that reason, our goal for interacting editorially with TAG documents has been not to develop a custom TAG editor, but to ensure that TAG works with any editor. This allows users to engage with the results of individual decisions about layers and views in the generic programming editor of their choice.

Conclusion

When starting with the development of a new markup language, it may feel most natural to be open-minded and maximalist: everything should be possible, and the more freedom, the better. As the consequences of that freedom become clearer, one may become more conservative, adding constraints. Texts with markup need to be processed and queried, and the more freedom the markup permits, the more difficult the processing and querying becomes. A reasonable goal is to strike a balance between supporting expression, which may tend toward openness, and facilitating processing, which may tend toward constraint.

This report has introduced three new aspects of the Text As Graph project, involving markup, model, and workflow. With respect to markup, the TAGML markup language is designed to represent syntactically the TAG data model. With respect to the model, the revised TAG data model replaces the directed Text-to-Text edges of Haentjens Dekker and Birnbaum 2017 with undirected Text-Text edges, instead using hierarchical rank (distance in path steps from the Document node) to model order. With respect to workflow, the TAG workflow, implemented in Alexandria, borrows concepts from earlier proposals for editing concurrent XML, while also permitting concurrent variation in text, and not only in markup, With respect to future work, TAG does not yet have a fully functional schema language or a fully functional query language, although both are under early development.[12]

Appendix A. The TAG model

The TAG data model in this report combines the multi-layered data model presented at Balisage 2017 with the nonlinear data model presented at XML Prague 2018. It is a cyclic non-uniform property hypergraph model for text. The hypergraph model consists of a set of vertices (or nodes) and a set of hyperedges that connect two or more nodes with one another. The following key concepts merit specific attention:

  • Cyclic. The TAG hypergraph is cyclic. As we describe under Edges, all edges in the hypergraph are undirected, which, together with the Convergence Nodes (explained in Text nodes), produces a cyclic graph. Traditionally, cyclic graphs have been considered problematic for traversal, but the hypergraph for text is a rooted graph. This means that traversing from and to the root is not difficult, and can be effectuated without falling into cycles as long as each traversal proceeds consistently in one direction (toward or away from the root).

  • Non-uniform. The edges of the kind of graphs we are most familiar with (e.g., tree, acyclic graph, RDF) connect two nodes with each other, and we therefore say the edges have a cardinality of 2. A hyperedge, in contrast, connects an arbitrary set of nodes. As the hyperedges in the TAG data model do not have a fixed number of nodes, we say the graph is non-uniform.

  • Property. We refer to the TAG hypergraph as a property graph because properties are stored on the nodes and edges.

  • Typed. Nodes are typed, which means that they have a type property.

Text in a TAG document is fully connected, rooted, and undirected. By fully connected we mean that there is a path to all Text nodes from the Document node (see the discussion of node types, below).[13] By rooted we mean that the text has an obligatory single start point, represented by the Document node. By undirected we mean that the consecutive Text nodes are connected to each other by undirected edges, that is, edges that do not distinguish a head and tail (source and target). The relative logical order of Text nodes is represented by rank, that is, by the number of path steps between the Document node and a Text node. By defining the relative position of Text nodes in terms of ancestors (Text nodes of lower rank, closer to the Document node) and descendants (text nodes of higher rank, farther from the Document node), we use hierarchical rank to represent the order of Text nodes without employing directed edges.[14]

Consider the following illustration of the physical layout of a poetic text on a page:[15]

[page n="21v" dimensions={width=12 height=30}>
[line rend="indent2">1[hi rend="sup">st<hi]. Voice from the Mountains<line]
[line>Thrice three hundred thousand years<line]
<page]

Figure 11

png image ../../../vol21/graphics/HaentjensDekker01/HaentjensDekker01-006.png

Sample visualisation of the hypergraph model of the fragment from Prometheus unbound given above.

Nodes

There are four types of node, each with different requirements and constraints. These are discussed schematically below.

Document nodes

  • Description. Every Document node represents a single document in the hypergraph and serves as a root node. There can be multiple documents in a hypergraph, in which case each document constitutes a connected subhypergraph, where connected means that there is a path from every node to every other node of the subhypergraph. Nodes from one subgraph cannot be connected to nodes from another subgraph.

  • Properties. Every Document node has a unique name. Every document stores information about its creation and modification(s).

  • Constraints. Every Document node must be connected to (have a path to) at least one Text node. The Text node may be empty.

Text nodes

  • Description. A Text node represents (a part of) the textual content of the document. Whitespace, if present, is included in the textual content. Text nodes must be as long as possible. Text nodes may be empty, i.e., have no textual content. We identify two cases of empty Text nodes:

    1. Empty Text nodes are used to store milestone Markup nodes, e.g., in case of images or marginalia in the source text. These milestones must have a Markup-Text hyperedge (cf. Markup-text undirected hyperedge).

    2. In case of (intradocumentary) textual variation we have two extra nodes to encode the variation. (cf. Text convergence node and Text divergence node).

  • Properties. A Text node has a content property of type String, which stores the textual content of a segment.

  • Constraints. Each Text node is part of exactly one document. In HyperCollate a Text node can be part of multiple documents (cf. Bleeker et al. 2018a, Bleeker et al. 2018b). All the Text nodes have to be connected. Text nodes can have multiple hyperedges with markup on them.

Two subtypes of Text nodes are Text divergence and Text convergence nodes:

Text divergence nodes
  • Description. Text divergence nodes are a subtype of Text node, without content. Text divergence nodes are one of two exceptions to the constraint that a Text node has two edges.

  • Properties. none

  • Constraints. All text divergence nodes have 1 edge connecting an ancestor, which is either a Document node or a Text node, and multiple (n>1) edges to Text nodes as descendants.

Text convergence nodes
  • Description. Text convergence nodes are a subtype of Text node, without content. Text convergence nodes are the other exception to the constraint that a Text node has two edges.

  • Properties: none

  • Constraints: All text convergence nodes have multiple (n>1) edges connecting Text nodes as ancestors, and 1 edge connecting a Text node as descendant (or 0, if the Text convergence node is the last node in the text).

Markup nodes

  • Description. A Markup node stores the name of the markup.

  • Properties. Markup nodes have the following three properties:

    1. A required tag property of type String, which stores the name of the tag.

    2. An optional namespace property of type String with the name of the namespace within which the tag is defined.

    3. An optional identifier property of type String, which uniquely identifies this instance of markup with this tag. This is a special type of annotation, used for linking.

  • Constraints. All Markup nodes have to be connected to one or more Text nodes. Markup nodes can only have one Markup-to-Text hyperedge. Markup nodes can have zero or more Annotation nodes on them.

Annotation nodes

  • Description. An Annotation node stores a property as a key:value pair.

    Properties: Annotation nodes have two properties:

    1. The propertyname property, of type String, stores the name of the property and acts as the key of the key:value pair.

    2. The propertyvalue property stores the value of the key-value pair. The value can be one of the following types: String, Number (default Float, unless specified otherwise in the schema), Array, Rich text, or Nested annotation. A value of type Array must contain values of the same type, and an array of Rich text is not allowed, which means that valid array types are String, Number, Array or Nested annotation.

    Constraints: An Annotation must be connected to a Markup node or an Annotation node. An Annotation node may be connected to more than one Annotation node in case of nested annotations (Data typing) represented by a { } in TAGML. The name of the property needs to be unique among its siblings, i.e., two properties with the same name are not permitted on the same level in the annotation hierachy of a Markup node.

Node types, properties, and constraints

Table I

Nodes

Description Properties Constraints
Document node
  • Represents one single document in the Hypergraph

  • Is a root node

  • name: document name

  • type: String

  • meaning: identifies a document in the hypergraph

  • Must point to only the first Text node of the document

  • name: creation date

  • type: Date

  • meaning: info about creation date

  • name: modification date

  • type: Date

  • meaning: info about last modification date

Text node
  • Can have multiple hyperedges with markup

  • May be empty

  • Includes whitespace

  • name: content

  • type: String

  • meaning: stores the content of a (part of) a document

  • Part of exactly one Document node

  • All Text nodes are connected through undirected edges, one from the ancestor and one to the descendant

Text divergence node
  • Represents diverging paths in the case of intradocumentary variation

  • No properties

  • Multiple edges connecting two or more Text nodes as descendants (which could also be a Text divergence or a Text convergence node)

Text convergence node
  • Represents converging paths in the case of intradocumentary variation

  • No properties

  • Multiple edges connecting two or more Text nodes as ancestors (this could also be a Text divergence node or a Text convergence node)

Markup node
  • Connected to one or more Text nodes

  • Has zero or more Annotation nodes

  • name: tag

  • type: String

  • meaning: stores name of the tag

  • There must be exactly one Markup-Text hyperedge for each Markup node

  • name: namespace

  • type: String

  • meaning: stores name of the namespace that contains the tag

  • name: identifier

  • type: String

  • meaning: identifies markup instance with the corresponding tag

Annotation node
  • Connected to a Markup node or an Annotation node

  • May be connected to one or more Annotation nodes (in case of nested annotations)

  • name: propertyname

  • type: String

  • meaning: stores name of property

  • A property value cannot have an array of Rich text annotations.

  • A property value cannot have an array of items of mixed type

  • name: propertyvalue

  • type: String; Number (Int and Float); Array; Rich text (pointing to first Text node of new Annotation node); Nested annotaton.

  • meaning: value of annotation property

Edges

We identify six types of edges:

Document-Text undirected edges

A Document-Text edge associates a Document node with its first Text node in a one-to-one relationship. Every Document node can only have one first Text node. In Alexandria a Text node can belong to only one Document.

Text-Text undirected edges

Text-Text edges encode the flow of the text. The start of the hierarchy is indicated by the Document-Text edge, which connects the Document node to the first Text Node. In case of intradocumentary textual variation, the Text divergence and Text convergence nodes can have multiple ancestor or descendant Text-Text edges (see Text divergence node and Text convergence node. Text-Text edges form a hierarchy of Text nodes that is partially ordered, and may connect a Text node only to its immediate ancestor or descendant in order.

Markup-Text undirected hyperedges

Markup-Text hyperedges associate markup with its textual content.

Annotation-Markup multiple undirected edges

There can be multiple Annotations on a Markup node, but each Annotation node can be associated with only one Markup node. This relationship can be understood as a tree: the Markup node is the root of the tree and the Annotation nodes are its children.

Annotation-Annotation multiple undirected edges

Annotation-Annotation edges are used for nested annotations in TAGML (Data typing). The Markup node and the annotations form a rooted tree with the Markup node as root.

Annotation-Text undirected edges

Annotation values can be of Rich text format (cf. Rich text annotations). If the annotation is of type Rich text, the value is a new inner document. Because Rich text content can itself contain markup with annotations on it, this is a recursive feature.

Edge types, constraints

Table II

Edges

Description Relationship Constraints
Document-Text edge

Associates Document node with its first Text node

Undirected edge

Alexandria: a Text node can be part of exactly one Document

HyperCollate: a Text node can be part of multiple Documents

Text-Text edge

Encodes the flow of the text by forming a partially ordered hierarchy of Text nodes

Undirected edge

If a Text node has two Text-Text edges, one must be connected to a Text node of higher rank (a descendant) and the other to a Text node of lower rank (an ancestor).

Markup-Text edge

Associates markup with textual content

Undirected hyperedge

Markup-Text hyperedges must have exactly one Markup Node

Markup-Annotation edge

Associates a Markup node with an Annotation node and vice versa

Undirected edge

One Markup node may have multiple Annotation nodes, but an Annotation node cannot connect to more than one Markup node

Annotation-Annotation edge

Represents a nested annotation

Undirected edge

Each Annotation node is connected to exactly one ancestor, either a Markup node or an Annotation node in case of nested annotations. An Annotation node can be connected to multiple Annotation nodes as descendants.
Annotation-Text edge

Associates an annotation with the textual content of an annotation (= Rich text)

Undirected edge

Rich text is not allowed in a List

References

[Alexandria] Alexandria. https://github.com/HuygensING/alexandria-markup; Information about installing and using the Alexandria command line app is available at links on the TAG portal at https://github.com/HuygensING/TAG.

[Barrellon et al. 2017] Barrellon, Vincent, Pierre-Edouard Portier, Sylvie Calabretto, and Olivier Ferret. “Linear extended annotation graphs.” In Proceedings of ACM Document Engineering, Malta, September 2017 (DocEng2017), 10 pages. doi:https://doi.org/10.1145/3103010.3103011 . http://liris.cnrs.fr/pierre-edouard.portier/publications/2017_BARRELLON_PORTIER_DocEng_linear_extended_annotation_graphs.pdf

[Birnbaum 2007] Sometimes a table is only a table: And sometimes a row is a column. Proceedings of Extreme Markup Languages 2007. http://conferences.idealliance.org/extreme/html/2007/Birnbaum01/EML2007Birnbaum01.html

[Bleeker et al. 2018a] Bleeker, Elli, Bram Buitendijk, Ronald Haentjens Dekker, and Astrid Kulsdom. Including XML markup in the automated collation of literary texts. Presented at XML Prague 2018, Prague, Czech Republic, February 8–10, 2018. In XML Prague 2018 - Conference Proceedings, pp. 77–95. http://archive.xmlprague.cz/2018/files/xmlprague-2018-proceedings.pdf

[Bleeker et al. 2018b] Bleeker, Elli, Bram Buitendijk, Gijsjan Brouwer, and Ronald Haentjens Dekker. From graveyard to graph. Reappraising textual collation in a digital paradigm. Accepted for publication in Digital Scholar, 2018.

[Dekhtyar and Iacob 2005] Dekhtyar, Alex and Ionut Emil Iacob. A framework For management of concurrent XML Markup. Data and knowledge engineering, Vol. 52, No. 2, pp. 185–215. doi:https://doi.org/10.1016/j.datak.2004.05.005. http://users.csc.calpoly.edu/~dekhtyar/publications/dke04.ps

[Dillen 2015] Dillen, Wout. Digital scholarly editing for the genetic orientation: the making of a genetic edition of Samuel Beckett’s works. Ph.D. thesis, University of Antwerp. 2015.

[Git] Git distributed version control system. https://git-scm.com/

[Haentjens Dekker and Birnbaum 2017] Haentjens Dekker, Ronald and David J. Birnbaum. It’s more than just overlap: Text As Graph. Presented at Balisage: The Markup Conference 2017, Washington, DC, August 1–4, 2017. In Proceedings of Balisage: The Markup Conference 2017. Balisage Series on Markup Technologies, vol. 19 (2017). doi:https://doi.org/10.4242/BalisageVol19.Dekker01. https://www.balisage.net/Proceedings/vol19/html/Dekker01/BalisageVol19-Dekker01.html

[Hilbert et al. 2005] Hilbert, Mirco, Oliver Schonefeld, and Andreas Witt. Making CONCUR work. Presented at Extreme Markup Languages 2005 (Montréal, Québec). http://conferences.idealliance.org/extreme/html/2005/Witt01/EML2005Witt01.xml

[Huitfeldt and Sperberg-McQueen 2003] Huitfeldt, Claus and C. Michael Sperberg-McQueen. TexMECS. An experimental markup meta-language for complex documents. Revision of 5 October 2003. http://mlcd.blackmesatech.com/mlcd/2003/Papers/texmecs.html

[Iacob and Dekhtyar 2003] Iacob, Ionut E. and Alex Dekhtyar. A framework for management of concurrent XML markup. XML Schema and Data Management ’03. http://users.csc.calpoly.edu/%7Edekhtyar/publications/xsdm03.concurrent.pdf

[Iacob and Dekhtyar 2005] Iacob, Ionut E. and Alex Dekhtyar. Towards a query language for multihierarchical XML: revisiting XPath. Eighth International Workshop on the Web and Databases (WebDB 2005), June 16–17, 2005, Baltimore, Maryland, USA. http://users.csc.calpoly.edu/%7Edekhtyar/publications/webdb05.pdf

[Jagadish et al. 2004] Jagadish, H. V., L. V. S. Lakshmanan, M. Scannapieco, D. Srivastava, and N. Wiwatwattana. Colorful XML: one hierarchy isn’t enough. SIGMOD 2004 June 13–18, 2004, Paris, France. 251-62. doi:https://doi.org/10.1145/1007568.1007598. https://www.researchgate.net/publication/200034469_Colorful_XML_One_Hierarchy_isn%27t_enough

[Kay 2013] Kay, Michael. The FtanML markup language. Presented at Balisage: The Markup Conference 2013, Montréal, Canada, August 6–9, 2013. In Proceedings of Balisage: The Markup Conference 2013. Balisage Series on Markup Technologies, vol. 10 (2013). doi:https://doi.org/10.4242/BalisageVol10.Kay01. https://www.balisage.net/Proceedings/vol10/html/Kay01/BalisageVol10-Kay01.html

[Introducing JSON] Introducing JSON. http://www.json.org/

[Peroni et al. 2014] Peroni, Silvio, Francesco Poggi and Fabio Vitali. Overlapproaches in documents: a definitive classification (in OWL, 2!). Presented at Balisage: The Markup Conference 2014, Washington, DC, August 5–8, 2014. In Proceedings of Balisage: The Markup Conference 2014. Balisage Series on Markup Technologies, 13 (2014). doi:https://doi.org/10.4242/BalisageVol13.Peroni01. https://www.balisage.net/Proceedings/vol13/html/Peroni01/BalisageVol13-Peroni01.html

[Piez 2008] Piez, Wendell. LMNL in miniature. An introduction. Amsterdam Goddag Workshop, 1–5 December 2008. http://piez.org/wendell/LMNL/Amsterdam2008/presentation-slides.html

[Sahle 2013] Sahle, Patrick. Catalog of digital scholarly editions. Version 3.0, snapshot 2008ff. Last updated March 22, 2017. http://www.digitale-edition.de

[Sperberg-McQueen 2007] Sperberg-McQueen, C. M. Representation of overlapping structures. Presented at Extreme Markup Languages 2007 (Montréal, Québec). http://conferences.idealliance.org/extreme/html/2007/SperbergMcQueen01/EML2007SperbergMcQueen01.html

[Tennison 2008] Tennison, Jeni. Overlap, containment and dominance. Jeni’s musings, 2008-12-06. http://www.jenitennison.com/2008/12/06/overlap-containment-and-dominance.html

[War on attributes] Wittern, Christian, Arianna Ciula, and Conal Tuohy. The making of TEI P5. Literary and linguistic computing, vol. 24, no. 3 (2009), pp. 281–96. doi:https://doi.org/10.1093/llc/fqp017 http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.851.6408&rep=rep1&type=pdf



[1] Historians of the TEI will recognize this issue as the origin of the war on attributes. (War on attributes, 283)

[2] We discuss these concepts in the Hierarchy, containment and dominance section of Haentjens Dekker and Birnbaum 2017. See also Tennison 2008.

[4] That while is a replacement for white is an interpretation. At least in principle, a writer might complete a sentence and then cross out a word that feels unnecessary, a situation where the word following the excision may function as stable text in any reading, and not as a replacement or alternative for the deletion.

[5] The terminology [data-centric vs document-centric] is unfortunate, since running narrative prose and mixed content models are no less data than records and fields and a data-centric document is, as the name implies, also a document. A more useful distinction might be between narrative prose and databases or between mixed content and element content (or between otherwise different types of content models), rather than between documents and data. (Birnbaum 2007)

[6] Data types are expressed lexically (e.g., values like true or false are of type Boolean) or distinguished by markup punctuation (e.g., bare digits are of type Number, items [including digits] inside quotation marks are of type String, etc.).

[7] Our discussion of overlap is indebted to Sperberg-McQueen 2007

[8] Currently Alexandria understands pointers only to a single :id value and only within the same TAG document (similar to xsd:IDREF). It is intended that pointing to multiple :id values (similarly to xsd:IDREFS) and to :id values in different documents will also be supported.

[9] Information about installing and using the Alexandria command line app is available at links on the TAG portal at https://github.com/HuygensING/TAG.

[10] A view definition is created in a JSON file which identifies a selection of markup elements. Clear instructions about how to do this are available at https://github.com/HuygensING/alexandria-markup-server.

[11] This means that, in the TAG master file, the markup elements l and line are stored in the same locations, but overlap is unproblematic for the TAG hypergraph model.

[12] We are grateful to the anonymous referee who reminded us that:

There are considerable down sides to inventing a new syntax. These include training/learning, paucity of extant tools, unfamiliarity, but they also include a need to reinvent. For example, there’s no obvious equivalent to xml:lang, xml:base, xml:include, ITS, XSLT, XSD, XSL-FO, CSS, XQuery.

We could extend that list, and whether it is worth the effort to try to overcome the challenges depends, among other things, on whether TAG can eventually be shown to offer benefits that justify the cost. Our focus at this point is on development, exploration, and evaluation, and not on evangelizing, but we can offer now two thoughts about the cost of uptake:
  • Ancillary technologies emerge over time, and XML (and SGML) were understood as useful before the development of many of the features listed above. New technologies may be adopted when the benefit exceeds the cost, and we are eager to continue to explore that balance in the context of TAG.

  • Our frame of reference is not individual XML technologies, but the outcome goals and functionality those technologies provide. For that reason, we are not prioritizing bespoke TAG counterparts to specific aspects of the XML ecosystem. For example, XQuery and XSLT are ways of interacting with XML, but developers may also interact with XML using general-purpose languages like Java or Python. A TAG implementation (like Alexandria) might expose an API that offloads transformation or styling or other subsequent processing onto a general programming language. For that reason, although there is, for example, an obvious need to be able to query a TAG document and to transform it into other formats, it is less obvious that the solution will resemble an architecture like the XPath / XQuery / XSLT / XSL-FO stack.

[13] Rich text annotation values function as separate subdocuments, and in their case the Annotation node takes the place of the Document node in the main text.

[14] In Haentjens Dekker and Birnbaum 2017 we described Text nodes in TAG as connected by directed edges; our revision of that earlier model to use undirected edges is motivated by a formal limitation on directed edges that permits them to describe a relationship only in one direction. A directed edge is an asymmetric relation between two adjacent vertices in a graph, represented as an arrow. In mathematical terms, an asymmetric relation is a binary relation on a set X where: For all a and b in X, if a is related to b, then b is not related to a. This means that when traversing a directed graph, if there is a directed edge from a to b, it can only be traversed from a to b, and not from b to a. See: https://en.wikipedia.org/wiki/Glossary_of_graph_theory_terms#Direction and https://en.wikipedia.org/wiki/Asymmetric_relation

[15] line markup here refers to physical lines on the page, rather than poetic lines.
