Balisage Paper: The Zettelkasten: Topic Maps, Back to the Future

1.1 Index Cards and Card Catalogs

The card index — it goes back to at least the 16th century. It blooms in the late 19th and early 20th century. Moving through the late 20th century and into the present time, much of its utility has been computerized and the physical means replaced. Yet its essence remains: slips of paper and index cards (and their computerized equivalents) still store facts, ideas, and quotations.

In German, the slip or card is sometimes called a "zettel", and a box to hold them a "zettelkasten", or in English, a "slip case" or "card case". Many ways have been devised to index and organize these cards. In this paper, we use the capitalized version "Zettelkasten" to mean a particular kind of card case with a particular way of creating and using the cards, introduced in 1968 by Niklas Luhmann, a German sociologist.

Why does anyone care about some particular variety of card index, especially in this age of computerization? Because Luhmann was exceptionally prolific and he attributed much of his success to his Zettelkasten. He even wrote of it as if it was an active research assistant, one he could have dialogs with. He wrote of discovering connections he would never have noticed on his own.

The prospect that a particular annotation scheme and a particular usage pattern could multiply one's creativity is exciting to a small but dedicated group of people. They hope to emulate Luhmann's Zettelkasten or go it one better. They want some of his creativity and productivity to rub off on them.

This paper delves into Luhmann's Zettelkasten and its workings, and why computerized versions have not lived up the their potential. A strong theoretical framework is introduced, supported by elements drawn from many disciplines, that makes clear the fundamentals needed for success. The key elements, as distilled from the framework and experience, are demonstrated by a working implementation.

Some of the topics are touched on only lightly since to go deeper would take too much space.

This work is the outcome of some 20 years experience by the author in building and using several "Zettelkasten-light" programs culminating in his current "ZK++"^[1] implementation.

Figure 2: Image of one of Luhmann's index cards

An index card. Its index number is in the upper left; a continuation link follows the text. Luhmann also used various colored inks for links inserted into the text.

1.2 Topic Maps, Index Cards, and Book Indexes

Slips of paper, then, and much of their content comes from books. Books, non-fiction ones at least, usually have back-of-the-book indexes. A book without its index stands sullen and uncooperative, resisting exploration and revisitation. But an index is a peculiar beast, with inconsistent categories and several modes of referencing. Its human user manages anyway, with experience, intuition, possibly shared semantics, and trial and error. For a fuller discussion, see the section titled "What Do The Folders Mean?" in [Passin 2003].

Computerization comes in the late 20th century, and it expects consistency, uniform classification categories, explicit semantics — not the human-oriented qualities of the standard book index.

Topic Maps (the capitalized phrase refers to the data model) was developed to model back-of-the-book indexes. The model is built around two ideas: the topic, which represents anything that can be discussed, and associations between two or more of them. Details, such as the content of those discussions, make the computerized version complicated, but the ideas are simple.

The essence of index cards and book indexes can be modeled well by a Topic Maps model.

1.3 Back to Simplicity

Many if not most computerized ZK systems are complex to use because they expose too many moving parts to the user. They tend to be carefully structured, making it hard for a user to deviate from the structure.

Even with a somewhat more flexible system, few users seem to have grasped how to use and operate a ZK to best advantage.

This paper brings back the flexible, adaptable, human-based nature of a back-of-the-book index, using the gist of Luhmann's linking ideas, the theoretical framework, and an implicit Topic Maps model. It presents design principles that can be used when creating a practical system. The paper presents a way of creating effective zettels — note cards — using a simple markup language combined with a few conventions.

Even with all the above, an effective Zettelkasten depends on a degree of craftsmanship. The system, computerized or paper-based, cannot succeed without this human aspect.

By incorporating the framework, the design principles, and the craftsmanship aspect it is possible to create a modernized Zettelkasten system that surpasses Luhmann's paper-based card case in ease of use and effectiveness.

2.1 Luhmann on his Zettelkasten

Luhmann was more forthcoming in his published writings on his ZK [Luhmann 1981], but even so he is hard to fully appreciate.

A loose ZK organization, leaving room for the unexpected, the surprising search result, is a feature not a bug:

The person is always going to be an essential component, and the structure of the ZK is going to be an important part:

A ZK must not be highly classified or ordered:

2.2 The Exciting Prospect

So Luhmann had found that his ZK acted as a partner in his research, that it worked over a long span of his productive period, and that over-organizing the contents was entirely counter-productive. Most people read these passages as saying that they could write better notes and link them according to Luhmann's examples, and that they would gain access to the notes; they would somehow by serendipity find a fount of ideas.

And who wouldn't want that? The vision has stirred many practitioners.

2.3 The Grind of Reality

In actual practice, many people who got excited about the ZK prospect ended up drifting to other note-keeping approaches. Others write up their successes — usually successes in improving their papers, books, or graduate level theses.

One rarely reads about ZK users having the experiences that Luhmann wrote of — fruitful serendipity, unexpected dialogs with the system, large creativity enhancements. Much of the writing seems to be about workflow and numbering aspects of keeping notes.

Some key part, some critical understanding, seems to be missing.

2.4 Book indexes and topic maps

Topic Maps were developed to model back-of-the book indexes. The model turned out to be fruitful beyond its original target. The heart of the Topic Map model, the topic, maps directly to a zettel, that is to say an index card or, as we will also write, a z-card. A z-card is a representation of a topic because it contains (or should contain) a subject that is the object of discourse, that can be talked about, annotated, and have related data attached to it.

Topics can be related by associations, and these connections can be instantiated by links to other cards and backlinks from them. A card's title maps to a topic's name attribute.

Topic Maps has much more machinery, such as roles and scopes, but these can be considered to be either specialized forms of associations or annotations. In this way, Topic Maps provides a principled grounding for the ZK card-and-link construction. One could create a formal Topic Map system underneath a ZK-like user interface.

It could be done, but that is not the direction of the work reported in this paper. The reasons will become clear. Yet the Topic Map model remains valuable in that it provides a clear underlying model for the z-cards and their links. The model also gives guidance for the structure of cards.

2.5 The prospect — practical knowledge management

ZK enthusiasts seem to see their ZKs as a special kind of Personal Knowledge Management (PKM) system. This is not wrong, but it is limiting, as will be seen. By applying the framework mentioned earlier, combined with examples and pieces of information theory, library science, cognitive science, Topic Maps, mind mapping, human interface, movie production practice, and more, this paper provides both understanding and guidance.

2.6 Lost in a sea of ceremony

A person engaged in fluid, creative thinking and research should not be hindered by the system. Dialog boxes, database popup dialogs, predefined or complex schemas, too many finicky details, all conspire to block the state of flow. Their irritation factor becomes more and more intolerable. More and more mistakes get made. Inspiration and unexpected associations become more rare.

Some ZK computer systems keep each note in its own separate file. This incurs latency in opening the notes, but worse, the design cannot scale to large numbers of z-cards. Luhmann's own biggest ZK contained some 90,000 index slips. Any solution must be able to scale to many tens of thousands of z-cards.

The Topic Maps model in its fullest form contains far too many structural details to be practical for a user to deal with on the fly. Even though Topic Maps provides a solid intellectual foundation for the structure of a ZK, it is necessary to bypass much of the detail, because handling the detail consumes far too much cognitive power and interferes with the flow too much.

ZK practitioners need a way to improve on Luhmann's manual, paper-based system by reducing the ceremonial or boilerplate barriers, not by adding to them.

2.7 Users in Letdown

We feel a tension here. ZK enthusiasts searching for a key to unlock their own productivity as Luhmann did; feeling let down when that didn't happen. Or for some, they got real, tangible improvements in their research or their writing, but somehow keep missing out on some extra dimension that their reading of Luhmann's accounts offered. What was it? There must be a way!

3.1 The Levels of Thinking Support

Systems that support thinking can be seen as supporting as many as five levels of activity. This 5-level framework illuminates the ways in which these systems, including the Zettelkasten, are able to assist users. It also makes clear how many users limit themselves in how they make use of the assistance.

Users operating at levels 1 - 3 are operating in an essentially linear manner. The system may be helping them get work done, good writing, for example. It may even help them find unexpected connections from time to time. This is the world of the ordinary search engine, the world that seeks both high relevance and high precision of recall with its search functions. There are many systems that help organize their users' notes into searchable collections, and many users drift from one to another.

Luhmann cautioned against letting a ZK devolve into this kind of functionality. According to him, it works against the kind of engagement that he found so valuable. The current paper claims that Luhmann was so limited by the confines of the paper-based notes that a note system could only act effectively as one or the other. With the right computerized support, the system can function on all five levels.

Deep down, Levels 1 - 3 represent competent but uninspiring support for a user. They are important in a comprehensive thought support system, but they do not usually cause users to talk as Luhmann did of his Zettelkasten experiences. This all changes with levels 4 and 5.

3.2 Levels 4 and 5 - The Heights

Once again, the higher levels:

These are the levels that Luhmann wrote about in his difficult prose. Here is the support for the results he claimed. Here is the prospect that excited new ZK users, and here is where many have felt let down. They felt let down because they didn't grasp what these levels were all about and didn't know how to (or could not) use their systems to its fullest extent.

Levels 4 and 5 provide for happening upon new connections, for ideas that pop, for new papers that ask to be written, for what Tony Buzan called "Radiant Thinking" [Buzan 1993].

The rest of Section 3 fills in the missing parts and forms a base for understanding the ways that a person can use their ZK to promote Level 4 and 5 engagement.

3.3 The Scene and the Creative Act

Caching Creativity

Have you taken notes at a meeting and been able to bring it all back into your mind five years later? The author has. He took notes in the form of mind maps. Five minutes with the mind map re-installed the meeting in his head. The mind map helped rebuild the connections in his mind and the meeting came back to life.

The meeting created a "conceptual scene", or a "cognitive stance" in the author's mind at the time. The mind map helped to rebuild it five years later. Another case of scene restoration comes from cinematic practice. When a film scene must be continued on another day, the director, the cast, and the crew must all be synced up on the physical, mental, and emotional state at the close of shooting on the previous time.

Common techniques to re-create the conceptual scene are marked-up scripts, continuity notes, rushes (roughly edited film clips), actor's marks, and lighting charts among others.

In a like way, creative activity carried over from one time to another requires a way to bring back the conceptual scene to the mind of the user. Other terms are "inflate", "reconstitute", "relight", and "rejoin the groove". Whatever the term, a person in a creative state has created a mental scene. While the scene is alive, it tends to expand itself, either by filling in more details or by sparking new ideas. The person feels more alive, and ideas pop.

Scenes fade from mind (more in Section 3.5). A Zettelkasten that can help rebuild them is a zettelkasten that provides Levels 4 and 5 support. When a creative effort is spread out over time, even from one day to the next, at every return a user needs to reconstitute his mental state as best as possible. Psychological science has a concept of "Retrieval Cues", which help to retrieve information. [McDermott and Roediger 2015] advise "The key to good retrieval is developing effective cues, ones that will lead the rememberer back to the encoded information".

We would like a Zettelkasten to prompt the retrieval of memories, yes, but a conceptual scene involves more than episodic memories. It is a state, not an individual collection of facts, and that state is complex and may be multimodal.

Simply put, a Zettelkasten should function as a scene cache.

3.4 Truth And Fiction

An Example: Stimulating Creativity

By way of illustration, the present author created an imaginary footnote in an imaginary book. Then ideas started to pop.

The work is a (fictional) review of a (fictional) novel. The footnote:

"The characters of Sally and Martin, in chapter four, keep circling each other in a curiously formal way, with modifications at every turn. It has been overlooked before, but their actions mimic very closely the courtship ritual of the peacock."

On reading this over, the (real) author discovered that he:

Here a single footnote has stimulated a surprising array of interesting notions and research directions - and even though it was imaginary, the responses were real. They came as a surprise to the author, one right after another. A well-crafted z- card in a good ZK can do the same. Of course, the user has to be receptive at that moment.

3.5 Fading

Any idea, and especially a new or complicated one, tends to fade over time. Everyone knows this. It's just as true for the intense, creative conceptual scenes that were introduced in Section 3.3. Even vivid ones fade away, leaving only relics. Later even these may fade, and one can forget their very existence.

This is not a tragedy, but a fact of life to be dealt with. These scenes, these traces of creative activity, are the most valuable of all to preserve. Notes are one common way to deal with fading, and if a ZK cannot bring something to this party, it will not be worth the effort. There is more to the anti-fade story than just note cards, text, and search.

A conceptual scene might involve a cartoon, a musical theme or fragment, an abstract painting, a painter's sketches, and so on. If the ZK can manage to include other modalities in addition to text, it can be more powerful.

3.6 Saccades

The human vision system can only view sharply a small part of the the whole field of view. The eyes jump from place to place quickly, favoring the most interesting or relevant bits, to build up the illusion that the view is sharp everywhere. These movements are called saccades.

The brain cannot keep this composite image intact for long, and parts start to fade. Saccades can refresh them. A similar phenomena takes place in working memory - the parts start to fade and need to be periodically refreshed. One needs to revisit the parts to keep them in mind. People can learn to keep more pieces in temporary memory, but there is always a limit. For example, how many sections of the outline of a technical paper can the reader remember? The author? If the paper has four main sections, these can probably be remembered, and something about each one. If it has a dozen, probably not as much can be thought about without some aid, perhaps re-reading or taking notes.

The parts kept in temporary memory can have structure, and this structure can hold more information than simple facts. These structures are often called chunks. Claims that the human brain can hold about 6 chunks in temporary memory are commonly assigned to Miller (who, however, wrote that this claim is such an oversimplification that he wished he were not associated with it) [Miller 1956].

A Zettelkasten system, then, should help and not hinder these mental saccades.

3.7 Surprise and Information

According to Shannon's information theory, a message must contain some unexpected information or it might as well not have been sent. It does not add to the recipient's information. Here a message with no content is called a null message. Filling up a ZK with null messages is pointless. Only a message that conveys a surprise is worth while, that is if we want to support Levels 4 and 5 of thinking support.

A message is more than the sum of its parts. No one part may convey much. The whole pattern of the message is needed. Likewise we will be well advised to pay attention to the patterns we create in a ZK. Niklas Luhmann wrote about his ZK talking to him, having conversations. For this to happen, we have to be able to decode the messages and they need to surprise us. A message might surprise us because we have forgotten its content; because it is vivid at a time when its trace has faded; because we are receptive in the moment and it sparks a connection.

"The ability to find valuable or agreeable things not sought for" [Merriam-Webster] is called serendipity. When these valuable or agreeable things show up as we work with our ZK, we want to be able to notice, and the way they are patterned helps make it happen.

Level 4 support promotes serendipity.

When the structure of the system emerges without being completely designed, then unexpected patterns can be exposed.

3.8 Purpose

To realize a Zettelkasten's potential, it is clear, a ZK needs to strongly support Levels 4 and 5: Expansion and Emergence. We seek to enhance discoverability, serendipity, and creativity, and to cache conceptual scenes so that the user can rebuild them later. Levels 1 - 3 are not left out, but many Personal Knowledge Management systems provide good support for them already. Here we are interested in moving beyond them, to bring back the special qualities that Niklas Luhmann wrote about. We may even be able to surpass him.

The path to this goal depends on design and implementation considerations. A variety of views into the system's information are better than one or two. There must be a minimum of ceremony and gestures so that a user's flow is not hindered. The system must be able to scale up to tens of thousands of z-cards and retain low latency. Flexibility must be built in so as to adapt as the user's concepts evolve.

A Zettelkasten system for the current era should be thought of as a cognitive instrument or a cognitive workspace, in contrast to a database with good retrieval, or to a sophisticated note repository.

But technology alone is not enough. The user must bring a degree of craftsmanship to devise effective z-cards, position them, link them productively, and to create semantic neighborhoods.

4.1 Chunking For Fun And Profit

Beyond What They Tell You

Even if a z-card is at heart a Topic Maps-style topic or association, there is more to crafting a Level 4 or 5 z-card than just making it a coherent subject of discourse.

Chunking is a well-known way to extend a person's "span of immediate memory". With exceptions, most people tend to be able to keep a mere handful of items, typically roughly seven, in active play [Miller 1956]. These items can be structured, and the mind will still treat them as units. These structured units are sometimes called chunks.

To be the most effective for bringing the material back, it should be recoded, that is, rewritten by the practitioner (e.g., [McDermott and Roediger 2015]). Breaking it up into chunks is one way of recoding; rewriting its parts is another.

To create a good Level 4-5 z-card, therefore, the practitioner should craft the material as coherent, well structured, recoded chunks, not too many. Working through this process will help the practitioner keep the card material in mind while working with it, and will help bring it back to mind later. The chunks should be arranged physically on the z-card so that they stand out, thus attracting the eye.

Chunking will repay the effort. Do not forget it.

4.2 Doing The Work

Cardcraft and Engagement

A Zettelkasten-like system cannot rely on mechanical means alone to promote Levels 4 and 5 thinking support. The practitioner must be involved with the work at every step. The involvement happens in several areas:

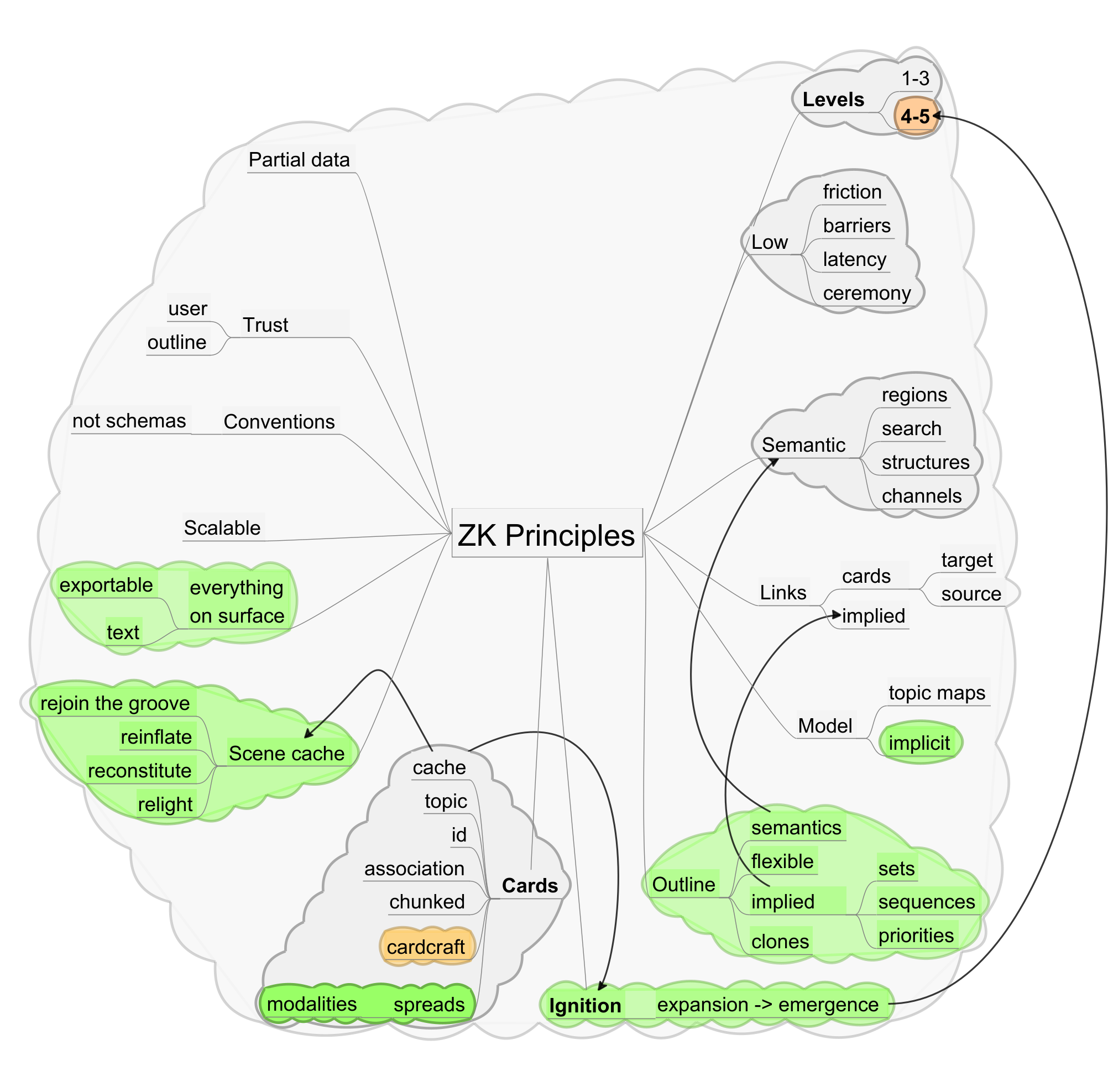

The mind map at the start of this section depicts some aspects of scene caching and search awareness. Some of them are discussed here, some in earlier or later sections. The activity of creating and tuning up effective z-cards is called cardcraft. Good cardcraft is a learned skill.

Links provide point-to-point connections between individual cards. Searches are usually more productive if they point to an area or neighborhood of semantic similarity. Z-cards with similar IDs tend to form such a neighborhood (as with Luhmann's numbering system). If z-card IDs are arbitrary, other ways will need to be found to replace numbering-based grouping.This kind of collocation is valuable, but other ways of establishing related areas can be more effective. This is covered more fully in Section 4.6.

Most searching will search titles, and results will be displayed as z-card titles. Search results can be presented clustered by neighborhood or context, when they can be deduced. Clustering search results is a proven way to improve the productivity of searching. So good z-card titles are essential: another aspect of cardcraft.

The importance of cardcraft is a manifestation of a more general truth. A Zettelkasten is a tool. The practitioner is the tool user. The practitioner has to practice.

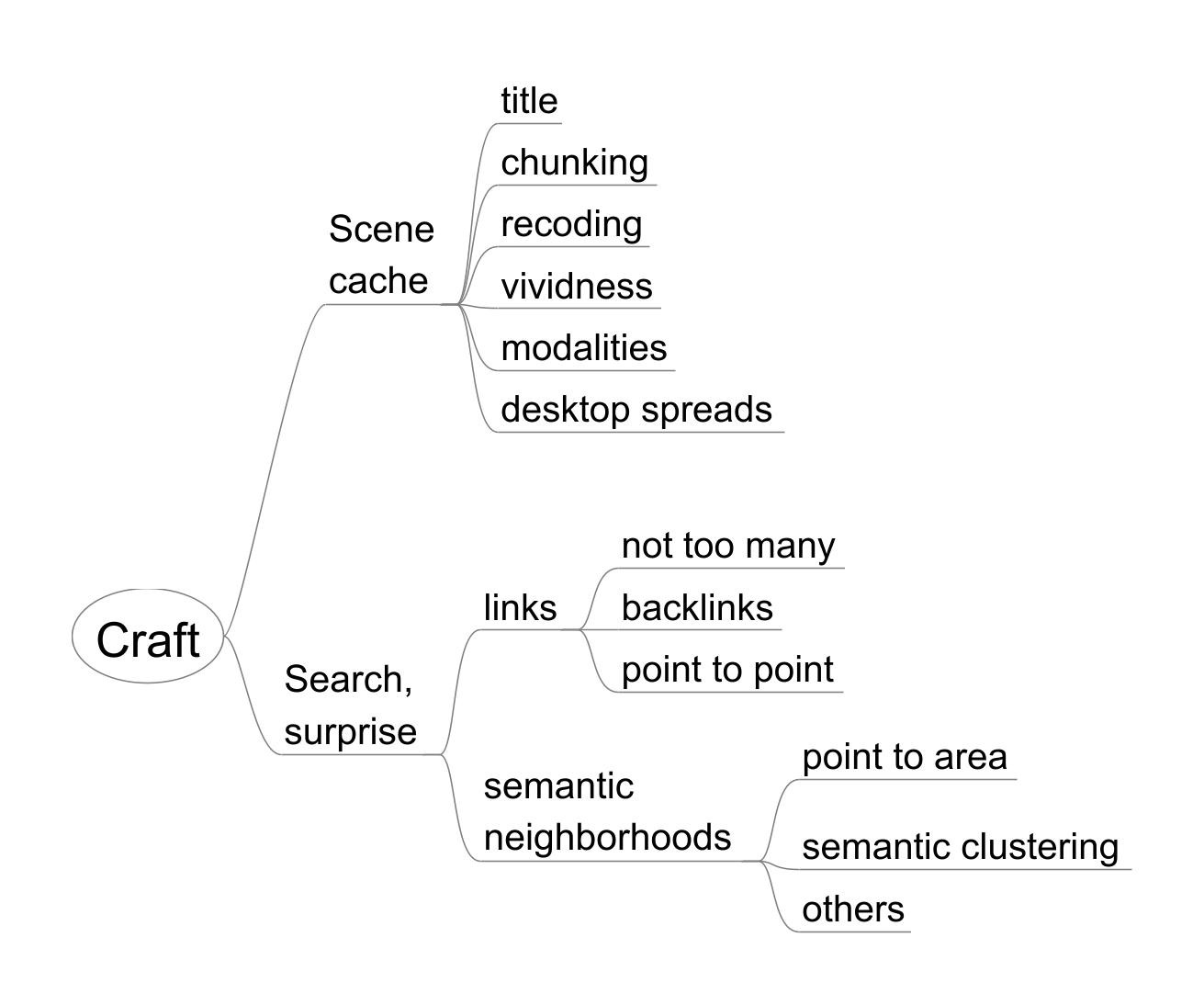

Figure 3: Cardcraft

4.3 Scene Caching - A Missing Link

Scene caching (see also Sections 3.3 and 3.5) does not seem to be discussed in online posts about how to make effective use of a Zettelkasten. Yet as has been seen, for many creative endeavors reigniting a mental state is most important. It is a way to carry over the work from one time to another. Its purpose is to counteract the normal fading of memories. Even within a single z-card, the refreshment provided by mental saccades (section 3.6) is valuable.

Crafting a z-card so that it brings back a scene (Section 4.3) is part of the caching story. Scenes may include a wider view than a single card can provide. Temporary semantic clusters can be set up in various ways. Non-textual views of the subject can be displayed, possibly including embedded images. Multiple views of the same card can be opened. A card can be rendered, for example, by a ReStructured Text or Markdown processor for better legibility.

Views of several cards can be opened and displayed at the same time, much as physical index cards can be arrayed on a desk. This kind of display is called a "spread" in this paper.

It may be that a particular implementation cannot do all of these things, or can do them but with too much effort on the part of the practitioner. The more such techniques can be easily used, the more support for these creative activities the system can give. Lack of them does not mean a given system has no value; only that its support is less capable than it might have been.

A good slogan could be "Keep it in mind".

4.4 Modalities

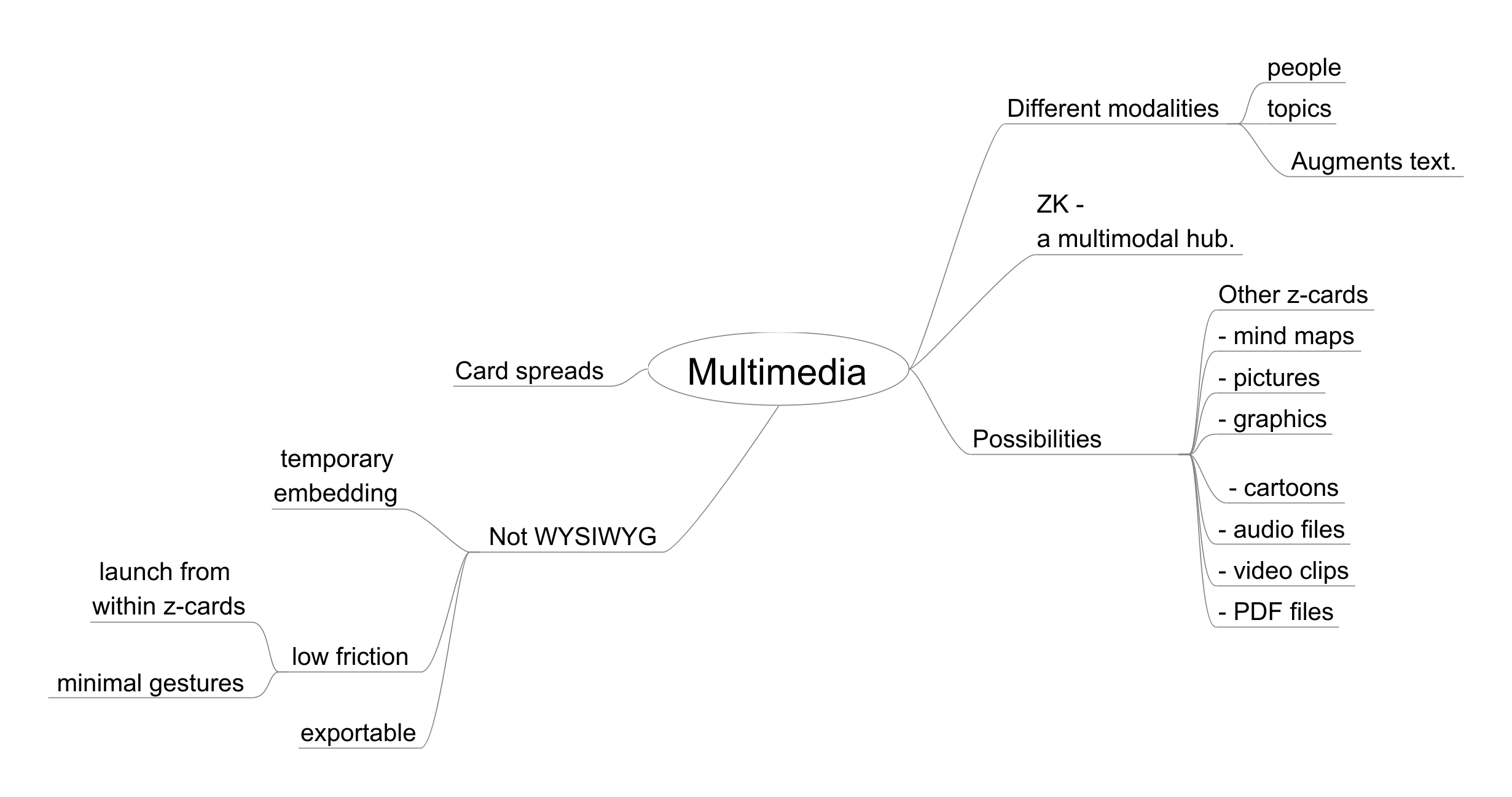

Figure 4: Multimedia Modalities

In Section 4.2, using different multimedia modalities was mentioned as a way to increase a z-card's ability to bring a conceptual scene back to mind. They can also be a help during other activities one might perform in connection with a Zettelkasten. For example, the author enjoys sketching out the structure of papers and their sections using mind maps. Keeping the mind map visible during composition is a great help. When this can be accomplished from within a card itself, there is hardly any cognitive barrier to doing so.

In fact, the author had three mind maps open plus a live rendered view of the section itself in a second monitor during the drafting of this very section. One mindmap had the plan for this subsection, one had the design of the larger Section 4, and a third had the plan for the subsection on searching. A rendered live view is especially helpful when tables are to be included, since it can be hard to know whether they will look right otherwise. In addition, the mindmap could be opened in the mind map editor from within the very passage being worked on. The few lines of simple markup that allow for all this were removed before the paper was finalized for publication.

The mind map at the top of this section shows a range of possible multimedia files that someone might find useful. Different people find different modalities work better for them. The ability to launch a variety of file type from within the cards themselves turns the Zettelkasten system into a kind of multimodal semantic hub.

The mind map asserts that WYSIWYG-style embedding is not desired, although temporary embeddings are fine. This is because as will be seen later, one of the proposed design requirements is that all the information in the ZK should be "on the surface", meaning not hidden in special encoding techniques or a database but shown on the surface of the cards. This is to allow all the contents of the ZK to be exported in text format in a way that is easy to parse. Without this requirement years' worth of data and cardcraft could not easily be exported and re-purposed for another system.

Pictures, diagrams, mind maps, and other modalities add greatly to the experience of working with a good system. Don't hold back, use them

4.5 Where Hast Thou Been Forever?

The Joys Of Outlining

The term "Semantic Neighborhood" was used earlier (Sections 3.8, 4.0, and 4.2). It represents the concept that cards about similar things should be clustered "nearby" in some sense. Clustering can be surfaced in the display of search results. Luhmann's card numbering system caused some related cards to be filed physically near each other. Various ways of relating cards by their concepts - here called "semantics" - can be thought of as semantic "channels". The more kinds of semantic channels, the richer the card collection and the more productive searching will be.

Some computerized Zettelkasten systems link cards by their title. This design abandons the channel of propinquity - there is no numbering system that groups related cards. Keywords provide only a weak channel, as will be seen later. Filters are similar to keywords in this regard. So these systems have only a few, impoverished semantic channels.

Luhmann's numbering system, although sometimes written about as if it were esoteric, is actually a minor variant of the method used in almost all technical reports. It is a hierarchical system that can be subdivided indefinitely. In a word, it is an outline, though an implied and awkward one. Outlines are a tried and true way to relate and differentiate material that has some similarity in the mind of the author.

Luhmann himself cautioned against imposing an outline on the Zettelkasten. But he meant an rigid, predefined outline structure that has little to do with how the practitioner thinks, and cannot grow and adapt over time. This is clear from his remarks, as quoted in Section 2.1. The restrictions imposed by the paper-based nature of his ZK system prevented him from using a full-fledged flexible outline. In a computerized ZK these limitations can be removed.

An outline as used here is a first class object that is structured quasi-hierarchically (though its contents do not need to form a strict hierarchy), looking like a tree view. The names, locations, and nesting depth of the nodes are independent of the z-card content. They reflect the practitioner's view of the semantics. Nodes contain a label and a text block, which for a ZK is the text of a z-card. The ability to clone a node and put it into a different part of the outline is a highly desirable feature.

By contrast, the treeview in a typical programmer's editor is created automatically based on the code structures in the program text itself. The two kinds of outlines may look similar but are profoundly different.

The children of a node may have a variety of relationships to their parent. For example, they may form a sequence or a set. They may be related by some intangible sense. They may discuss different facets of a larger subject. The outline will be composed of many nodes that contain no text but serve as organizing points in the outline. These nodes, with their titles, are not zettels but are crucial to the semantic content expressed by the structure. The outline must be easy to change and restructure over time to reflect the changing concepts of the practitioner.

Library science has the concepts of navigation and collocation. These are described in [Svenonius 2000] this way:

Luhmann's paper-based system mixed navigation and collocation together. The numbering system was needed to find a card by its location in the card drawers, and collocation was provided by having cards that were numbered together located near each other. With a good outline, these to capabilities can be separated, just as they are in a physical library. In the latter, one searches a card catalog to find a likely shelf location, then goes to that shelf and scans for the actual work. The scanning often leads to serendipitous discoveries. The same can happen in an electronic Zettelkasten system when parts of the outline are scanned.

Here is a list of types of semantic channels that a ZK with an outline can provide. Only a few are directly related to the individual z-cards themselves.

                - Card-based
                    - links
                    - titles
                    - keywords (if used)
                - Outline structure
                    - sequences
                    - neighborhoods
                    - implied relationships
                       - Creating a temporary tree of clones of selected z-cards.
                       - Promoting or demoting certain cards in the tree
                - Propinquity (creates new semantic neighborhoods)
                    - Spreading several z-cards around as if spread out on a desk
                    - Multi-modal embedding; spreading as if on a desk
                - Search Results Clustering
                    - by contextual neighborhoods
                    - by organizer nodes

Here is a portion of the author's ZK outline:

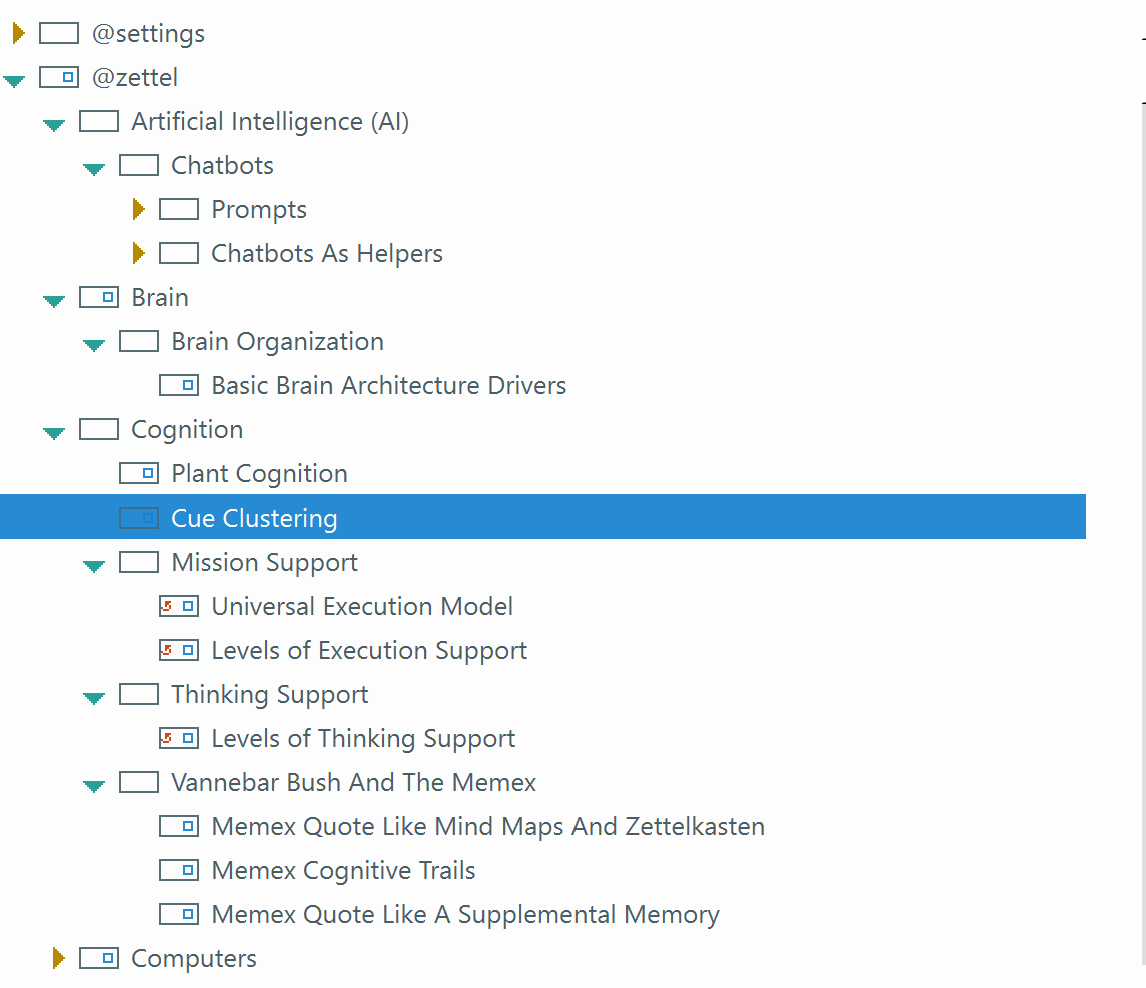

Figure 5: Example of an outline

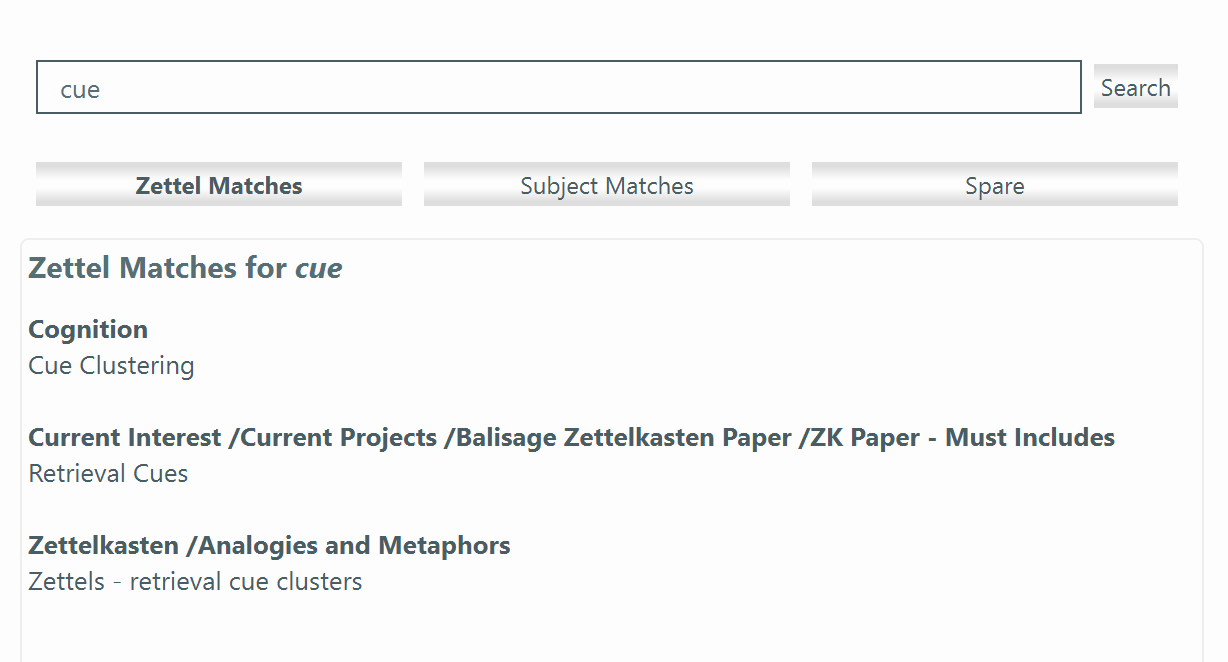

A search for "cue" intended to find more about cue retrieval would end up in a semantic neighborhood containing other topics somewhat related to "Cognition". If the practitioner is receptive he might notice the cards on Vannebar Bush's Memex and wonder if Bush mentioned retrieval cues (he did).He might notice that the icon next to "Levels of Execution Support" indicates that this is a cloned node and wonder where else the card has been cloned. He might wonder in what sense plants could be said to have "cognition" and pursue that as an interesting line of inquiry.

These examples illustrate some of the ways an outline can contribute to the value of a Zettelkasten system and how it can promote Level 4 and 5 activity. The placement of a z-card in the outline is often a reflection of a largely unconscious process that takes into account many factors, many of which may never be fully articulated. The outline' structure is therefore partly a trace of the practitioner's unconscious knowledge. Because the outline structure is only partly planned and evolves over time, a kind of semantics of its own emerges.

In this way the Zettelkasten can surprise the practitioner, as Luhmann wrote, and surprise is a key to new and creative thoughts.

Let there be an outline!

4.6 Hide and Seek

Searching is of course a key activity for any practitioner. A search may seek an individual z-card; a topic that might encompass more than one z-card; a semantic region; or a remembered word that seems important. The search may be to find a particular branch of the outline. Most important, in most cases the practitioner will not remember many details if any.

As a case in point, the author wanted to examine how well a particular platform might work for hosting a Zettelkasten. He couldn't remember its name. The only thing he remembered was a post on a discussion group that a particular member had used Obsidian for some time but now had moved over to this other platform. So he searched for "Obsidian" and got a hit. Navigating to that part of the outline (a single mouse click), the card just before was for a web page titled "Glamorous Toolkit". That was it ... now he remembered. Here is a screenshot of that search result:

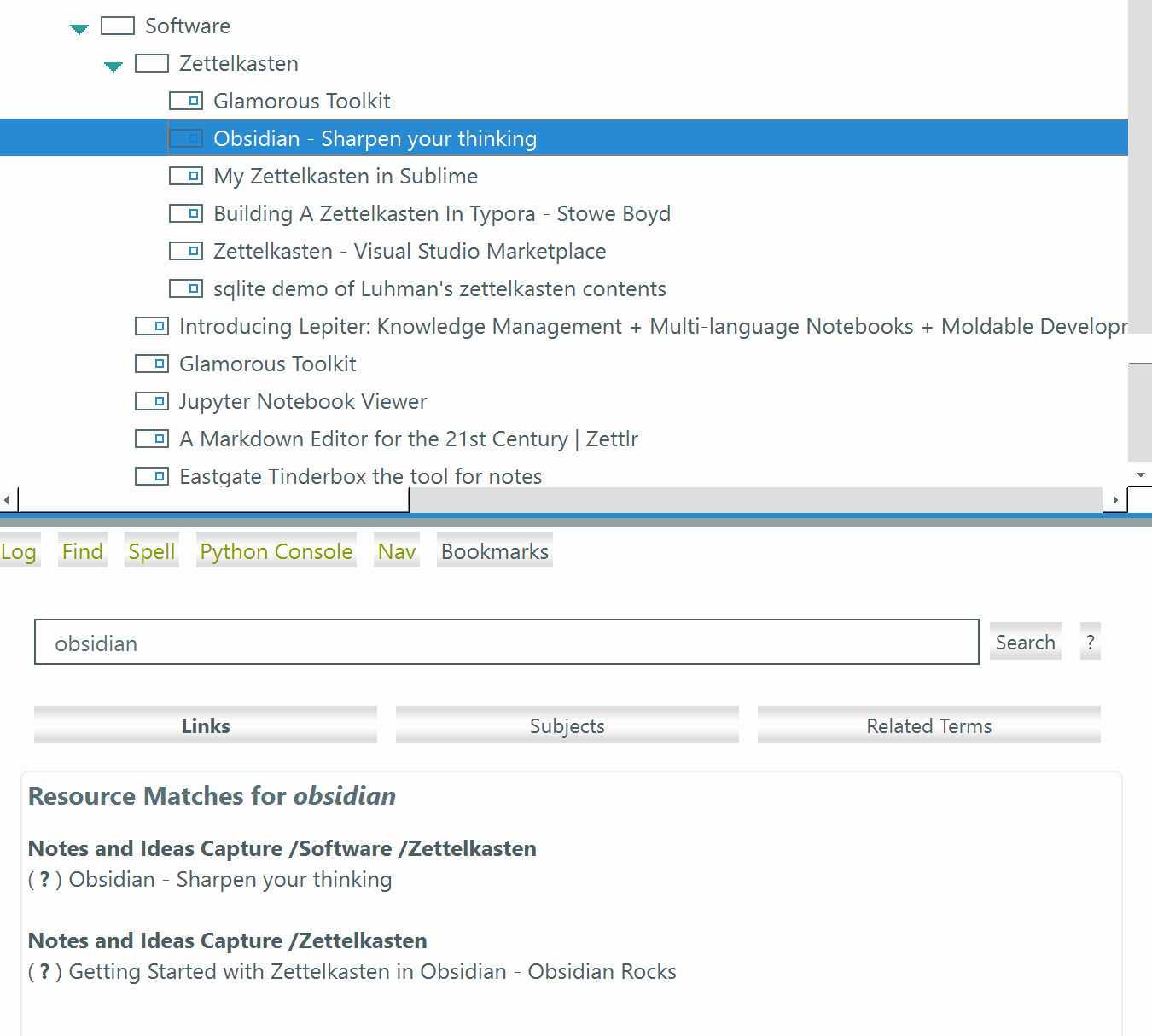

Figure 6: Searching for "obsidian"

In this case the author searched for the wrong thing in the hopes it would lead him to the right one. A system with only card-to-card links and with no means of exposing semantic neighborhoods, could never succeed at a task like this.

[Note that this image is of the immediate ancestor of the author's Zettelkasten system; it is specialized for managing a collection of browser bookmarks. It is essentially the same as the ZK system except for not having links between cards.]

A second reason to make a search is to rebuild a conceptual scene. For example, one might create a temporary area in the outline to hold case studies for a report. Each z-card for one of the studies could be cloned into this region. A search for "case" or "case stud" would lead right to it. Note that a stem of "studies" is used because the practitioner might not remember if the organizing node's label used "study" or "studies". Any time a special purpose grouping of cards is needed, they can be cloned into one part of the outline. Later this part of the outline can be deleted if won't be needed later.

In a system that has an outline, there are basically two kinds of searches: of the labels of the organizing nodes, and of the titles of z-cards. Full-text searches turn out to be used only rarely, in this author's experience. When the title of a z-card is crafted with a mind to finding it in a later search, searching is likely to be successful.

Search hits for z-cards should be displayed clustered under their place in the outline. In the author's implementation, this means a flattened context path from root to the nearest organizing node. A typical context path looks like this: "Cognition/Vannebar Bush And The Memex". Each step of the path can be clicked to navigate to that location in the outline. Or the z-card's title can be clicked to navigate to the card itself. For full-text search, hits should also show the z-card titles of the cards that contain the search phrase, clustered under their context paths. This design makes for a very readable display that offers a useful range of navigation possibilities.

Hits for organizing nodes should be shown in a separate area such as another tab. Note that some organizing nodes may show up in the "Subject Matches" tab but not in the "Zettel Matches" tab. This is because an organizing node that does not contain a z-card matching the search phrase will not appear in the tab, and an organizing node's title (also called a "subject term") may match the search phrase even if none of its child cards does.

Here is an example of the z-card matches for a search in the author's implementation:

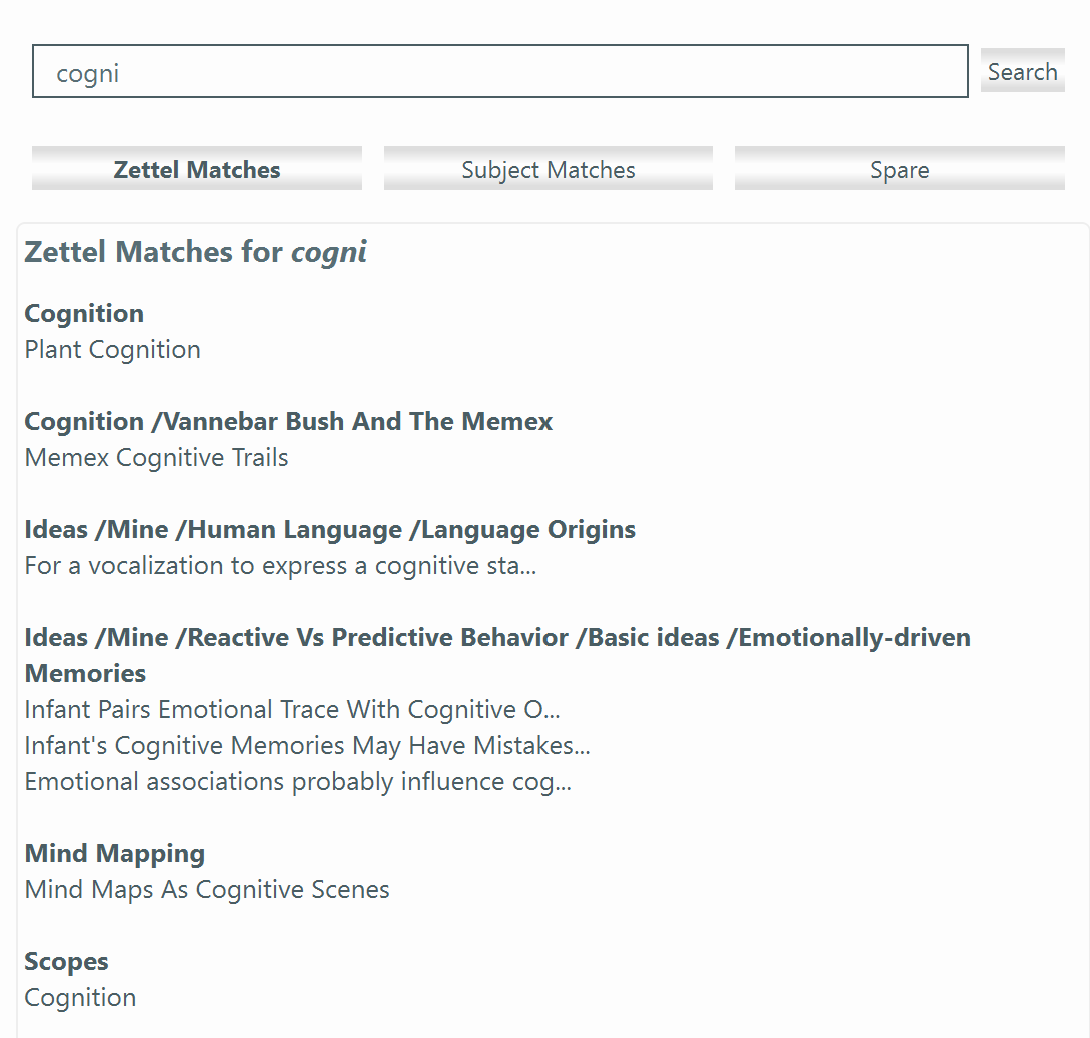

Figure 7: Z-card search results for "cogni"

The clustering of hits to surface their semantic neighborhoods is clear. Each segment of the bold-faced context strings is separately clickable to make navigation easy. Clicking on one of its hits navigates to the z-card itself. Long z-card title are truncated so they do not overflow or word wrap.

Of the remaining items in the mind map heading this section, only two will be mentioned. Keywords are shown as being undesired. A keyword is essentially a top-level organizing node, but one that is hidden and implicit. It has no structure and cannot show conceptual neighborhoods. Some keywords will show many hits, but too many undifferentiated hits are hard to use. In addition, keywords contained in z-cards are hard to change if a reorganization becomes desired later. Keywords also present maintenance and UI headaches. It is better to create organizing nodes in the outline instead. They can be searched like key words but with more precision.

A level 1 search is for a fact or simple idea, possibly a web page reference. The branch in the upper left of the section mind map suggests that even a Level 1 search can sometimes result in Level 4 or 5 experiences. This is not common but does happen, if the practitioner happens to be receptive at the time and notices something unexpected. It is the interaction between the Zettelkasten and the practitioner that makes possible the unexpected and creative levels of ZK operation. A good design and good cardcraft greatly increase the chances, though.

With good design, a search can seem more like playing and less like flailing.

4.7 Get Out Of My Way!

When a person is working in an intense state of involvement, any hindrance or interruption becomes at the least a major irritation and may even be intolerable. The cognitive friction must be kept low, and repeated actions should be relegated to muscle memory as far as possible. Any choices that must be made should belong in the mental realm being thought about, not in computer-demanded ceremony.

Confronting a practitioner with popups, dialogs and the like must be avoided whenever possible. The best ways to avoid them is to make them unnecessary. Either the data items involved should be deducible by the system, or they should follow a simple convention that the user can enter into a z-card itself. For example, it may once in a while be useful to assign a type to a z-card. In the case of a z-card intended to act as a citation reference, the user can type a very simple bit of markup, such as this example used in the author's implementation:

                :type: citation

The markup language used here is RestructuredText (RsT). It is compact, easy to type, and easy to remember. Most important, it is a natural form for most people to write, a key name, colon, and a value. The only difference is the leading colon. In addition, the card can be rendered by an RsT renderer into a nicely legible form where the metadata shows up clearly.

Using this simple markup for metadata also lets the practitioner add any kind of metadata desired to a card. Scripts can find and parse it easily. For example, a reference to an associated web page can be shown as:

                :ref: https://www.example.com/metadata

This example shows a ZK design that relies on convention instead of ceremony and hidden data. For example, in the Topic Maps data model underlying the author's implementation, a block of text about the z-card's topic would be called an occurrence and be a separate data item referenced by the topic object. In the actual implementation, the card is a topic and a text block is understood to be an occurrence.

A system of conventions like this is convenient and powerful, as long as it remains small, simple, and as natural as possible. So it is imperative to avoid feature drift. The user must be trusted to follow the conventions and add only minimal ones needed. In the author's experience over many years, very few conventions and kinds of metadata are needed for a practical ZK that supports Levels 4 and 5 creative thinking.

Since the metadata are easy to parse, scripts could be easily written to manage an extensive set of terms. But then there would be the practical problems of managing the metadata terms and letting the practitioner interact with them while still not imposing extra ceremony and friction. It is far better to rely on convention and avoid feature drift.

Low friction also entails low latency. Searches and navigation should happen without noticeable delay. Special-purpose scripts may be allowed to take longer if they are used only rarely and perform a valuable function, but this should be an exception.

If there is to be a system intended to provide Levels 4 and 5 of Thinking Support. let it "Get Out Of My Way"!

4.8 Talk To Me

Some practitioners have written of experiencing a kind of communication with their card collections, both with Zettelkasten systems and other rich note collections. The following quotations seem to be representative:

"As a result of extensive work with this technique a kind of secondary memory will arise, an alter ego with who we can constantly communicate" [Luhmann 1981].

"The communication with the slip box becomes fruitful only at a high level of generalization, namely that of establishing communicative relations of relations. And it becomes productive only at the moment of evaluation, and is thus bound to a certain time and is to a high degree accidental" [Luhmann 1981].

"My note system has always been "useful" insofar as I can retrieve the information that I need from it. But only recently, in the past two years, have I noticed that the system is starting to have its own life, as if it is talking to me" [Andy 2020].

"It is as if the structure and connections communicate to us in ghostly ways" [Passin 2003].

How can this be? It is partly an outcome of how the practitioner approaches the collection. As a personal example, if the author wanted to follow up on some idea, he would start with a search. A Level 1 search for a fact, such as "What is the syntax for this Linux command?" feels like a demand: "Find this for me". More often, the question is more like "I wonder what I already have on cue retrieval?"; that is, an exploration rather than a demand. The search result shows that yes, we have some information, as this screen shot shows:

Figure 8: What do I have on "cue retrieval"?

This particular implementation also shows the semantic areas around these z-cards. They probably contain other interesting z-cards. Even if they are not immediately relevant any of them might stimulate a fruitful train of thought.

The system has answered back with more than it was strictly asked. If there were no results, or if the only results appeared in a semantic area not of interest at the moment, this would be communicating "We don't have anything on this" Even null results can be useful too. Because we all forget things, we might have forgotten that the cluster "Zettelkasten /Analogies and Metaphors" even exists. It would be a surprise, and surprises are valuable currency for creative cognition.

A conversation with one's notes can be an experience, not just a metaphor.

4.9 Luhmann - Freed At Last

Luhmann's Zettelkasten system was severely constrained by its paper-based nature. Many of his written strictures were imposed by those constraints. For example, he could only find a z-card by giving it an sorting identifier so that he could riffle through cards and find it by identifier. He could no longer find a card if its written link became illegible. He could not reorganize parts of the card collection even if he wanted to. He had only a small space to write in.

Luhmann, though disclaiming an outline structure, did have an implied outline derived from his numbering system (see Section 4.5). He did have some of the semantic channels listed in Section 4.5, including intercard links, sequence, limited neighborhoods, and propinquity to a limited extent (e.g., he could spread other cards out on a desk). But it would have required a large cognitive effort to build up these structures in his mind on each new encounter with the system. And there was almost no search capability.

With a good software design, and with the help of the framework (Section 3), it is possible to remove these paper-based constraints. It is important not to inadvertently introduce new ones. The framework also shows that support for level 4 and 5 creative activity should be planned for as a design requirement, not as a byproduct.

The most important features that a modern system can provide that a paper-based system cannot are:

A system with such features frees the practitioner from the constraints that Luhmann had to deal with every day. It provides features that Luhmann would have used if he could have made them work. That system can be said to be a "ZK++", a step beyond Luhmann's Zettelkasten.

5.1 Principles

Figure 9:

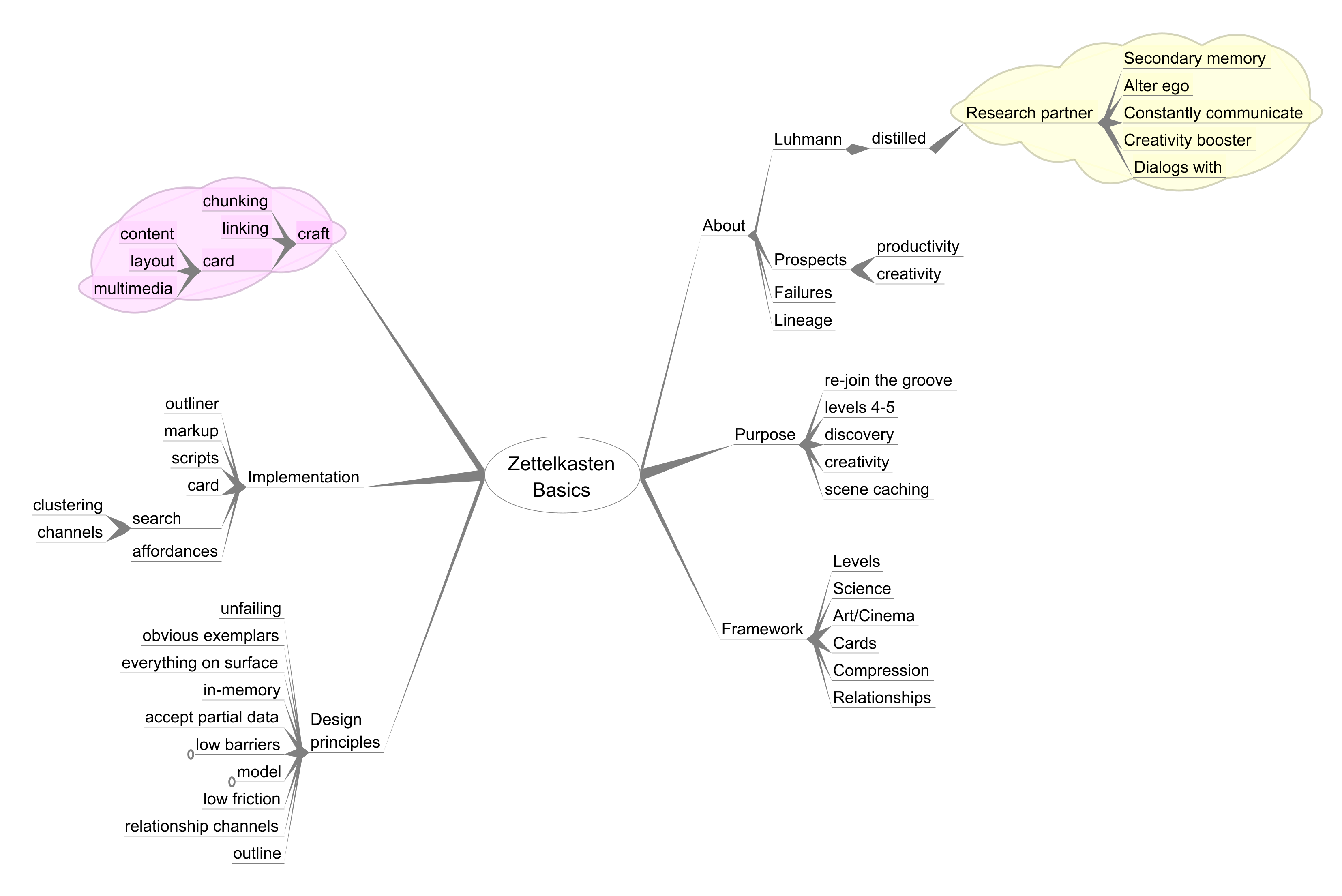

The mind map at the top of this section collects most of the principles that have been discussed earlier. Only a few will be highlighted here.

One of the most important is the outline. It is true that many current ZK applications do not have an outline, or the kind of outline that is the most helpful. They miss out on one of the most powerful set of semantic channels that could enhance the system (Section 4.5). The outline is the place that exhibits much of the practitioner's semantic knowledge, so it should be made a first-class element of the system. Luhmann was correct that a rigidly imposed outline is inimical to the purposes of a ZK, and the outline needs to be flexible and easy to modify and extend.

A key principle is that everything should be on the surface - of the z-cards and the outline arrangement both. The system should not depend on hidden data. This requirement serves two purposes. First, the complete data set can be exported as easy to parse text so that if need be it can be transferred to some other system. Years worth of careful work must not be trapped in a proprietary system, and text is the only viable format. Second, when everything is on the surface the practitioner can see, understand, and modify it.

Another principle is that the operations and content of the system be very simple and impose a minimum of friction and latency. This principle implies that there should not be too much for the user to remember in ordinary operation. Formatting of metadata should be minimal, easy for a user to type and read, and should be self-explanatory as much as possible. As many fields or markup sections as possible should be optional, and missing data should never cause the system to fail.

The system designer should trust the user. After all, it is the user who will supply the data and the latent semantics. It is the user who wants to benefit. It is the user who will experience excessive friction or latency and it is the user who will stop using such features, and later even the entire system, because of them. Trust the user and ease his tasks.

The system should be programmable, preferably by scripts that are easy to create and launch. The scripts must be able to change the content of z-cards , to navigate the user from z-card to z-card, and generally inspect and act on both the tree and the z-cards. Scripts allow an existing system to be adapted to the role of the Zettelkasten, and allow added functionality to be added.

The need for low latency strongly suggests that the entire data set should be stored in memory, not spread out over many files.

5.2 Data Model

The data model underlying the Zettelkasten system proposed here is the ISO Topic Maps model [ISO 13250-2] (TM). This model is a natural fit because a Topic in TM is anything that can be a subject for discourse. Clearly, a z-card represents a topic. Topics are related by Associations, which are a specialized kind of Topic. So card-to-card links, parent-child relationships in the outline, and so forth, place the z-card into an Association with other z-cards. Data chunks that apply to a topic are called Occurrences. Unlabeled blocks of text on a z-card represent Occurrences.

Every item on a z-card can be mapped to an equivalent TM element. There is no need here to show an exhaustive list beyond these basic equivalences. Those familiar with Topic Maps will recognize them at once.

Those familiar with Topic Maps will also know that applying the model in a formal and literal way produces a rich but rigid system that is hard to modify on the fly. It also tends to produce a large amount of ceremony and friction because so many kinds of elements need to be populated. But a ZK needs to flexible and avoid ceremony and friction. The way to resolve this conflict is to rely on simple conventions and the intelligence of the user.

For example, a Topic always has an ID, a type, and a name. A z-card is known to be a topic, so there is no need for an explicit assertion of that fact. Even though it is a topic, the user doesn't usually need to know what type it is. The type can be left implicit unless some script needs to know it. A z-card for a citation does not need to be marked as a "citation" for the user's benefit; he can see that at a glance. If the system is to provide a script that collects citations, then the script will need to know, and the z-card's type can be so marked.

In line with the principle that everything must be on the surface, all TM-related assertions are marked using a small subset of a simple markup language. This language should be chosen to be easy to type and and natural to read.

By allowing most of the formality of the TM model to dissolve into a small set of optional conventions, the rigidity can be removed while the benefits of having a definite model remain.

5.3 Design

Starting with the outline, it must be a first-class component whose organization is not determined by the contents of its nodes. A node should have a headline that labels the node in the outline view. It should contain a text block, which can be displayed and edited outside the outline view. The outline structure will look like a tree.

The design should be built on top of some existing platform so that the implementation of a reliable outliner can be avoided. Whether it will use a pre-existing platform or one built for the purpose, here are the basic platform features needed for an implementation:

                1. An outline component;
                2. An editable text block associated with a specific node;
                3. A scripting capability that is preferably simple to use;
                    3a. Scripts should be able to traverse and modify the outline view;
                    3b. Scripts should be able to read and modify z-card contents;
                    3c. Scripts should be able to create at least a basic user interface
                         element, such as a dedicated search panel;
                4. The ability to keep the entire data set in memory for low latency;
                5. An ability, native or scripted, for serializing the outline and card
                    content to a text file.

Additional features that are highly desirable:

                6. Clones - the ability to place a z-card in several outline locations;
                7. An ability to launch external programs appropriate for various
                    MIME types, such as an image viewer;
                8. A way to display a rendered view of the content of a z-card and
                    its markup,  including any images specified by the card's marked
                    image file names.

6.1 A Sample Z-card

Here is a z-card about a subject discussed in this paper. It should be self-explanatory:

      Zettelkasten Movie Analogy: Scene Re-inflation
      -----------------------------------------------
      :id: tom.20260315131956.1
      :created: 2026-03-15 13:21
      :elaborates_on: tom.20260308003422.1 Eliciting and Stimulating Creativity
      :seealso: tom.20260315140706.1 Scenes and Frames
      :seealso: tom.20260317101834.1 Scenes and Working Frames
      :seealso: tom.20260406130700.1 Zettels - retrieval cue clusters
      A director needs help to maintain the shape of a scene over time:
          - continuity notes
          - script with markups
          - blocking diagrams
          - rushes
          - etc., etc.
      This gestalt, this constellation, is the "Working Frame" or "Scene".
      A Level 5 ZK card tries to capture enough of the scene that it can be brought to life again.

The id strings (like "tom.20260315131956.1") are the node IDs assigned by the Leo when the node is created and never changed. The markup terms are few and are more like notes to oneself than markup. The `:id:` line is the specific feature that marks this node as a z-card. A script can check whether a node is a z-card or not quickly and unambiguously.

Note that this z-card contains an occurrence, namely, the unlabeled block of text. The practitioner need not be aware of this technical fact.

6.2 The Markup

The markup used with Leo/ZK++ is a very small subset of ReStructured Text (RsT). It is used for these reasons:

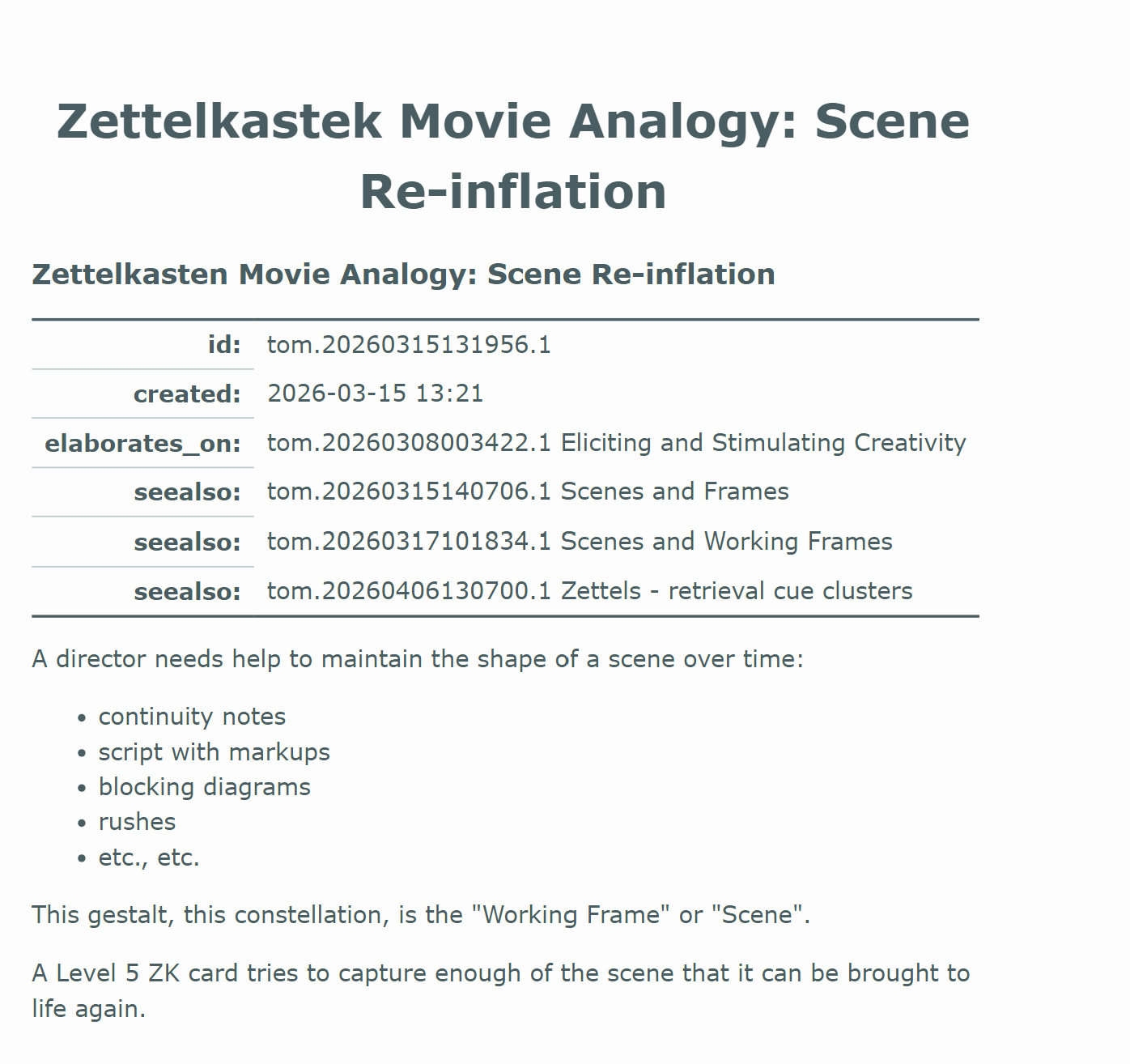

Leo provides several ways to render RsT in a node. Here is a screen shot of the above card as presented by an RsT renderer.

Figure 10: Rendered Version Of A Z-card

6.3 Identifiers And Links

Node identifiers such as `tom.20260315131956.1` are used by the navigation scripts. Card titles are not used, and are optionally included so the practitioner can recognize where the link points to. So the user is free to abbreviate the title or change it to make it more memorable; the target's title can be changed without affecting the navigation. Links serve as navigation points whether or not they are in a markup line.

Links in a markup line are placed before the card label so that the practitioner can find them without having to search around the line to find them. This placement also makes it easier for a script to extract them reliably.

The actual string can be considered to be opaque. In the Leo/ZK++ implementation,the creation timestamp happens to be embedded in the node identifier. This is used by the z-card creation script to build the `:created:` metadata line. This line has no functional use and is only a convenience for the practitioner.

6.4 Gestures

Leo/Zk++ uses a small set of commands and gestures. For the most part, they will become muscle memory after a short time. Here are the main commands:

A few commands are not bound to shortcuts:

In addition, the practitioner will use standard Leo affordances and commands, such as CTRL-I to insert a new node. These commands plus the search panel are all that are needed to turn the host platform into a capable cognitive support tool.

6.5 Search Panel

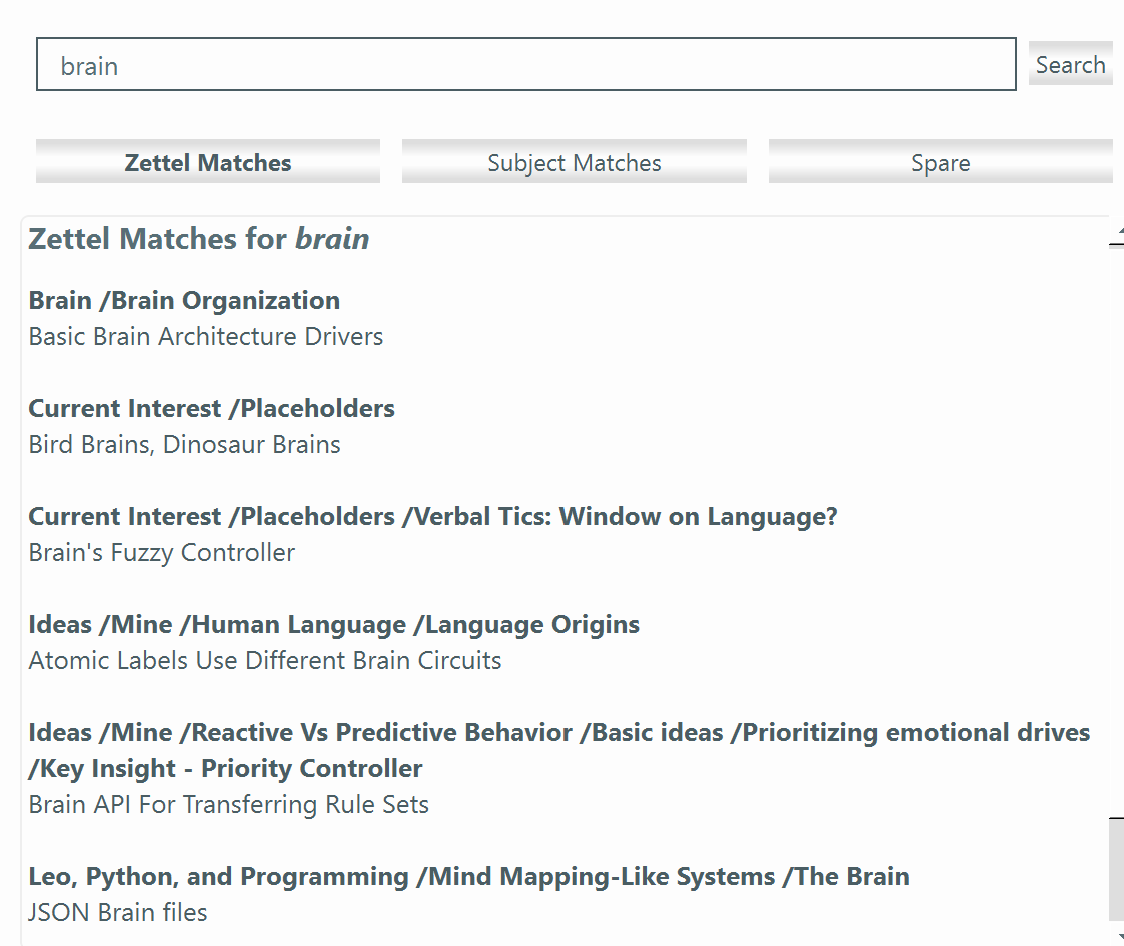

Leo has good full text search facilities, but a dedicated search panel can be far more valuable for a Zettelkasten. The search panel in Leo/ZK++ returns two views of the results:

1. Cards whose titles match the search phrase, clustered by their place in the outline; 2. Outline locations that match the search phrase.

Note that a matching location may have no z-card child nodes that match the search, and conversely, a matching card may be located under an organizing node that does not match the search.

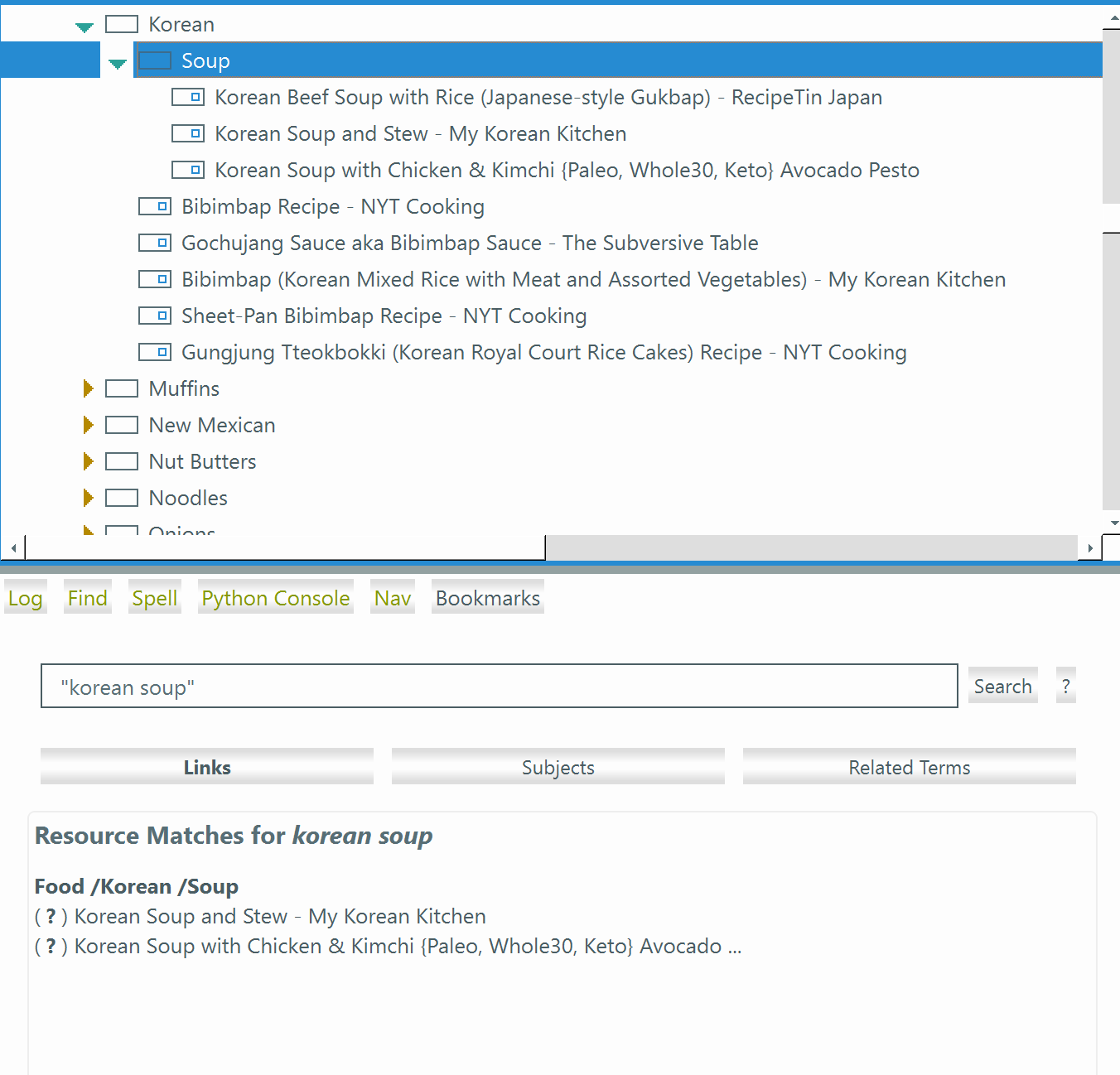

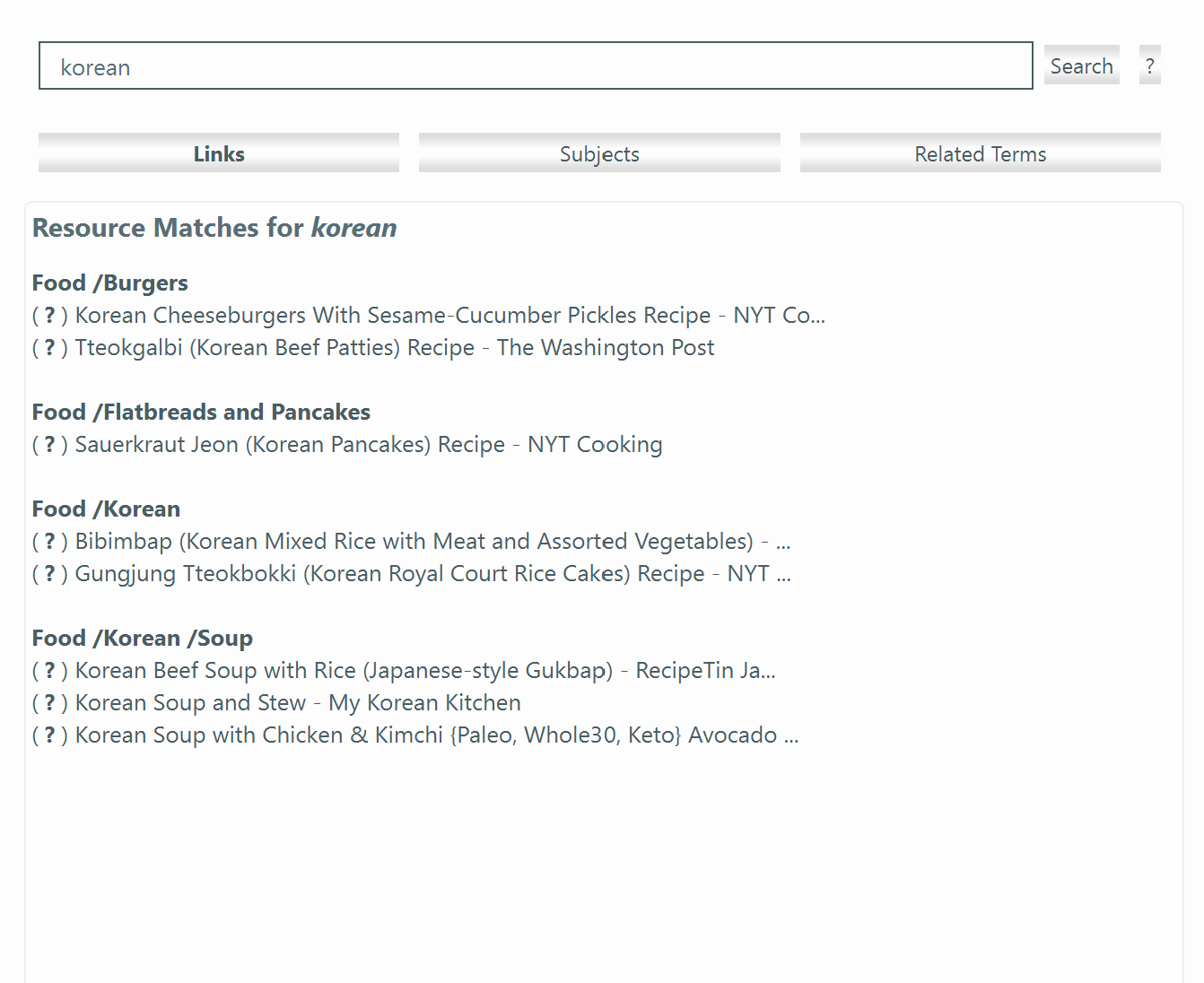

Both the z-card titles and their cluster parent's location path are clickable navigation links. Here is a screenshot of the search panel in action.

Figure 11: The search panel in action

The search panel is designed as an Model-View-Controller. It is about 1000 lines of Python code, and is by far the largest script in the Leo/ZK++ system.

8.1 ZKs Alive

A Zettekasten has been said to communicate or talk with the practitioner. Let it do so; be receptive. Allow for surprise.

8.2 Without you I am nothing

No Engagement, No Result

A good Zettelkasten is a well-tuned cognitive instrument. Like all instruments it requires practice to play well. Practice mindfully and be engaged with your searches.

8.3 Today's ZK ISA

What can a modern Zettelkasten be? In a nutshell:

8.4 Extend Me

The Leo/ZK++ has been extended by an overlay of specialized scripts to handle genealogy data. This experiment has been successful so far. The scripts and data are kept in a different ZK outline than the author's primary one. Other overlays should be feasible as well.

Since a script can launch external programs, it is feasible to send data to a graphing program like GraphViz and in return get a diagram like, in this case, a family tree for the entire collection. A ZK can in essence be a cognitive hub, coordinating a range of other programs.

8.5 Tomorrow and Tomorrow.

Speculating on future possibilities, the following ideas are intriguing.

Imagine an e-book, and it has a live Zettelkasten for its index. The user can modify this index, add annotations or thoughts for future research and generally use all the affordances of the ZK. Preferably this book index can be merged with the user's main Zettelkasten too. This idea does not seem too far-fetched.

A specialized chatbot could ingest the contents of a ZK. The user could interact with it in rewarding ways that would be wholly new. The main technical obstacle to be overcome is how to prevent the chatbot from adapting too closely to the practitioner. He does not need a mirror, he needs surprises.
