Introduction

Computational textual humanities research often makes use of descriptive statistics and graphic visualization to communicate quantitative information about textual objects of study. SVG is capable of rendering any chart or graph a user might wish to deploy, but there is no standardized function library for XSLT or XQuery comparable to, for example, the support for statistical analysis and visualization available in Python Pandas, Julia, and R. Neither is there any standard XSLT or XPath visualization library comparable to the D3.js (Data-Driven Design) JavaScript library that has come to dominate high-quality informational graphics on the World Wide Web.[1] The XML family of languages (and specifically XPath [including XPath functions], XSLT, XQuery) has not prioritized mathematical computing, but it is nonetheless tempting to ask whether it would be possible to save XML developers the inconvenience of stepping outside the XML stack to, for example, plot a regression line or draw a Bézier spline.[2]

Statistical programming languages such as Python Pandas and R may employ vectorization to achieve performance benefits in computationally intensive operations. XSLT supports syntax that is compatable with a functional perspective (e.g., functional mapping rather than sequential iteration), but insofar as XSLT is a declarative language, it does not naturally expose how it works internally.[3] Because the user has limited control over how XSLT engines perform the operations requested in an XSLT stylesheet, it is possible, and perhaps likely, that some statistical operations will prove too computationally intensive to be implemented practically in XSLT, especially with large amounts of data. With that said, not all textual humanities data is big, and not all statistical computation and graphing is prohibitively complex computationally. This report begins to explore the possibility of developing support libraries for statistical computation and graphing without leaving the XML ecosystem.[4]

All code described in this report, with documentation, is available at https://github.com/djbpitt/plot under a GPL 3.0 license.

Preliminaries

Descriptive and inferential statistics

Descriptive statistics deals with the computation of features (called parameters) of sets of data (called populations).[5] Descriptive statistics can be contrasted to inferential statistics, which makes predictions (called statistics) about a population on the basis of a subset of the population data (called a sample). It is not our place to generalize about the relative need for decriptive and inferential statistics in the community of computational textual humanists, but because our own needs have been entirely descriptive, in situations where descriptive and inferential methods differ (e.g., the computation of a standard deviation), we have implemented the descriptive versions of the formulae.

What to plot

One of the main purposes of plotting lines or curves that pass through or by points in two-dimensional space is to highlight trends in the values.[6] This type of plotting makes sense for some, but not all, types of two-dimensional data. The library functions introduced here make the following simplifying assumptions, with the understanding that these are not intended to accommodate all possible data relationships and visualizations:[7]

  • Independent and dependent variables. There is an independent variable along the X axis and a dependent variable along the Y axis.[8]

  • The independent values, along the X axis, are numerical: either discrete, like integers, or continuous, like doubles. These numerical values are ordered monotonically on the X axis.[9]

  • The dependent values are also numerical, and their values are also arranged on the Y axis in their natural numerical order.

  • Trends are not intermediate values. Because lines, polylines, and splines are continuous, they may seem to create a visual impression of describing intermediate values. For example, if the values on the X axis are years (discrete numerical values) and the Y value changes between consecutive years, a sloping connecting line or curve between adjacent points does not describe any real data between one year and the next. And where the values on the X axis are continuous, so that there could in principle be intermediate values between two real ones, in descriptive statistics we do not infer values for data that is not part of the population. While it may be informally common-sensical that a trend suggests likely missing intermediate values, connecting lines or curves in a descriptive context should nonetheless be regarded as representing the shape of a trend observed in the population, and not a prediction about lacunae in the data.

Architecture

The code discussed here observes the following design strategies:

  • Deploy as a package. The <xsl:package> feature of XSLT 3.0 improves on the support for modular development available through <xsl:import> or <xsl:include>. In particular, <xsl:package> allows the developer to distinguish public from private components, about which see below. The XSLT 3.0 specification leaves the method of resolving package locations to the discretion of the implementation, and we use a Saxon configuration file to manage the mapping of package name to filesystem object.

  • Validate input first. Our implementation of the functions illustrated here specifies datatypes for all XSLT elements that support the @as attribute, but except in the case of schema-aware validation, XSLT 3.0 does not support validation of complex, user-defined types. The code discussed here does not use schema-aware validation because it is intended to run under Saxon HE. For that reason, we use conditional expressions (e.g., <xsl:if>) to check the shape of the input parameters more strictly than would be possible solely through (non-schema-aware) datatype validation, and we terminate execution with an informative error message when a function encounters bad data.[10]

  • Functions are simple and self-contained. Functions do only one thing and use only data provided through parameters.[11] The library functions have no dependencies on global (stylesheet) variables.[12]

  • Expose public functions and variables. The only functions exposed by the library are those that are intended to be called directly by end-users. The only variables exposed are those that the user might want to overwrite.

  • Hide private helper functions. All functions and variables that are not public are left as private. Users are unlikely to call functions directly that are not intended to be called directly, so the main point of hiding them is not to prevent their use, but to reduce clutter by preventing their being shown in a content-completion prompt.

  • Reuse code to support default values and multiple arities. XSLT function parameters cannot be optional, which means that XSLT does not provide a convenient way to declare a default value for parameters not supplied when a function is called. We work around this limitation by writing the function with the highest arity first, and then declaring lower-arity versions with the same name that supply the missing default values and pass the call along to the highest-arity version. For example, the djb:spline#3 function expects supplied values for $points (the points to plot), $scaling (the curviness of the spline), and $debug (whether to output diagnostic information or just render the curve). spline#2 accepts only the first two of those arguments, and defaults $debug to False. spline#1 accepts only $points, and defaults $scaling to 0.4 and $debug to False.

First functions

Overview

The initial motivation for beginning with the three types of tasks introduced here came from our need to output curved splines, instead of segmented polylines, to connect points in a line graph. We then developed additional functions to support analytic representations of information in those graphs. Specifically:

  • A Bézier spline will connect all points supplied in the input with Bézier curves, rather than straight line segments.

  • Although a spline uses soft curves through the data points instead of abrupt angles, if there are extreme fluctuations in the data, it may nonetheless be difficult to discern whether the data observes any trend. Smoothing provides a method of reducing extreme values, which can make it easier to discern a trend that spreads across the data. Data points can be piped first through smoothing (to flatten extreme fluctuations) and then into spline drawing, resulting in a smoother, flatter spline. We implement several types of smoothing (see below).

  • Linear regression computes a function that approximates a trend in changes in value across a sequence of data points. We implement linear regression using the predominant least squares method, which plots a line or other shape that minimizes the total squared distances of the data points from the values output by the regression function. [Brown 2019] The simplest, and perhaps most common, type of linear regression yields a function that describes a straight line through the data points (drawn with an SVG <line> element), but linear regression can also describe parabolas and more complex shapes.[13] Our implementation provides functions that plot straight lines and parabolic arcs.

Of these three sets of functions, only the Bézier spline plots the actual data points supplied as input. Smoothing and linear regression, on the other hand, transform the original points. We think, then, of the spline function as a visualization tool, while the other functions discussed here are analytical tools that create new data points, which can then be plotted using lines, parabolas, or splines.

Bézier splines

The Bézier spline is a drawing instruction, accepting as input the points that would be used to plot a polyline (sequence of connected line segments, that is, a traditional saw-toothed line graph) and returning a smoothed curve that passes through those points. We provide the following functions:

djb:spline($points as xs:string+, $scaling as xs:double, $debug as xs:boolean)

The value of $points is a sequence of at least three pairs of X,Y coordinates. The X and Y values must be castable as doubles and separated by a comma, and there must be no whitespace.[14] The value of $scaling is a double that ranges from 0 (which outputs a polyline with angled transitions at the knots, that is, the place where segments meet) to 1. Higher values produce curvier splines, and values between .2 and .5 yield the most aesthetically satisfying results. When $debug is set, the output includes visual representations of points and lines used to compute the coordinates for the Bézier curve segments; this is illustrated below in Figure 1.

djb:spline($points as xs:string+, $scaling as xs:double)

The arity-2 version of the function calls the arity-3 version with a default $debug value of False.

djb:spline($points as xs:string+)

The arity-1 version of the function calls the arity-3 version with a default $debug value of False and a default $scaling value of 0.4.

The @d attribute of the SVG <path> element (see SVG Path) can describe quadratic and cubic Bézier curves, but in order to do so the user must supply X and Y coordinates for the endpoints of the curve segments and the control points (also called anchors or handles) that determine the shape of the segment. The endpoints are given in the input, which means that the challenge in drawing a spline instead of a polyline lies in computing the coordinates of the control points. We implement an adaptation of the methods described by Berkers 2015 for PHP and Embry 2015 for JavaScript; below is sample output:

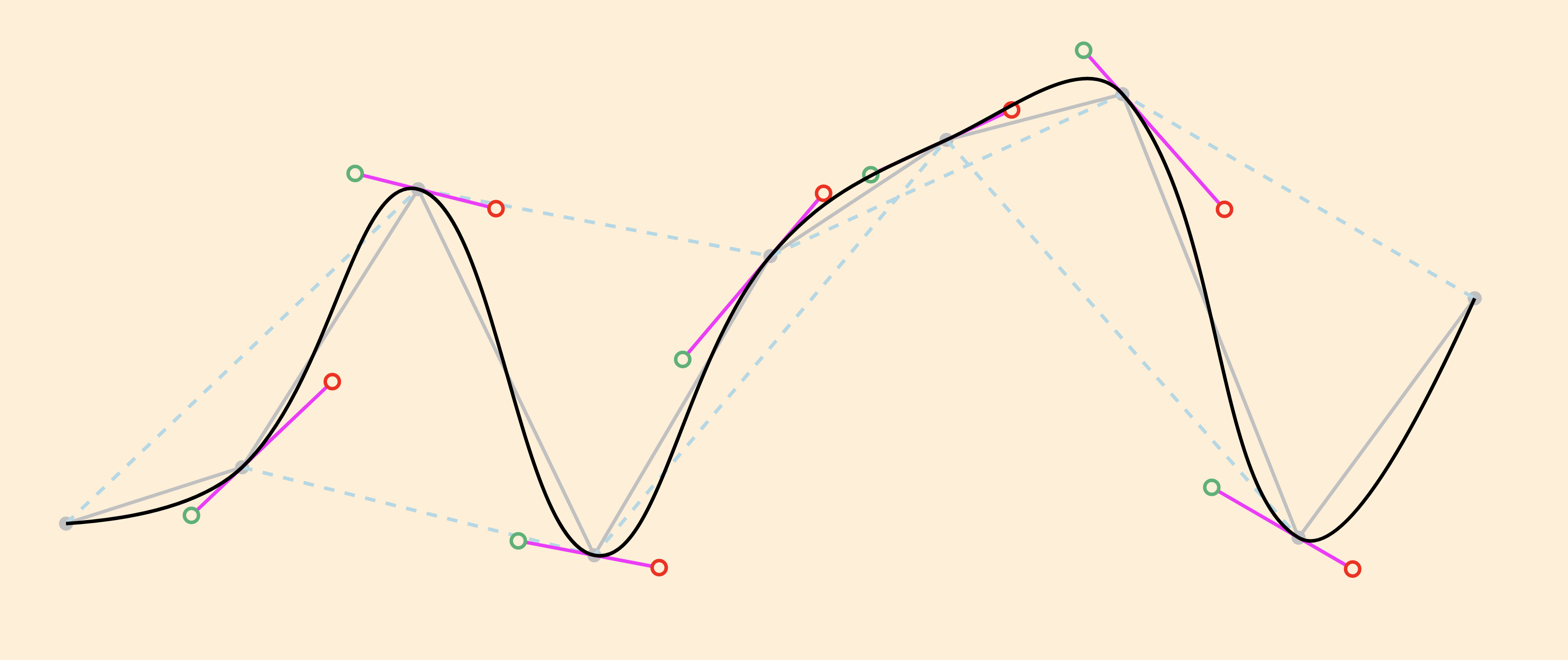

Figure 1: Spline example

The value of $points is a sequence of data points represented, in this example, by the strings '50,182' '100,166' '150,87' '200,191' '250,106' '300,73' '350,60' '400,186' '450,118'. We set $scaling to 0.4 and $debug to True, which causes the function to output not only the spline, but also the original points and line segments connecting them (gray), joining lines that determine the slope of the control lines (dotted pale blue), control lines (fuchsia), and incoming and outgoing control points (green and red, respectively).

We use our djb:spline() function below in pipelines, where our smoothing functions compute adjusted Y values, which can then be plotted in various ways, e.g., as a spline, as points, or as a polyline. We can think, then, of a distribution of responsibility where the smoothing functions determine modified point coordinates in a way that is agnostic about presentation, and those adjusted coordinates can then be passed into the spline function or an SVG <polyline> in a way that is agnostic about the source and meaning of the data.

Least squares linear regression

A least-squares regression equation defines a line or curve that minimizes the squared Y distances of that line or curve from all points, that is, that comes as close as possible to describing the relationship between the independent and dependent variables. The simplest regression equation plots a straight line; more complex equations can include any number of curves or bends. We implement functions to plot straight lines and parabolic curves.

Regression lines

Least squares regression functions to plot straight regression lines can be derived using standard XPath mathematical functions and operators: addition, subtraction, multiplication, division, exponentiation, and the sum() function. We provide the following functions:

djb:regression-line($points as xs:string+, $debug as xs:boolean?)

This plots a straight regression line, where $points has the same lexical shape as the $points argument to the djb:spline() function (see above). If $debug is True, the function also returns, in an XPath map, the values of the slope and intercept used to plot the line.

djb:regression-line($points as xs:string)

The arity-1 version of the function calls the arity-2 version with a $debug value of False.

The following illustration shows a regression line:

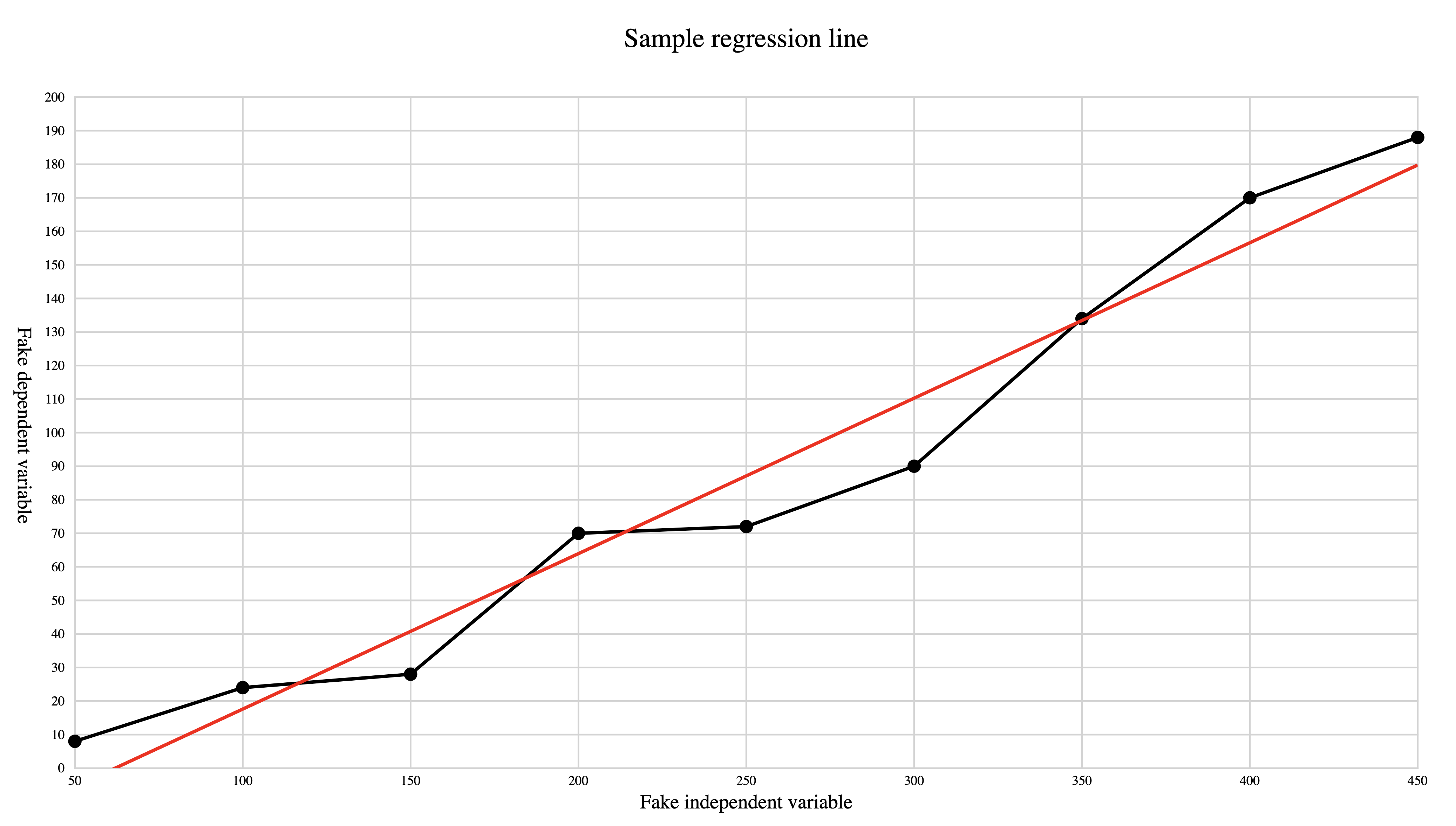

Figure 2: Sample regression line

The regression line is plotted to minimize the squared vertical distances of all data points from the line, that is, to pass as closely to all points as is possible. The line is drawn from the smallest X value to the largest; we use an SVG clip path to avoid overflowing the designated coordinate space (in this example the lower left corner of the regression line would reach below the X axis).[15]

Regression parabolas

Much as least squares can be used to fit a straight regression line, it can also fit more complex shapes. A straight line is described by y = ax + b , where a is the slope of the line and b is the Y intercept, that is, the Y value when X = 0. A parabola is described by y = ax2 + bx + c . We provide the following function:

djb:plot-parabolic-segment($points as xs:string+, $x1 as xs:double, $x2 as xs:double)

Uses the full set of points to compute the parabolic function and then plots a parabolic segment between the two X values.

The following illustration shows a regression line and regression parabola for the same points:

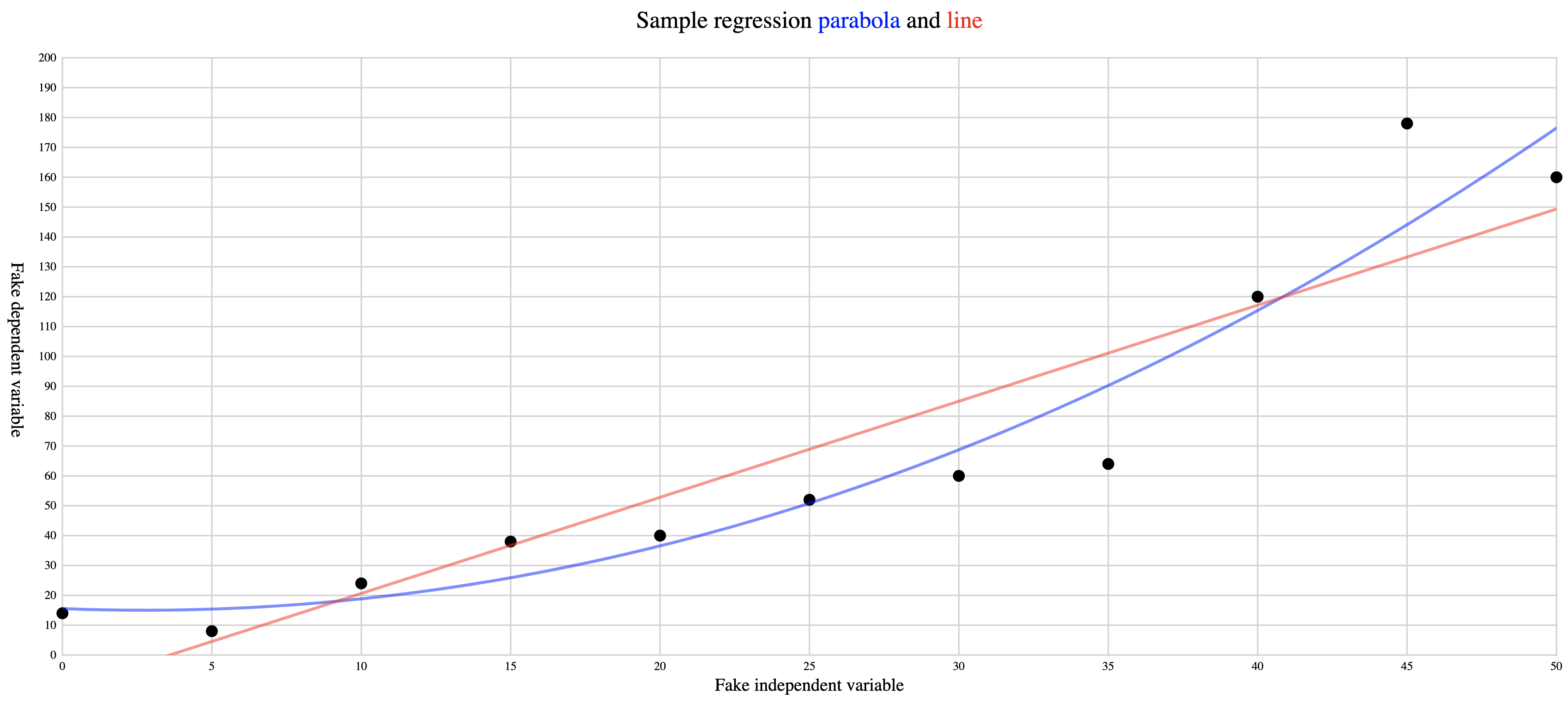

Figure 3: Sample regression line and regression parabola

The regression line and regression parabola are both plotted to minimize the squared vertical distances of all data points from the line, that is, to pass as closely to all points as is possible. Both are drawn from the smallest X value to the largest; we use an SVG clip path to avoid overflowing the designated coordinate space (in this example the lower left corner of the regression line [although not the parabola] would reach below the X axis).

Smoothing

Jittery data points, that is, data where the Y values of adjacent points may vary by large amounts, can obscure trends in the data. Replacing the original Y value of a point with an average of its value combined with those of a specified number of its nearest neighbors (this range is called the window or bandwidth) can reduce the effect of extreme fluctuations and make a trend more perceptible. The simplest version of this sort of rolling average is unweighted, that is, it computes the arithmetic mean of the points contained in the window, where each point within the window contributes equally to the averaged value.

In situations where it is desirable for points closer to the focus (the presumptive center of the window) to be weighted more heavily than those toward the periphery, though, a non-constant smoothing function (called a kernel) can be applied to the points before their weights are averaged.[16] A weighted kernel function normally weights the points in the window in inverse proportion to their distance from the focus, so that the focal point receives full weight, its nearest neighbors in either direction less weight, neighbors just beyond those still less weight, etc. The choice of a kernel function determines how much each point in the window influences the new computed value, and the image below illustrates how some of the available functions adjust the assigned weights as they move from the focus (weight of 1, at the far left) further away (further to the right).

Figure 4: Smoothing functions

These functions all assign full weight to the focal point and progressively less weight to points that are further from the focus in either direction.

We work with a symmetrical window that assigns equivalent value to point before and points after the focus. This decision means, though, that we run out of neighboring points on one side or the other as the focus nears the extreme X values on either end. Any solution needs to cope, in one way or another, with the asymmetry inherent in the fact that the first point has no preceding neighbors and the last point has no following ones.

Some implementations negotiate this edge phenomenon by using a trailing window, instead of a symmetrical one. With a trailing window size of 5, for example, the points that contribute to computing a smoothed value for point 5 are points 1–5, those for point 6 are 2–6, etc. A trailing window begins to report values only once there are enough points before the focus to make up the window.[17] Other implementations cope with asymmetrical input at the edges by not computing a smoothed value there at all.[18] Our approach instead plots edge values by recruiting additional points from the other side, as needed. For example, with a window size of 5, the computations for points 1 through 3 all use a window that ranges from point 1 through point 5, but with different focal points, and therefore with different weights for the five window points.[19]

Some kernel functions (harmonic, exponential, Gaussian) approach 0 asymptotically and can therefore be applied to a window of any size, although extending the window size beyond the point where the function approaches 0 has negligible influence on the result. Other functions (triangular, parabolic) may cross into negative values or increase again after reaching 0, and therefore need to include the window size in their computation.

The following example shows how the output of the smoothing operation is shaped by the choice of kernel function.

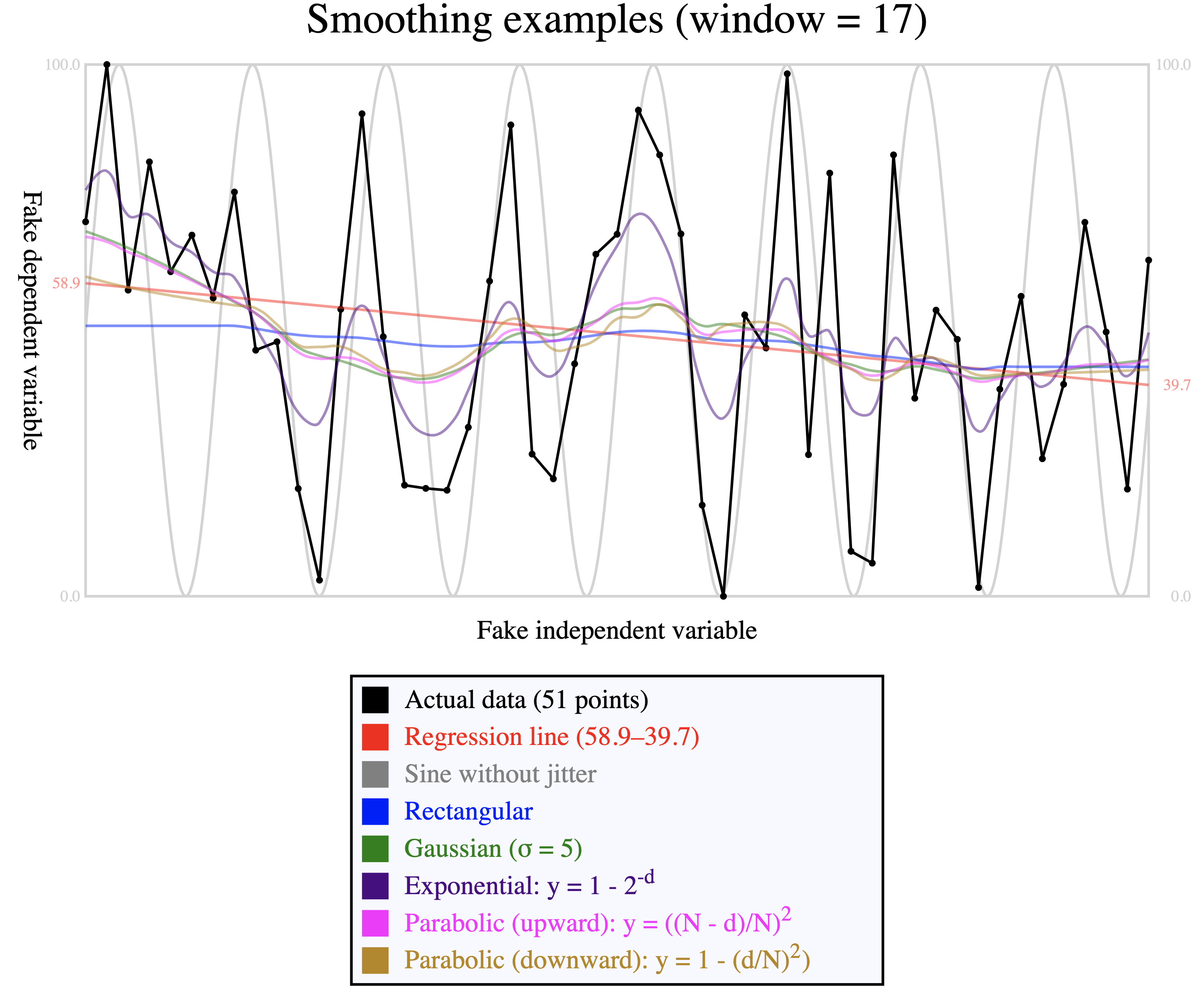

Comparison of smoothing function: Comparison of smoothing functions

This image was created by generating a sine wave (light gray). The values created by that function are then distorted by adding random jitter and recentering between 0 and 100 (the actual data, in black). We set a window equal to one third of the data; larger windows produce smoother curves, while smaller windows leave more jitter. The curves differ according to the kernel applied because the way in which the new value is influenced by its neighbors depends on how quickly the weighting curve decreases. For reasons described above, the rectangular kernel plots a straight horizontal line for the first and last eight data points.

The most useful kernel and window size depends on the shape of the data, and is therefore left under the control of the user, and the process is to create a sequence of weights according to the desired kernel and then rewrite the Y values by smoothing them according to those weights. We provide the following functions:

djb:get-weighted-points($points as xs:string+, $kernel as xs:string, $window-size as xs:integer, $stddev as xs:integer) as xs:string+

The points are original points as strings in X,Y format. Supported kernel values are gaussian, rectangular, exponential, parabolic-up, and parabolic-down. The window size must be a positive odd integer greater than or equal to 3. The standard deviation is relevant only for the Gaussian kernel, and is otherwise ignored. The function returns a sequence of points, in the same format as the original, with new Y values computed according to the kernel and window size.

djb:get-weighted-points($points as xs:string+, $kernel as xs:string, $window-size as xs:integer) as xs:double+

As above, but without specifying the standard deviation, for which a default value of 5 is supplied. As noted above, the standard deviation is relevant only for the Gaussian distribution.

Smoothing should be used carefully, and acknowledged explicitly, because it involves rewriting, and not merely organizing, the data. Smoothing relies on the assumptions that extreme local fluctuation is noise, rather than signal, and that noise is random, so that removing it wherever it occurs does not distort (and, on the contrary, reveals) any overall trend. Where this assumption is incorrect, smoothing risks removing variation that we might care about—that is, removing signal, and not only noise.

Retrospective

Development of the functions described here has served two purposes. On the one hand, we had encountered situations in actual projects where we would have used some of them (especially spline plotting) had it been readily available, and we anticipate using some of these functions in actual projects in the future. Beyond that, though, the experimental aspect of this exploration encourages us, now looking forward, to resist the temptation to use XSLT only to extract and export data that we then visualize in traditional statistical programming contexts (e.g., Python Pandas, Julia, R, Microsoft Excel, D3.js). Instead, once we are already using XSLT to process XML input because XSLT is a superior language for that purpose, and once we are already using SVG (an XML vocabulary) for data visualization because of the advantages it offers over raster graphics for that purpose, we are newly encouraged to think about harmonizing our workflow by looking more closely and deeply into XSLT also for solutions to statistical computation and plotting tasks.[20]

Implementing statistical computation and plotting in XSLT has been challenging because it requires not only specific XSLT programming skills (that is, different skills from those that typically predominate in digital text processing), but also an understanding of statistics and advanced mathematics that has not traditionally been part of the training of humanities scholars. To be sure, using pre-existing statistical plotting functions responsibly also requires an understanding of statistical assumptions and methods that has not traditionally been part of that training, but learning to use functions that someone else has developed is nonetheless less challenging than implementing them from scratch. Whether the first steps, illustrated here, toward an open-source XSLT function library will encourage community participation and uptake remains to be seen, but these modest early successes encourage us to be optimistic about the potential.

Future prospects

Expanded functionality

The functions described above are a small portion of the types of computation and presentation that are available in other analytic environments, such as Pandas, Julia, R, and D3.js. Charts and graphs supported by D3 includes bar, boxplot, chord, dendrogram, density, doughnut, heatmap, histogram, line, lollipop, network, parallel, pie, radar, ridgeline, sankey, scatter, stream, treemap, violin, and others, and many of those depend on fundamental statistical computation (e.g., the Tukey five-number summary for boxplots, kernel density curves for violin plots, and others). Beyond the computation and plotting, in R, for example, functions that provide these visualizations accept parameters to specify axis and chart labels, legends, data labels, and other types of documentation that are needed for effective data visualization. Providing this functionality within an XSLT context could be valuable to developers who currently offload responsibility for statistical computation and visualization onto non-XML tools and frameworks that rely on languages in which they have less expertise than XSLT.

XQuery

We performed our initial implementation in XSLT, but if there is a need for or interest in similar functionality in XQuery, translating the XSLT implementations to XQuery is straightforward.

Interactive animation

Graphic visualization can benefit from interactivity that may range from relatively straightforward highlighting on demand to more complex on-the-fly computation of values and re-plotting of graph and chart objects in response to dynamic user input.[21] More ambitiously, the extremely capable JavaScript D3.js library, which also generates SVG, is richly interactive, and nothing precludes augmenting the functions introduced here to support comparable interactivity.

Especially in the context of the desire to remain within the XML ecosystem that motivated this experiment with statistical plotting initially, the recent release of Saxon-JS 2.0 invites us to explore how XSLT, and not only JavaScript, can be used to control interactive behaviors. As Saxon JS writes:

Because people want to write rich interactive client-side applications, Saxon-JS does far more than simply converting XML to HTML, in the way that the original client-side XSLT 1.0 engines did. Instead, the stylesheet can contain rules that respond to user input, such as clicking on buttons, filling in form fields, or hovering the mouse. These events trigger template rules in the stylesheet which can be used to read additional data and modify the content of the HTML page.

We look forward to exploring this type of XSLT-based interactive functionality in situations where we might previously have relied exclusively on JavaScript.

Appendix A. Statistical glossary and formulae

Anchor points

See control points.

Bézier curve

A curve described by two endpoints and one (quadratic) or two (cubic) control points that do not lie on the curve. Supported as part of the @d attribute of the SVG <path> element.

Control points

Also called anchor points or handles. The shape of a Bézier curve is described by its endpoints and its control points.

Cubic

A cubic Bézier curve has two control points and is capable of bending in up to two places (S shape). We use cubic Bézier curves to draw all of the curve segments of our spline except the first and last, which we draw as quadratic Bézier curves.

Descriptive statistics

Quantitative analysis of a population, which yields parameters. Cf. inferential statistics.

Endpoints

The points that mark the beginning and end of a line segment or Bézier curve. The shape of a Bézier curve is defined by a combination of its endpoints and its control points.

Focus

We use the term focus in the context of kernel smoothing to refer to the point at the presumptive center of the window. We qualify the center as presumptive because we keep the window size constant, and if there are not enough points on both sides of the focal point to fully populate the window symmetrically, additional points are recruited from the longer side to compensate for running out of points on the shorter side.

Handles

See control points.

Inferential statistics

Quantitative analysis of a sample, which yields statistics. Cf. descriptive statistics.

Kernel

A function used to control weighted smoothing. Different kernels assign different weights to points according to their distance from the focus.

Least squares

A way of computating a regression function that minimizes the sum of the squared Y distances of all points from the regression line or curve. This is the predominant method used in linear regression.

Linear regression

A model that uses an equation to approximate the relationship between independent and dependent variables. The equations may describe lines or more complex shapes. Linear regression often uses least squares to compute a function that describes a straight line or curve that comes as close as possible to the actual data values.

Mean

Sum of values divided by count of values. Supported natively by the XPath avg() function.

Parameter

Descriptive analytic measurement of a population. Cf. statistic.

Polyline

Connected line segments, supported by the SVG <polyline> element.

Population

All items of interest, appropriate for descriptive statistics. Cf. sample and inferential statistics.

Quadratic

A quadratic Bézier curve has one control point and is capable of bending in one place. We use quadratic Bézier curves to draw the first and last curve segments of our spline; we draw the intermediary segments as cubic Bézier curves.

Regression function

A function that describes a line or curve that approximates the relationship of independent and dependent variables.

Sample

Part of the population, from which inferences are drawn, using inferential statistics, about the population. Cf. population and descriptive statistics.

Smoothing

A method of simplifying a relationship between independent and dependent variables by reducing random noise to make it easier to perceive trends in a signal.

Spline

Continuous smooth curve connecting a sequence of points. Can be described with the @d attribute of the SVG <path> element.

Standard deviation

σ = √{ ∑(xi-µ)2/n} where µ is the population mean and n is the population size. This is the square root of the average squared deviation from the mean, that is, the square root of the variance.

Statistic

Inferential analytic measure of a sample. Cf. parameter.

Variance

Average squared deviation from the mean. σ2 = { ∑(xi-µ)2/n} where µ is the population mean and n is the population size. The variance is the value of the standard deviation squared.

References

[Berkers 2015] Berkers, Giel. 2015. Drawing a smooth bezier line through several points. https://gielberkers.com/drawing-a-smooth-bezier-line-through-several-points/

[Bostok et al. 2011] Bostock, Michael, Vadim Ogievetsky, and Jeffrey Heer. 2011. D3: Data-driven documents. IEEE Trans. Visualization & Comp. Graphics (Proc. InfoVis), https://idl.cs.washington.edu/papers/d3

[Brown 2019] Brown, Stan. 2019. Least squares — the gory details. How do we find the line of best fit? https://brownmath.com/stat/leastsq.htm

[D3.js] D3: data driven documents. https://d3js.org

[EXSLT-math] EXSLT-math. http://exslt.org/math/

[Embry 2015] Embry, Coty. 2015. Spline interpolation with cubic Bézier curves using SVG and path (make lines curvy). https://www.youtube.com/watch?v=o9tY9eQ0DgU

[FunctX] FunctX XQuery Function Library. xqueryfunctions.com

[Julia] The Julia programming language. https://julialang.org/

[Kernel functions] Kernel functions in common use. https://en.wikipedia.org/wiki/Kernel_(statistics)#Kernel_functions_in_common_use

[Orloff and Bloom 2014] Linear regression. https://ocw.mit.edu/courses/mathematics/18-05-introduction-to-probability-and-statistics-spring-2014/readings/MIT18_05S14_Reading25.pdf

[Pandas] Pandas. https://pandas.pydata.org/

[Quadratic regression] Quadratic Regression – Definition, Formula, Example. https://www.easycalculation.com/statistics/learn-quadratic-regression.php

[R] R project for statistical computing, the. https://www.r-project.org/

[Saxon threads] saxon:threads. https://www.saxonica.com/documentation/index.html#!extensions/attributes/threads

[Saxon extension functions] Functions in namespace http://saxon.sf.net/. http://www.saxonica.com/documentation/index.html#!functions/saxon

[Saxon JS] About Saxon-JS. https://www.saxonica.com/saxon-js/documentation/

[Stackoverflow, Parabola] Fastest way to fit a parabola to set of points? https://stackoverflow.com/questions/4039039/fastest-way-to-fit-a-parabola-to-set-of-points

[SVG Path] The cubic Bézier curve commands. SVG 1.1 (Second edition) – 16 August 2011, §8.3.6. https://www.w3.org/TR/2011/REC-SVG11-20110816/paths.html#PathDataCubicBezierCommands

[Vigen, Spurious] Vigen, Tyler. Suprious correlations. https://tylervigen.com/spurious-correlations

[XPath] XML Path Language (XPath) 3.0. W3C Recommendation 08 April 2014. http://www.w3.org/TR/xpath-30/

[XPath functions] XPath and XQuery Functions and Operators 3.1. W3C Recommendation 21 March 2017. https://www.w3.org/TR/xpath-functions/

[XQuery] XQuery 3.1: An XML Query Language. W3C Recommendation 21 March 2017. https://www.w3.org/TR/xquery-31/

[XSLT] XSL Transformations (XSLT) Version 3.0. W3C Recommendation 8 June 2017. https://www.w3.org/TR/xslt-30/



[1] See Bostok et al. 2011 for information about the history of D3 and D3 gallery for sample visualizations.

[2] XPath 3.1 provides support for basic arithmetic in the default function namespace (http://www.w3.org/2005/xpath-functions, conventionally bound to the prefix fn:), as well as some more mathematically advanced or complex functionality (trigonometric functions, exponentiation and logarithms) in a separate mathematical namespace (http://www.w3.org/2005/xpath-functions/math, conventionally bound to the prefix math:). Most mathematical functions that were supported earlier only as EXSLT-math extensions (in the http://exslt.org/math namespace, originally bound conventionally to the prefix math:, and now to exslt-math: because math: is in common use for http://www.w3.org/2005/xpath-functions/math) have been added to one or the other of these namespaces, or, within Saxon, as extensions in the http://saxon.sf.net/ namespace (conventionally bound to the prefix saxon:). There is no function support for calculus or linear algebra in the standard libraries, in EXSLT-math, or in the popular FunctX extension library. See XPath functions, EXSLT-math, Saxon extension functions, and FunctX.

[3] One exception is the @saxon:threads extension attribute available on <xsl:for-each> in Saxon EE, about which see Saxon threads.

[4] The author is grateful to Emmanuel Château-Dutier for productive conversations, comments, and suggestions.

[5] Statistical terms used in this report are listed and defined in Appendix A.

[6] In inferential statistics these trends would support predictions about values not represented directly in the sample. In a descriptive context, a trend is a summary perspective on some properties of the distribution of actual observations.

[7] We concentrate in this report on two-dimensional scatter plots, which occupy a small part of the graphic visualization universe. A more complete XSLT and SVG graphics library would include other types of plots (e.g., bar charts, pie charts, to cite only the most familiar examples), for which these assumptions would not apply for reasons that include dimensionality, data categories, and presentational geometry.

[8] Other terms may be used for these concepts (e.g., explanatory and response variable, respectively), but regardless of the terminology, the assumption is that one variable changes under the influence of the other (for example, death may be caused, at a certain rate, by specific diseases, but disease is not caused by death). Not all relationships involve a single independent and a single dependent variable, and not all apparent correlations are meaningful (for an amusing perspective on which see Vigen, Spurious). Our examples arrange the independent variable along the X axis and the dependent variable along the Y axis, as is common, but nothing prevents us from inverting that presentation, so that the X value changes in response to the Y one.

[9] Categorical data, which does not have a natural order comparable to that of numerical data, does not describe a trend. Ordinal data has a natural order without being explicitly numeric. For example, ordinal ratings like excellent, good, fair, and poor can be arranged from best to worst or vice versa, but there is no natural way to quantify the distance between adjacent values. That is, the distance between ordinal values like “good” and “excellent” cannot be expressed with the same sort of accuracy as the arithemetic distance between the numerical values “3” and “4”.

[10] At the moment we raise errors with the XPath error() function, rather than with <xsl:message terminate="yes">, because Saxon through version 10.1 handles error reporting from error() and <xsl:message> differently, and our XSpec unit tests can trap error() more easily. This makes it possible to test constraints beyond standard datatyping (e.g., a requirement that a parameter value be not just an integer, but a positive odd integer greater than 3) by supplying illegal values in an XSpec test that expects a dynamic error to be raised.

[11] In the current version of the Bézier spline code, two public variables are declared at the package level. Functions that accept a $debug parameter may write diagnostic information to stderr (using <xsl:message>), and may return a complex result. For example, the function that plots a regression line returns an SVG <line> element; when the value of $debug is true, it also returns the slope and intercept values in an XPath map.

[12] We use the http://www.obdurodon.org namespace, bound to the prefix djb:, for library functions and the http://www.obdurodon.org/function-variables namespace, bound to the prefix f:, for function parameters and variables. This ensures that no fully qualified function parameter or variable name will clash with the fully qualified name of any stylesheet parameter or variable.

[13] We can also use linear regression to fit polynomials to data. The use of the word linear in both cases may seem confusing. This is because the word ‘linear’ in linear regression does not refer to fitting a line. Rather it refers to the linear algebraic equations for the unknown parameters βi, i.e. each βi has exponent 1. … A parabola has the formula y = β0 + β1xx + β2x2. [Orloff and Bloom 2014 4–5]

For information about fitting a parabola to a set of points using least squares regression see Quadratic regression and Stackoverflow, Parabola.

[14] We impose stricter lexical constraints, specifically with respect to whitespace, on the input than SVG requires for the @d attribute on <path> elements because the looser constraints in SVG add no meaningful functionality and are more difficult to debug.

[15] Clip paths are declared with <clipPath> and invoked (confusingly, because the spelling differs) with @clip-path.

[16] A constant smoothing function, where all points in the window are weighted identically, is called a rectangular kernel. For examples of kernels in common use see Kernel functions.

[17] The use of a trailing, rather than symmetrical, window embeds a tacit assumption that preceding points are meaningful in a way that following points are not. This assumption may be correct in some time-series situations, where a trend incorporates a knowledge of and possible response to previous values, while future values are unknown. It is not, on the other hand, especially likely to be correct with other types of ordered series, such as the number of characters on stage in a scene of a play or the number of lines in a poetic stanza.

[18] Not reporting values at the edges has the advantage of computing all points on the basis of exactly the same type of neighboring data. It has the disadvantage of reporting nothing at the edges, although there is some meaningful neighboring information there, even though it is not the same as in other locations in the sequence of values.

[19] This introduces distortion at the edges of the smoothed values, which is most noticeable as a straight horizontal line at either end of the curve described by a rectangular kernel, since the absence of differential weighting in a rectangular kernel means that all focal points within the same window are averaged to the same value, regardless of whether they are centered in the window or skewed toward one or the other side.

[20] The suitability of XSLT for these purposes is improved by 3.0 features, of which we currently use packages, higher-order functions, iteration, maps, and arrays.

The advantages of SVG in camparison to raster images for data visualization includes scalability without pixelation, compactness (especially in the case of charts and graphs that consist primarily of regular geometric shapes), and ease of integration with JavaScript for dynamic interactivity in a Web context.

[21] As an example of the use of animation, the Comparison of smoothing function illustration in this report may be difficult to read because of the number of lines it includes, and it was not actually designed for static viewing. The version rendered here is a static PNG because the Balisage proceedings do not support dynamic SVG images, but the PNG is a screenshot of an SVG file with JavaScript animation, available in the project GitHub repo, that highlights the corresponding curve when the user mouses over a colored rectangle in the legend, making it easy to see each curve clearly on demand.
