Balisage Paper: The Ugly Duckling No More

Using Page Layout Software to Format DITA Outputs

Autumn Cuellar

Technical Services Consultant

Quark Software

Autumn Cuellar has had a long and happy history with XML. Her first degree is in Biomedical Engineering, which led to a role as a researcher at the University of Auckland in New Zealand. There Autumn co-authored a metadata specification, explored the use of ontologies for advancing biological research, and developed CellML, an XML language for describing biological models. Since leaving the academic world, Autumn has been delighted to share her enthusiasm for XML in technical and enterprise applications. Previously at Design Science, her roles included MathML evangelism and working with standards bodies to provide guidance for inclusion of MathML in such standards as DITA and PDF/UA. Now at Quark Software, Autumn provides her XML expertise to organizations seeking to hide the XML for a better non-technical user experience.

Jason Aiken

Sr. Product Manager

Quark Software

Jason manages Quark Enterprise Solutions, a platform for content automation that streamlines the entire lifecycle of high-value content – from creation to delivery. He coordinates with strategic partners and product engineering to help clients across financial services, manufacturing, life sciences and government reinvent and modernize their content strategies. With two decades of experience in technical publishing and content management, including products and services for aerospace and biomedical devices, Jason consistently advocates for technical solutions which improve user experience and simplify business process. Jason has a MS in IT System Design & Programming from Capella University.

Copyright © Quark Software, Inc.


DITA is growing in popularity as a document standard and is now being used across a range of industries. As DITA grows beyond the scope of technical publications and as businesses become more concerned about branding documents across the organization, the current methods of coding templates to format DITA output are no longer sufficient for document production. We'll explore using page layout software to design complex, visually rich templates for DITA and other XML document formats.

Table of Contents

A Brief History of Page Layout
The Current Landscape for PDF Output of DITA
Other Paths to PDF Output
Handing DITA Output Design Back to Designers
The Process with Page Layout Software
Analysis of Approach
Advantages and Challenges of Supporting DITA


Many organizations around the world are automating their production of business-critical content with great success. Much of the creation process can be automated by pulling from external sources such as stock databases, geolocation systems, and statistical analysis reports. Translation memory databases are growing in popularity as a method for helping automate localization of content. Publication and delivery of documents can often be performed without human intervention. Using advanced template structures, document assemblies can be pre-approved and generated at the push of a button with just-in-time resolution of content.

DITA, an OASIS XML standard for documents and best practices, has helped pave the way for content automation. DITA supports foreign content, enabling the inclusion of data from outside sources, and its specialization architecture allows publishing channels to be built on or customized from existing publishing systems.

The initial application area of DITA was computer software documentation at IBM. Up until fairly recently, DITA remained, for the most part, in the realm of technical content[1]. However, content producers of all kinds are now finding DITA to be a useful format for a wide range of applications. DITA is being used at universities, petroleum companies (Chevron, Schlumberger), non-profit organizations (FamilySearch, HealthWise), consortiums (World Agroforestry Centre) [Schengili-Roberts 2012], financial services organizations (Mastercard[2]), and a number of non-technical publishing companies.

The main hurdle for the adoption of DITA in non-technical applications has been the technical nature of DITA and the associated Open Toolkit, used for converting DITA XML to and from other formats. One writer notes (emphasis mine), “DITA for non-technical writers is very much a real option, with some planning and tweaking of tools and workflows” [Samuels 2014]. However, the required planning and tweaking can be a significant obstacle for resource-strapped organizations.

Among the difficulties facing non-technical content producers using DITA, perhaps the most challenging is the design of output layouts. In a recent survey conducted by SyncroSoft, a large number of respondents cited PDF customization as their biggest frustration in working with DITA [Coravu 2016]. As Hans Christian Andersen highlights in his acclaimed 1843 fairy tale “The Ugly Duckling”, some hatchlings are perceived very differently. This paper describes how page layout software can be used by non-technical designers to add complex design and organization to DITA hatchlings.

A Brief History of Page Layout

Layout design has for centuries been a visual, manual process. Books produced in monasteries in medieval times generally featured a central block of text, surrounded by an artist’s ornamental design, or illumination. Even to this day, through the invention of the printing press and later computers and printers, page layouts are sometimes modeled on these early manuscript layouts [Novin 2010].

Figure 1: An elaborately illuminated manuscript, dated 1413-1416

A public domain image provided by The British Library.

As soon as the graphics capabilities of computers could support it, layout design moved to the territory of software. High quality page production was opened to the masses through WYSIWYG applications ranging from word processors to desktop publishing software. One of the earliest desktop publishing programs was PageMaker, originally produced by Aldus and later acquired by Adobe. PageMaker made it possible for designers to quickly compose text and images in eye-catching layouts and then send those layouts to printers.

Computers also enable the automation of publishing, but in order to fulfill this promise, page design concepts had to be translated to a programming language to support precise replication of a design. To this end, languages such as TeX and troff were created early on, even prior to WYSIWYG design software. As various digital document formats have emerged, so too has stylesheet support for these formats, allowing templates for design elements such as paragraph and line spacing, font families, and colors to be applied uniformly to documents. Two stylesheet languages in particular are used frequently for providing templates for DITA outputs: Cascading Style Sheets (CSS) and XSL Formatting Objects (XSL-FO).

The Current Landscape for PDF Output of DITA

The DITA Open Toolkit (DITA-OT) is maintained separately from the DITA specification - it is an open source toolset for converting DITA to a variety of other formats including PDF and HTML, the most popular output formats for DITA. As most of the popular DITA outputs are XML-based and not difficult to produce, the rest of this paper will focus on PDF output, which gives users of DITA the most headaches. Print continues to be an important delivery channel. Many organizations still rely on PDF for pre-press printing. Additionally, PDF is a convenient and simple distribution channel for branded layout of longer documents intended for anyone to print. For these reasons and others, PDF garnered the top spot as respondents' most important output format for DITA in the previously mentioned SyncroSoft survey. [Coravu 2016]

For PDF output, the DITA-OT uses XSL-FO as an intermediate step. As the Open Toolkit is free and an active open source project, the DITA-OT is widely used for producing DITA outputs, especially as it is built in to many applications offering DITA support. Therefore, XSL-FO is the primary path by which PDF output is achieved. However, there are tools that use CSS for templating and others use a proprietary approach. Finally, some DITA implementers have chosen to convert DITA to HTML or Word as the intermediate step before publishing PDF output.


Out of the box, the DITA-OT is set up to use the Apache Formatting Objects Processor (FOP) publishing engine but can be configured to use the Antenna House Formatter or the RenderX XEP engine for producing PDF. The advantages of using XSL-FO for PDF output are three-fold: the DITA-OT is already set up to produce XSL-FO, an XSL-FO formatting engine (Apache FOP) is freely available, and XSL-FO is intended for paginated outputs and can reliably handle more complex layouts than CSS. These advantages cannot be over-estimated. With almost no work required, resource-strapped organizations can get up and running with PDF output in no time, and basic customization can be performed by modifying the XSLT files that ship with the DITA-OT.

However, once an organization goes beyond requiring basic customization of the DITA-OT, the costs in time and money to work with XSL-FO increase dramatically. WYSIWYG XSL-FO software typically only offers basic functionality. Therefore, in most cases, a skilled developer is required to customize PDF output and preferably one who knows XSL-FO (not entirely common).

Furthermore, while DITA promises interoperability and the DITA-OT offers much faster ramp-up time than starting from scratch, differences in how the various rendering engines support the XSL-FO specification also require consideration. After investing in format development for FOP, for example, significant testing and refactoring is required when switching to another engine for PDF production. Small differences in rendering output matter to demanding enterprise customers who must meet specific business requirements for complex and engaging layouts. For these reasons costs of maintenance for XSL-FO can be high.


CSS is also designed for formatting and styling of content, and because CSS is widely known and easy to use, some DITA implementers have chosen to rely on CSS instead of XSL-FO. SyncroSoft, the makers of the <oXygen/> XML editor, have developed an open source DITA-OT plug-in[3] that can convert DITA to PDF using CSS and either Prince XML or Antenna House Formatter, which can handle CSS as well as XSL-FO. Using a similar idea, some implementers first convert DITA to HTML/XHTML and then generate the PDF from the HTML using one of several applications available for this purpose, such as Prince XML.

The problem with CSS is that it was originally designed for web pages, for which pagination is not a priority. CSS2 does not have support for a number of features that XSL-FO supports, including multi-column layouts, items in margins such as footers and headers, page numbering, and cross-referencing particular page numbers. CSS3 introduced a Paged Media Module to help address some of these problems but not all [Harold & Means 2002]. Additionally, not all CSS formatting tools support the Paged Media Module. Depending on how complex the requirements are, CSS may not be sufficient.

Other Paths to PDF Output

Alternatives to XSL-FO and CSS do exist but are used more infrequently. Some implementations will convert DITA to another intermediate format such as Microsoft Word before publishing the document to PDF. The drawback here is that there are now two transformation processes to manage and two processes during which artifacts may be lost.

There are a few commercial PDF renderers on the market that do not rely on XSL-FO or CSS for formatting, including TopLeaf XML Publisher and Adobe FrameMaker. Both TopLeaf XML Publisher and Adobe FrameMaker provide a WYSIWYG interface for designing the page layout of the output PDF, but for both, this is a secondary goal, and, therefore, design functionality is neither comprehensive nor particularly easy to master. TopLeaf is built around XML; to customize DITA templates in TopLeaf, the designer must have some knowledge of DITA. FrameMaker is targeted to technical content, and as one blogger notes in comparing FrameMaker to Adobe’s page layout application InDesign, “The key question here is: How important is great, typographically-sophisticated, cool-looking, creative design to communicating technical information?” [Gold 2013]. The answer is “not very,” which is why Adobe has the two different products and which is why for “cool-looking, creative design” functionality designers do not turn to FrameMaker.

Handing DITA Output Design Back to Designers

Because of the current toolset offering, most of the design of DITA outputs is currently performed in code, by modifying XSLT or CSS files to produce the correct look for a set of documents. This is not ideal for a visual process dating back hundreds of years, of course, but it has been a tolerable state of affairs because DITA, until recently, has been used primarily for technical content, and traditionally technical content has not required particularly creative design. However, two trends are changing the landscape. Firstly, DITA’s popularity is growing for non-technical content produced by non-technical contributors, resulting in an increased demand for WYSIWYG design tools. Secondly, branding and user experience are becoming important priorities for businesses [Goodson 2012]. Branding touches all aspects of a business, including its technical publications, and user experience includes design. Incorporating high quality design into branding efforts creates a competitive advantage that businesses are using with success.

Complex page layout design is already available in desktop publishing software. Most rich-layout publications such as magazines and catalogs are built in InDesign or QuarkXPress, two tools that have carried on PageMaker’s legacy. Since today’s content automation world is built on XML, it shouldn’t be surprising that both InDesign and QuarkXPress have support for XML. This is our path forward for handing DITA layout design back to designers for producing complex, beautiful layouts that can be published to PDF and other outputs. As this author is familiar with QuarkXPress, the process will be described using Quark software, but a similar process can be applied using Adobe’s InDesign and InDesign Server.

The Process with Page Layout Software

QuarkXPress allows designers to place any number of design elements in a page layout in containers called Boxes. All Boxes in a layout have an associated unique identifier; the designer has the option to attach an easily recognizable name to the identifier. Additionally, a QuarkXPress project can include a number of other named variables and design elements. Variables can be used for static content, such as a copyright statement, or dynamic content, such as the publication date. All style preferences can be set in the project and named, from color palettes to table and list styles.

As well as being able to set the design and style preferences in a QuarkXPress project and providing identifiers for them, almost every aspect of a QuarkXPress project can be represented as XML. QuarkXPress’ XML doctype is known as Modifier. Modifier can be used to create or delete Boxes, change the properties of Boxes, such as shape or position, change the content of Boxes, change the style of the content of Boxes, and so on.

Putting the Modifier and a QuarkXPress project together is where the magic happens. The QuarkXPress project provides the template that guides the Modifier. For example, the QuarkXPress project might include a Box with the name of “Title” and two character styles, one with the name of “Main Title” setting the font size to 48pt and the other named “Subtitle” setting the font size to 36pt. The Modifier will then specify the strings to write to the “Title” Box with instructions of when to use the “Main Title” character style and when to use the “Subtitle” character style.

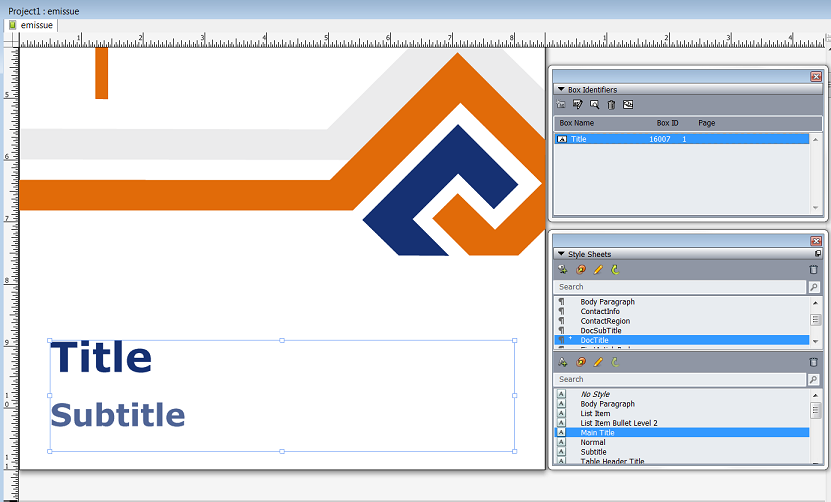

Figure 2: Example QuarkXPress Project Template

A QuarkXPress project containing a Box named "Title" and character styles "Main Title" and "Subtitle".

Figure 3: Example Modifier XML

	<ID NAME="Title"/>
				<RICHTEXT CHARSTYLE="Main Title">The Ugly Duckling No More</RICHTEXT>
				<RICHTEXT CHARSTYLE="Subtitle">Using Page Layout Software to Format DITA Outputs</RICHTEXT>

The <ID> element specifies the name of the Box to be modified, in this case "Title." CHARSTYLE attributes indicate the character style to apply to the contained text strings.

Because the Modifier schema is so closely related to the QuarkXPress project and because QuarkXPress is a mature design package, the use of Modifier with QuarkXPress enables organizations to create complex sets of documents. A project might consist of different layouts for different targets or various page designs for parts of chapters or articles (for example, first and last pages may use different design elements than middle pages). And all is at the control of the designer because the QuarkXPress templates dictate the boundaries within which the Modifier operates.

The engine that puts the Modifier and QuarkXPress project together and converts the XML to a new output format is the QuarkXPress Server. QuarkXPress Server can be used to automate conversion of large volumes of documents to a variety of different output formats including PDF and HTML. All that’s left in the pipeline is mapping DITA to Modifier, and given that both are XML languages for describing documents, this is a straightforward XSLT conversion. This conversion process is made even easier if implemented as a DITA-OT plug-in to leverage the DITA-OT's ability to process DITA maps, links, and references.

Analysis of Approach

As we’ve seen, several different paths can be used for formatting PDF output of DITA content – each has its advantages and drawbacks. Let’s highlight some of the strengths and weaknesses of using page layout software.

Because there needs to be a link between the XML and the design project, designers will either need to stay within the confines of the design project or know enough about the implementation to design around it. Following on the above example, if a designer creates a new design template, s/he will need to know that the project must have a Box with the name of “Title” or the title of the document will not appear in the output, or if the designer is modifying an existing template, s/he will need to know that the Box with the name of “Title” can be modified but not deleted. This might restrict how a layout designer normally works.

On the other hand, page layout software does provide a powerful mechanism for designers to add pizazz to DITA outputs through a WYSIWYG interface. Layout design is largely a visual process that depends on seeing how elements of a layout relate to other design elements on the page, and since InDesign and QuarkXPress are both mature applications, they have extensive functionality for making this process easier for designers, from providing color pickers for matching colors to Bezier pen tools for creating interesting shapes. Additionally, in certain areas, functionality of page layout software goes where XSL-FO cannot, such as with running text along odd shapes and curves.

Finally, high quality desktop publishing systems are commercial applications – this can be either a strength or weakness depending on your point of view. Some organizations will not want to spend the money on upfront software costs and instead prefer to use their own development resources to build on open source applications like Apache FOP. Others prefer to invest in tested, supported commercial products.

Advantages and Challenges of Supporting DITA

The main advantage of supporting DITA (beyond its widespread adoption) is the existence of the DITA-OT. Thanks to a large and active open source community, the DITA-OT is already set up to process large and complex DITA documents. In preprocessing steps the DITA-OT handles such tasks as validating the XML, applying filters, resolving references, and moving metadata. The DITA-OT is then able to pass an intermediate, simplified DITA file to an external rendering process, such as the QuarkXPress Server.

The primary challenge of supporting DITA is its sheer breadth. The All-Inclusive DITA 1.3 Specification, which includes the Technical Content and Learning & Training specializations, lists over 600 elements, and this does not include the elements allowed through foreign XML languages SVG and MathML. Many of the elements are specialized off of existing DITA base elements, which means that out-of-the-box support of these elements comes with DITA’s typing architecture. However, to consider a rendering engine to have full support of DITA 1.3, the rendering engine should distinguish specialized elements from the base elements.

Regarding SVG and MathML, neither QuarkXPress nor InDesign have native support for SVG or MathML. These XML formats can be converted to static images for use within these page layout applications, but then the inherent advantages of using these formats in the first place are lost, including accessibility and interactivity.

These challenges are certainly not insurmountable, and DITA support by page layout software will continue to improve. The more difficult branding requirements introduce challenges when DITA content is reused for other business units (e.g. marketing). Many design obstacles can be handled better by products which support high-fidelity page layout, but at the cost of automation. For example, the layouts most challenging to conventional XML-based publishing engines include features like irregular-sized graphics with text wraparound and multi-column layouts with callouts anchored to relevant text content. These difficulties can now be handled automatically with XML-aware layout engines, such as InDesign Server and QuarkXPress Server, used in concert with the DITA-OT.


As DITA continues to grow in popularity as a document format for non-technical industries and as branding and user experience become important priorities for organizations, demand grows for tools to make DITA easier to use and implement for non-technical authors and contributors. Chief among the pain points for DITA implementers is PDF customization – working with code is not always feasible for layout design, a process that for centuries has been a visual, manual process, nor does it allow for the rich design key to a great user experience. Using desktop publishing software QuarkXPress or InDesign, mature products for which the primary application is layout design, is one possibility for producing high-quality, rich-layout templates for use in PDF and other outputs.

Furthermore, because QuarkXPress and InDesign both support XML, a similar process can be used for other XML-based document formats. Smart Content [White 2015] has an extensible typed architecture like DITA but is simpler in nature (only a couple dozen elements in comparison to the 600+ elements in the DITA standard) and arguably more approachable to developers familiar with HTML-related standards. SmartContent is used extensively with QuarkXPress templates and has proven immensely successful for a broad range of enterprise organizations needing content automation coupled with engaging page layout. Using page layout software, all XML documents can become swans.
