How to cite this paper

Lumley, John. “Two from Three (in XSLT).” Presented at Balisage: The Markup Conference 2015, Washington, DC, August 11 - 14, 2015. In Proceedings of Balisage: The Markup Conference 2015. Balisage Series on Markup Technologies, vol. 15 (2015). https://doi.org/10.4242/BalisageVol15.Lumley01.

Balisage: The Markup Conference 2015
August 11 - 14, 2015

Balisage Paper: Two from Three (in XSLT)

John Lumley

jωL Research

Saxonica

A Cambridge engineer by background, John Lumley created the AI group at Cambridge Consultants in the early 1980s and then joined HPLabs Bristol as one of its founding members. He worked there for 25 years, managing and contributing in a variety of software/systems fields, latterly specialising in XSLT-based document engineering, in which he subsequently gained a PhD. He is currently helping develop the Saxon XSLT processor for Saxonica.

Copyright © 2015 jωL Research Ltd. All rights reserved.

Abstract

This paper discusses automated methods of 'downgrading' XSLT 3.0 programs into XSLT 2.0 syntax and semantics. The stimulus was running portions of a document processing system, that had been upgraded to use more coherent features of XSLT 3.0, in the environment of a browser-based standards-compliant XSLT 2.0 implementation (Saxon-CE). The work involves detailed knowledge of XSLT and is intended to automate significant sections of the 'downconversion', leaving other sections to conditional compilation directives. All conversion tools are of course written in XSLT and several aspects involve partial processing and evaluation of XSLT semantics within XSLT.

Table of Contents

Why?
The XSLT standards
XSLT 2.0 to XSLT 3.0
Why downgrade?
Assumptions
Similar work
Equivalent constructs
XSLT constructs
xsl:mode
xsl:iterate
Text value templates {}
xsl:evaluate
XPath expressions
let
map
Convenience functions and operators
|| (string concatenation)
! (simple map)
Compile-time modification
Transforming the code
Converting xsl:mode
Converting xsl:iterate
Converting text value templates
Converting map{}
Conditional compilation
Expanding XPath Expressions
Manipulating mixed XSLT/XPath trees
Inclusions
Testing
Conclusion
Can it process itself?
Further possibilities
Acknowledgements

Why?

For many problems in document engineering, exploiting the meta-syntax standard of XML, and the functional and declarative tree-transformational language XSLT, furnishes many advantages in both design efficiency, robustness and potential codebase reuse. Over the past 14 years the XSLT language has evolved through three major versions from an initial simple pattern-matching transformation mechanism to a complete (homoiconic) language with XML trees as the principal data type, functional properties and a large suite of suitable datatypes and extensive function libraries. Anyone working in document engineering using XML over that period would have tracked the changes in XSLT and often modified code to take advantage of the evolving functionality.

The author has been researching ideas for an extensible architecture for variable-data documents (DDF) over many years (Lumley2005, LumleyPhD, Lumley2013). This architecture was based heavily on XML documents containing mixtures of subtrees from several different XML dialects – standards, such as XSLT, SVG and parts of XSL-FO, and elements and attributive properties describing specialist layout and document-structure aspects.

Almost all the processing machinery for these documents was constructed in XSLT, in two principal areas. Firstly the effect of interpolation of variable data through sections of the document structure was processed according to XSLT semantics (much as the first phase of XSL-FO) by a compilation and execution mechanism. Secondly the layout interdependencies (flows, constraints, text-layout etc.) were resolved by a top-down recursive process, satisfying declared parent-children geometric constraints, along with a system of single-assignment presentational variables.

The main implementation toolset to support this architecture was a set of about 45 XSLT files containing definitions for some 700 templates and functions[1]. The toolset was used mainly for a publication step, binding a document to some data, evaluating it and then generating a PDF snapshot of the SVG sections of the result for printing.

Until 2011 this toolset was written entirely in XSLT 2.0, but thereafter some sections were converted to use features from XSLT 3.0, generally to increase the coherence, and the declarative nature of the code. Specific examples include:

  • Using xsl:iterate to define the operation of a large pagination processor, rather than use of a small set of mutally recursive templates. (This will not be described in detail in this paper, but involves some 15+ choices to be made for each component to be allocated, and a couple of accumulated variables, such as next-y position and current floating and kept components.)

  • Describing the set of currently active presentational variables (already layed-out sections of content that can be reused in a similar fashion to XSLT variables) as a map{} rather than a pair of stack-frame tunnelled variables.

  • Making some of the processing code sections more generic by passing some of the functionality (e.g. sibling-relative geometric constraint solving) as a function item to a higher-order processing template, rather than having a larger set of similarly structured routines, each implementing the specific constraint solution for each case.

This paper is about reversing automatically some of these syntactic and semantic changes to accomodate running code that has migrated to XSLT 3.0 on a 2.0 platform, for which the original target was a browser-based Saxon-CE SaxonCE implementation. The conversion processor is itself written totally in XSLT. Many parts of it of course involve a degree of emulation and partial evaluation of XSLT within an XSLT program itself, as well as processing some actions that might normally be found within the workings of an XSLT processor – a fun time for those who relish quoting, self-reference, meta-abstraction and multi-level recursion!

The XSLT standards

Since its inception in the mid 90s, the world of XML has been governed by standards. Originally attempting to regularise the extension of web pages, XML was developed as a meta-syntax for markup, aimed at using a strict tree-based representation of propertied element nodes containing sub-trees or text nodes. Very soon work started on developing XSL as a formatted and paginated alternative to HTML for documents with professional appearance. As we’re all well aware, the two aspects of XSL, formatting and variable document generation, split into two orthogonal standards – XSL-FO and XSLT. The latter developed, with XPath (and associated XQuery), into a full declarative XML-transformational language. In most recent versions XSLT/XPath/XQuery have become full functional programming languages, with XML trees as central data type.

Significant work under the auspices of W3C has developed and finalised these standards for XSLT/XPath/XQuery[2] through three major versions over the past 15 years. In each case a very comprehensive specification has been developed, reviewed, criticised and modified in cycles that are typically 3 years long and involve a few dozen contributors. Examples, test cases and experimental/operational implementations are all used to develop and finalise the specification, which is often followed by a further 3 years of polishing.

Once a standard (version) has been finalised, a degree of stability should then encourage developers of both implementations and applications to build and support software, without the language’s syntax or semantics altering. Of course it is exactly such full-scale use of a language that could expose shortcomings or new features that are needed to increase utility. The art of developing standards is to anticipate as much as is needed to get a useful and robust set of features that i) is adequate for significant application use but ii) not too complex for implementation or application.

XSLT 2.0 to XSLT 3.0

The major changes in XSLT (and XPath) between version 2.0 (2007) and version 3.0 (2014) are:

  • Support for streamed processing of large documents. This added a number of features to mitigate the need for backtracking through the source document in common design problems. Some of those were defined at the XSLT instruction level, such as xsl:stream , xsl:iterate and xsl:accumlator; others were declarations associated with streaming-related properties, such as xsl:mode; yet others were added to the XPath repertoire, such as map{}, and others to the function library (e.g. snapshot()).

  • Definitions for packaging of XSLT material to support non-source level delivery of resources, including mechanisms for visibility and overriding of within-package components and version-based selection.

  • Templates can match atomic items (including function types), rather than just nodes.

  • Dynamic error trapping and recovery mechanisms (xsl:try/xsl:catch)

  • Dynamic evaluation of XPath expressions (xsl:evaluate).

  • Support for higher-order functions and function-typed items in XPath.

  • Local variable bindings within XPath (let $x := value return ....).

  • More support for compile-time, i.e. static, evaluation of stylesheets, such as shadow attributes and static declarations.

  • Convenience additions to syntax and the core functional library, such as '||' being a string concatentation operator.

Why downgrade?

Two serious questions immediately arise:

  1. If you have an operational program written in XSLT 3.0, why would you want to downgrade it to 2.0?

  2. If you are designing to run on an XSLT 2.0 why would you want to write code in XSLT 3.0 ?

The first point is the main instigator for this work and is described below. As far as the second point is concerned, code written in 3.0 can be more coherent than the 2.0 equivalents. Indeed in the description of xsl:iterate in the standard, it is noted that:

"There are two main reasons for providing the xsl:iterate instruction. One is that many XSLT users find writing recursive functions to be a difficult skill, and this construct promises to be easier to learn."

Moreover, the existence of a reasonable semi-automatic transformer can act as a stimulus to both developers and implementors, providing a means to write test and exemplar programs within 3.0 that themselves can be tested before full XSLT 3.0 processor ipeentations are available.

Implementation code for parts of the variable document architecture mentioned earlier had been upgraded to XSLT 3.0, to take advantage of the new features in increasing coherence, robustness and re-usability of the code. (For example many new parent-children layouts, such as all-children-in-a-circle , could be added merely by defining the XPath function required to work out the positions and place each component of a sequence – all encapsulation and child-recursive evaluation was handled in common. Similarly the addition of maps simplified a stack-frame implementation of single-assigment presentational variables.) As mentioned earlier, the author's variable document architecture was used principally to publish a set of instances of a variable data document bound to a sequence of data instances. As such it can be considered to be a server-side operation. In 2013 the release of Saxon-CE as a fully-compliant browser-based XSLT 2.0 implementation opened the possibility of looking at client-side and potentially interactive operation of the document architecture. However, by this point some significant sections of the implementation had migrated to XSLT 3.0, as well as altering or extending the semantics of some of the operations.

We now have the problem of two branches – the old 2.0 version, (which had not of course been updated to reflect changing semantics) and the now master 3.0 version. We could retrofit (and then develop both branches in parallel) but another option was worth exploring – could sections of the 3.0 code be converted to an operationally equivalent 2.0 code automatically? The answer is of course yes.

Assumptions

All this work reported here is based on the following assumptions:

  • The practitioner is (highly) skilled in XSLT2.0/3.0 ! (This is vital – when errors occur, and they will, tracking them down across a 2.0/3.0 mixture can be entertaining and require considerable expertise.)

  • The practitioner can act as an oracle as far as the source code is concerned. As an example, if string literals in XPath expressions can be guaranteed not to contain substrings that might be mistaken for some elements of XPath syntax (e.g. a variable interpolation such as $some.var), then various transformations can be performed using regular expression substitution, avoiding the need to carry out complete XPath expression parsing and modification of parse trees – a relatively expensive operation in a complete XSLT system.

  • We are not attempting complete back-conversion. It is assumed that some heavily-used 3.0 features can be left to automated process, but others may require conditional code development by the programmer. Some features may require parallel development of 2.0 and 3.0 versions. Using @xsl:use-when() with version conditions can be exceptionally helpful to accomodate such changes. (For example the use of a higher-order architecture for layout processing described earlier, was conditionally retained for true 3.0 conditions, leaving 2.0 parallel code for the 2.0 case.)

  • Some (optional) aspects of XSLT (3.0) have been ignored completely. These include schema-awareness and validation, any aspect of streaming, function-type items, higher-order functions, templates matching atomic items, dynamic error trapping (xsl:try), multi-thread declaration (xsl:fork, xsl:merge), detailed serialization control, and so forth.

  • Any support for packaging will be confined to flattening packages into resultant non-packaged stylesheets.

  • Error tracking and trapping isn't of highest priority in the final runtime environment. For example there will be no equivalent of xsl:try/catch and compile/run source line numbers will likely be highly errant.

  • Other aspects outside the stylesheet, such as unusual entry invocations (initial-function, initial-context-item) are ignored.

  • Some aspects may differ in slight degree. For example preserving correct whitespace treatment may be difficult.

Note

Some of the examples shown, especially XPath expressions, are particularly simple, possibly redundant or just plain daft, and may well have other shorter equivalent forms that would be perfectly legal in XSLT2.0. However they are short enough to comprehend and their complete treatment can hopefully be followed completely by hand, by the reader.

Similar work

There has been a small amount of previous investigation of adding XSLT features through transforming XSLT. Of closest relevance is the work of Oliver Becker Becker2000, more than a decade ago, on an XSLT loop compiler. Additional instructions in a separate namespace (loop:for, loop:while, loop:do, loop:last loop:update) can be added to an XSLT stylesheet to define iterative constructs, which are then compiled by an XSLT transform (some 500 lines, of which about half is concerned with validation) into an equivalent using recursive named templates and parameters. As an example this re-working of a number-summing example from Michael Kay's XSLT Programmer's Reference:

<xsl:template match="/">
  <xsl:variable name="list" select="normalize-space(.)"/>
  <xsl:variable name="total" select="0" />
  <loop:while test="contains($list,' ')">
    <loop:last>
      <xsl:value-of select="number($total) + number($list)" />
    </loop:last>
    <loop:update name="list"
                 select="substring-after($list, ' ')" />
    <loop:update name="total"
                 select="number($total) +
                           number(substring-before($list, ' '))" />
  </loop:while>
</xsl:template>

is transformed into the following XSLT:

<xsl:template match="/">
  <xsl:variable name="list" select="normalize-space(.)"/>
  <xsl:variable name="total" select="0"/>
  <xsl:call-template name="while-loop-d1e12">
    <xsl:with-param name="list" select="$list"/>
    <xsl:with-param name="total" select="$total"/>
  </xsl:call-template>
</xsl:template>

<xsl:template name="while-loop-d1e12">
  <xsl:param name="list"/>
  <xsl:param name="total"/>
  <xsl:choose>
    <xsl:when test="contains($list,' ')">
      <xsl:call-template name="while-loop-d1e12">
        <xsl:with-param name="list" select="substring-after($list, ' ')"/>
        <xsl:with-param name="total"
               select="number($total) +  number(substring-before($list, ' '))"/>
      </xsl:call-template>
    </xsl:when>
    <xsl:otherwise>
      <xsl:value-of select="number($total) + number($list)"/>
    </xsl:otherwise>
  </xsl:choose>
</xsl:template>

David Carlisle in 2006 (Carlisle2006) published a series of XSLT2 stylesheets that supported the manipulation of XQuery expressions, converting them into other syntaxes, including XSLT. This work employed an adjunct (Java-based) parser for XQuery expressions to produce an XML parse tree which was then processed by XSLT (a stylesheet of ~2000 lines) into appropriate mixtures of XSLT instructions and XPath expressions. For example, the XQuery:

declare variable $x := <a> <b>zzz</b> </a>;
$x/b

is transformed into the stylesheet:

<xsl:stylesheet ....>
  <xsl:param name="input" as="item()" select="1"/>
  <xsl:output indent="yes"/>
  <xsl:variable name="x" as="item()*">
    <xsl:for-each select="$input">
	<xsl:element name="a">
	  <xsl:element name="b">
	    <xsl:text>zzz</xsl:text>
	  </xsl:element>
	</xsl:element>
    </xsl:for-each>
  </xsl:variable>
  <xsl:template name="main">
    <xsl:for-each select="$input">
	<xsl:sequence select="$x/ b "/>
    </xsl:for-each>
  </xsl:template>
</xsl:stylesheet>

Embedded XML content in the XQuery expressions are mapped to function invocations that produce the appropriate sequence values.

With the introduction of XSLT 2.0, Dimitre Novatchev showed that it was possible to implement higher-order functions (Novatchev2006) by exploiting uniquely named elements to act as template references to function items. Each function() item is represented by two XSLT-defined functions (a zero-arity to return the identifying element and the true-arity version to do the work) and a template that matches the unique template reference element and invokes the working function. Higher-order functions (e.g foldl()) are written to use this route-via-template technique, and a complete set of higher-order features has been implemented. Note that this approach requires all function items to be created in XSLT space – XPath local functions (function($args) {....}) are not supportable directly. The library developed during the work, FXSL, is very extensive.

Equivalent constructs

Whilst both XSLT 2.0 and 3.0 operate generally on the same basic data types, there are subtle differences in areas such as their environment interface (serialization, unparsed-text(), etc.) and the additional function types in XSLT3.0. This means that in general it will not be possible to write an equivalent XSLT 2.0 program that behaves externally exactly as a defined 3.0 one. But for many practical cases there should be many sections of code that can. In this section we discuss the type of code transformations that seem reasonably susceptible. Most are in XSLT, though a few are in XPath, and others involve compile-time evaluation.

XSLT constructs

Many of the additional XSLT instructions were targetted to support streaming but have other more general utility and may be susceptible to reversal in certain conditions. Those I have attempted so to engineer include:

xsl:mode

The mode declaration was added to support declaration of a mode as streamable, but also gave a very useful means to declare the default behaviour of that mode, i.e. what should happen in the absence of any other template matching a given node in push mode. (The default behaviour of text-only was too restrictive and many coding errors arose because of missing identity transforms for a named mode.)[3] The declaration is of the following form:

<xsl:mode name="fred" on-no-match="shallow-copy" .../>

where default behaviours can be shallow or deep copy or skip, text-only-copy or failure. These declarations can be replaced with a small number of template rules, along the lines of those shown in XSLT3.0 Built-in Template Rules :

 <xsl:template
      match="@*|node()"
      mode="fred" priority="-1000">
      <xsl:copy>
         <xsl:apply-templates select="@*" mode="#current"/>
         <xsl:apply-templates select="node()" mode="#current"/>
      </xsl:copy>
   </xsl:template>

The priority is highly negative to ensure these have priority lower than any true templates, but higher than the built-in rules (text-only-copy) of XSLT 2.0. In practice with stylesheet importation this substitution needs to be placed below the lowest level of importation precedence as well, which suggests a specialist stylesheet, containing all the mode declaration expansions, should be added to the importation tree at suitable low level. Use of xsl:apply-imports (rare in my experience) would complicate matters further. (Supporting the @on-multiple-match property is probably less useful and more dependent upon the XSLT implementation being employed.)

xsl:iterate

The iteration instruction was added to support a 'move-forward' processing model for streaming with some forward transmission of accumulated and computed data. A very simple example, which adds chapter number attributes, might be:

   <xsl:template match="/">
    <xsl:variable name="today" select="current-date()"/>
    <xsl:iterate select="//chapter">
      <xsl:param name="no" select="1"/>
      <xsl:copy>
        <xsl:attribute name="no" select="$no"/>
        <xsl:attribute name="date" select="$today"/>
        <xsl:sequence select="@*|*"/>
      </xsl:copy>
      <xsl:next-iteration>
        <xsl:with-param name="no" select="$no + 1"/>
      </xsl:next-iteration>
    </xsl:iterate>
  </xsl:template>

The iteration processes each item in the selected sequence in turn, returning the evaluation of the sequence constructor for this item as context and potentially modifying values of parameters for the processing of the next and subsequent members. Children xsl:next-iteration, xsl:break and xsl:on-completion provide means to invoke controlled continuation, early exit and completion postlude and tidying.[4] .(Of course there are many extant mechanisms to do this particular example in XSLT 2.0 or even XSLT 1.0, not least xsl:number, but a simple example helps to explain the equivalence.)

For most cases an equivalent structure for XSLT 2.0 involves use of a recursive named template, which for the previous example could look like:

   <xsl:template name="d3e14.iterate-0">
      <xsl:param name="iterate.sequence"/>
      <xsl:param name="no"/>
      <xsl:param name="today" tunnel="yes"/>
      <xsl:variable name="head" select="$iterate.sequence[1]"/>
      <xsl:variable name="tail" select="subsequence($iterate.sequence,2)"/>
      <xsl:for-each select="$head">
         <xsl:copy>
            <xsl:attribute name="no" select="$no"/>
            <xsl:attribute name="date" select="$today"/>
            <xsl:sequence select="@*|*"/>
         </xsl:copy>
         <xsl:call-template name="d3e14.iterate-0">
            <xsl:with-param name="iterate.sequence" select="$tail"/>
            <xsl:with-param name="no" select="$no + 1"/>
         </xsl:call-template>
      </xsl:for-each>
   </xsl:template>

   ....
   <xsl:template match="/">
      <xsl:variable name="today" select="current-date()"/>
      <xsl:call-template name="d3e14.iterate-0">
         <xsl:with-param name="iterate.sequence" select="//chapter"/>
         <xsl:with-param name="no" select="1"/>
         <xsl:with-param name="today" select="$today" tunnel="yes"/>
      </xsl:call-template>
  </xsl:template>

Text value templates {}

Text value templates are a syntactic convenience to interpolate XPath expressions within result tree text nodes. For example if this element has its closest ancestor::*[@expand-text] defining the tag to a true value (yes|1|true):

<weekday>Today is {format-date(current-date(),'Fn')}</weekday>
then it could could be replaced by an equivalent construct:
<weekday>
  <xsl:value-of>
    <xsl:text>Today is </xsl:text>
    <xsl:value-of select="format-date(current-date(),'Fn')"/>
  </xsl:value-of>
</weekday>

xsl:evaluate

Various vendor extensions to support dynamic XPath resolution have been standardised in XSLT3.0 with the xsl:evaluate instruction that takes a string defining an XPath expression, a possible context item, a set of possible parameters that can referred to within the expression and some optional contextual information such as namespace bindings. The error-free result is a sequence of items resulting from evaluating that given expression on the context.

Whilst it is highly unlikely that this instruction can be emulated to full specification, there are two possible routes. The most effective, if the chosen target XSLT implementation supports one, is to map into one of these vendor extension functions. For example saxon:evaluate() can support much of the functionality, with suitable mappings for parameters and minor modifcations of the presented XPath expression string[5].

A last-ditch possibility is to implement an XPath interpreter in XSLT 2.0. Using a full XPath parser, implemented in XPath 2.0 (see later) we can generate a full parse tree. A simple recursive interpreter matching the XPath grammar productions can generate a sequence of result items by working its way through the tree. Requests for built-in functions (e.g. FunctionCall name="sum") are mapped to calls to the appropriate built-in, having pre-evaluated the argument subtrees. This mechanism can work, but is unsuprisingly very very slow.

XPath expressions

Whilst most focus has been on XSLT instructions, some XPath 3.0 expressions might also be susceptible to reversal in certain cases. In the most general case substitution will involve accurate and full parsing of an XPath expression to its parse tree. In restricted cases (that the developer could indicate), regular-expression substitution on the XPath expression strings might be sufficient. Here are some possibilities:

let

Local variable bindings in XPath expressions are supported through let $var := expr0 return expr1 where $var is now in-scope in expr1. (The for directive will be similar for singleton sequences, but let preserves sequence values.). In simple cases, where the lets are nested from the outside, it may be possible to convert to an equivalent set of XSLT variables. For example:

<xsl:value-of select="let $i := (1 to 6),
  $avg := avg($i) return $i[. gt $avg]"/>
could be replaced by:
<xsl:value-of>
  <xsl:variable name="i" select="1 to 6"/>
  <xsl:variable name="avg" select="avg($i)"/>
  <xsl:sequence select="$i[. gt $avg]"/>
</xsl:value-of>

where we've effectively pulled the let tree into a series of local bindings in the XSLT space. When we can place these variable bindings within an entirely local context (i.e. the sequence constructor of the xsl:value-of) then we will not risk name clashes. When the let is buried below other constructs (e.g. a for) then we cannot use this technique, as XSLT instructions cannot appear within XPath expressions, and we must look to further expansion of the XPath tree into the XSLT space. This is described further in section “Manipulating mixed XSLT/XPath trees”.

map

Maps were again added to support dynamic collection and storage of data through a streamed processing operation. A common use of map{} is to associate a series of keys to values that are sequences of items (i.e. item()*). For example in the author's work on document layout a tunnelled variable $lay:variables as map(xs:string,item()*) contained bindings to named sections of layed-out components, that could be reused or examined (e.g. $lay:variables('background') might give all the items in the page background).

There are a number of possibilities for representing maps in certain (limited) circumstances. In the case where maps are isolated, i.e. attached to variables and not mixed with other items in a general sequence[6], then a possible scheme is to emulate the map with a key-and-value stack of the following general form:

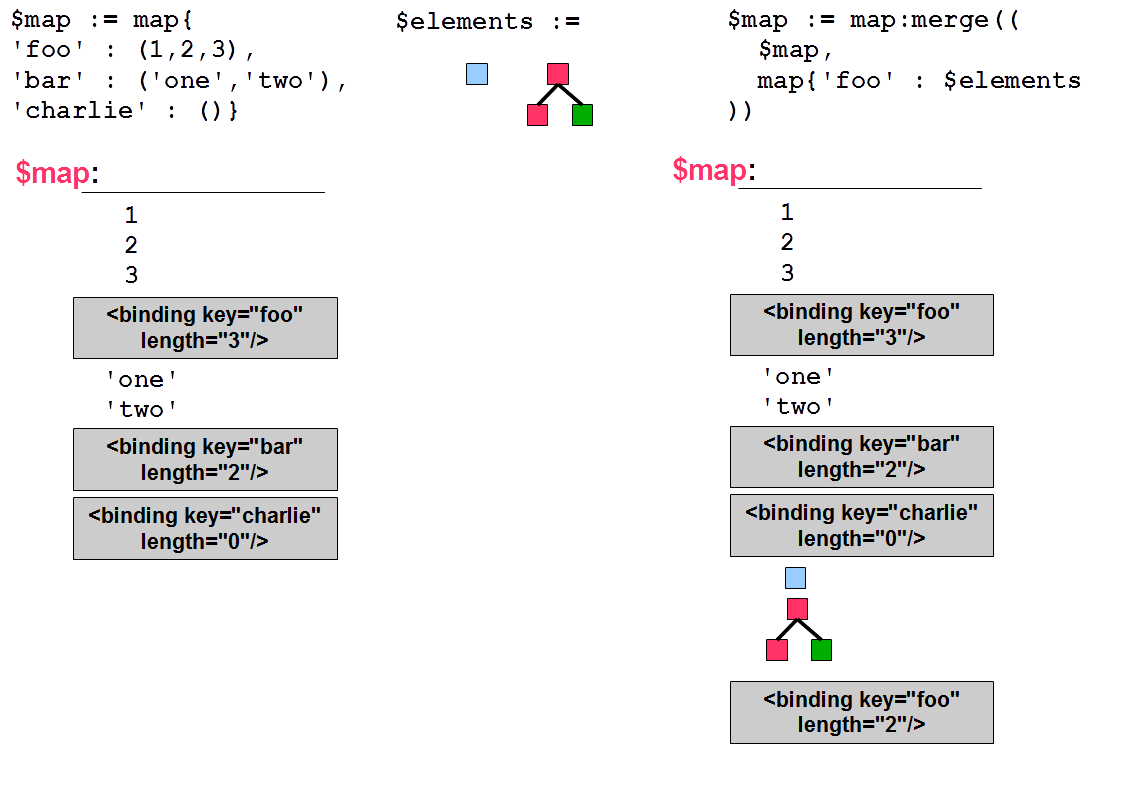

Figure 1: A map and its update

where the <binding/> elements are reserved forms and clearly distinguishable from normal content. On the left foo binds to a sequence of length 3, bar to one of length 2 and charlie to an empty sequence. After some update (i.e. an addition to the map in some more local context) shown on the right, foo now binds to a doubleton sequence, in this case result tree nodes that were bound to the variable $elements.

By searching for the last binding for a given key we can simulate map member updating, whilst still preserving locality of scope. (As all variable bindings in XSLT/XPath are single-assignment with variable name overriding strictly constrained to following-sibling::*/descendant-or-self::* situations, any local addition to a map is effectively copy-and-add which only has effect in the local scope.) The length attached to the binding is used to extract the appropriate number of values.[7].

To implement map lookup for this scheme we substitute the interpolation $some.name(name) by a call to the (stylesheet-defined) function map:get($some-name,name)[8] which looks up the last binding entry in $some-name for the given name (hence preserving locality of scope) and then returns the appropriate subsequence of the stack from immediately behind the binding element[9].

This approach has some limitations that may be important depending upon the application. Most derive from the fact that the representation is not a single item (which a map(*) is) but a sequence. This means it cannot be treated as an item by some other manipulation – it will produce incorrect results for functions and operators that do inspect items, such as count(), is and instance of[10]. The function empty() will be unable to distinguish between an empty map and no map (i.e. exists($map) and map:size($map) = 0 would be indistinguishable from empty($map)). Equally well this scheme cannot represent a sequence of maps. In the author's limited experience most conventional use of maps rarely involves such existential manipulation of arbitrary maps. Perhaps mostly simply, this scheme only works for interpolations of keyed-values from maps.

An alternative method, which separates the stack from the keys, requires binding to two separate XSLT variables[11] e.g. xsl:variable name="name" as="map(*)xsl:variable name="name.stack" as="item()*, xsl:variable name="name.keys" as="element(map:binding)*. Now the bindings contain an offset and length into the stack. This approach can be more efficient in lookup, but is significantly more restricted in the situations in which it can be deployed.

Maps in XSLT 3.0 can be created through three possible mechanisms: XPath syntax (map{ key : value,...})[12], XPath constructor functions (map:entry(), map:merge()) or XSLT instructions (xsl:map, xsl:map-entry). How and to what extent, these features might be simulated in 2.0 is discussed later.

Arrays, being introduced in XPath3.1, which can store mixed arrays of items (including sequences of items), could be emulated in a similar manner, using a reserved marker element between array members, and defining emulations of the constructor and accessor functions (array:get() etc.). Restrictions on existential manipulation of these emulations are similar to those for map().

Convenience functions and operators

XPath 3.0 has added a number of convenience functions and operators (XPath.FO), again often to support streaming, but which are of more general utility and can increase the coherence of code. Some of them include:

  • head() and tail() – reducing a sequence. This can of course be replaced by a number of equivalent XPath forms, but the most coherent is to use equivalent XSLT-defined functions:

    <xsl:function name="f:head" as="item()?">
      <xsl:param name="seq" as="item()*"/>
      <xsl:sequence select="$seq[1]"/>
    </xsl:function>
    <xsl:function name="f:tail" as="item()*">
      <xsl:param name="seq" as="item()*"/>
      <xsl:sequence select="subsequence($seq,2)"/>
    </xsl:function>

    where f: is bound to some reserved namespace.

  • innermost() and outermost() – producing lowest and highest ancestry nodes. Again these are most simple supported with equivalent XSLT-defined functions:

    <xsl:function name="f:innermost" as="node()*">
      <xsl:param name="nodes" as="node()*"/>
      <xsl:sequence select="$nodes except $nodes/ancestor::node()"/>
    </xsl:function>
    <xsl:function name="f:outermost" as="node()*">
      <xsl:param name="nodes" as="node()*"/>
      <xsl:sequence select="$nodes[not(ancestor::node() intersect $nodes)]/."/>
    </xsl:function>
  • A number of exisiting 2.0 functions have reduced argument forms added, such as string-join($seq) which defaults the second (joiner) argument to a zero-length string. Again such invocations (if detected) can be linked to a simple currying function:

    <xsl:function name="f:string-join" as="xs:string">
        <xsl:param name="arg1" as="xs:string*"/>
        <xsl:sequence select="fn:string-join($arg1,'')"/>
    </xsl:function>

    where fn: is bound to the normal XPath function namespace.

|| (string concatenation)

This is defined as a binary operator such that $a || $b is equivalent to fn:concat($a,$b). Thus if the associativity can be analysed such operations can be replaced by calls to concat().

! (simple map)

This permits sequences of general items to be processed in an analgous manner to / with sequences of nodes. Thus (1 to 5)! (. + 10) is almost equivalent to for $i in (1 to 5) return ($i + 10), though technically the context focus for the right hand operand of ! is set to each of the left in turn; this would have effect on context-defaulting functions such as name() which would need to have default arguments added.

Compile-time modification

Some features are aimed at evaluating or modifying the XSLT statically at compile time, with a @static property being supported on global variables and parameters. For many of the situations envisaged, the 2.0 program will be projected from the master 3.0 version under conditions which are effectively static. Thus many of these components may be pre-evaluated. In some cases, where the static variables are used to control conditional code use, this might be essential.

As an example default push-mode behaviour for a given mode might be selected statically through a toggle and a mutually exclusive pair of declarations:

<xsl:variable name="process-all" select="false()" static="yes"/>
<xsl:mode name="process" on-no-match="shallow-copy" use-when="$process-all"/>
<xsl:mode name="process" on-no-match="deep-copy" use-when="not($process-all)"/>

Clearly, provided XPath expressions can be parsed and evaluated statically, this choice can be predetermined. (In fact it has to, otherwise conflicting templates at the same priority will be placed in the resulting stylesheet.) In a similar manner, XSLT provides shadow attributes whose values can be computed statically. In this way the choice above could be rephrased as:

<xsl:variable name="process-all" select="false()" static="yes"/>
<xsl:mode name="process2" _on-no-match="{if($process-all) then 'deep' else 'shallow'}-copy"/>

which is similarly capable of being evaluated during the program transformation.

Obviously to perform this evaluation we need to be able to evaluate XPath expressions with associated variable bindings dynamically. Within XSLT3.0 this can be acheived through the xsl:evaluate instruction and is discussed further in section “Conditional compilation”.

Transforming the code

The previous section has described some of the possible 3.0 constructs that might be reverse-engineered to 2.0 equivalents and what those forms might look like. In this section we describe how such alterations might be performed, i.e. what code would be needed to convert a candidate XSLT 3.0 stylesheet into a 2.0 version.

One great advantage with XSLT is that it is homoiconic, that is programs are written in a syntax that is (one of) its main data types, XML[13]. Hence reading and generating XSLT from XSLT is comparatively easy, though abstraction levels and quoting problems can be tricky. However, a significant proportion of an XSLT program's functionality is described in XPath expressions, which at the XML syntax levels are merely string values of attributes. For some simple cases some dependencies can be analysed through clever use of regular expressions, an example being finding names of normal variable references when they don't appear within string literals. However in general a parse tree for XPath expressions is needed. That requires an extension library, but such things are possible, especially with tools such as Gunther Rademacher's REx REx.

Note

The methods described in this paper assume that the source XSLT is syntactically and semantically valid. Addition of full error checking would complicate the code significantly and it is anticipated that correct operation of the 3.0 code would be tested before such conversions implied here.

The basic method of course is to employ push-mode template matching. I'll describe the approach for two XSLT instructions (xsl:mode and xsl:iteration), text value templates, an XPath construct (map{}) and static evaluation and conditional compilation of the XSLT program.

Converting xsl:mode

Transforming the xsl:mode instruction is relatively straightforward. A template matching an xsl:mode defining no-match behaviour has conditional choices of content, derived effectively from XSLT3.0 Built-in Template Rules, chosen dependent upon the @on-no-match attribute value:

<xsl:template match="xsl:mode[@on-no-match]"
  <xsl:param name="priority" select="-1000"/>
  <xsl:variable name="node.patt">*|text()|comment()|processing-instruction()</xsl:variable>
  <xsl:choose>
    <xsl:when test="@on-no-match='text-only-copy'"/>
    <xsl:otherwise>
      <xsl:choose>
        <xsl:when test="@on-no-match='shallow-copy'">
          <X:template match="@*|{$node.patt}|document-node()" mode="{@name}" priority="{$priority}">
            <X:copy>
              <X:apply-templates select="@*" mode="#current"/>
              <X:apply-templates select="node()" mode="#current"/>
            </X:copy>
          </X:template>
        </xsl:when>
        <xsl:when test="@on-no-match='deep-copy'">
          <X:template match="@*|{$node.patt}|document-node()" mode="{@name}" priority="{$priority}">
            <X:copy-of select="."/>
          </X:template>
        </xsl:when>
         ......
      </xsl:choose>
    </xsl:otherwise>
  </xsl:choose>
</xsl:template>

The prefix X: is bound to an aliased namespace that will become xsl: in the output. The priority is chosen, as remarked earlier, to be lower than any priority found for that mode within the entire expanded stylesheet, but higher than the (text-only-copy) default rules. (It should be possible to find a reasonable minimum priority through min(xsl:template/@priority) - 1.) Text-only-copy behaviour is the built-in default, so a request for that requires no substituted templates. (More strictly, these defaults should be placed in the lowest precedence position, which means in a separate stylesheet itself imported at lowest precedence, i.e. as the first import of the toplevel stylesheet.)

Converting xsl:iterate

Processing the xsl:iterate instruction into the recursive template declaration and xsl:call-template instruction pair shown earlier is rather more complex and needs to be a recursive process as of course the bodies of iterations can themselves contain further iterations.

Luckily using push-template programming supports such recursion naturally. The process has two parts: formation of the templates (as top-level declarations in the result stylesheet) for each of the iterate instructions found, and generation of the specific call.

There are several specific aspects of the xsl:iterate instruction that must be considered. Firstly, the only result(s) of the instruction arise from the evaluation of the sequence constructors contained within. Consequently these sequence constructors need to be preserved in the resulting code. Secondly, the iterative nature of the instruction is performed by xsl:next-iteration directives which potentially modify transmitted (state) information through parameters – these will be converted into suitably parameterised xsl:call-template instructions. Thirdly, extraordinary exit and postlude processing needs to be supported. Finally, the whole xsl:iterate instruction operates within a local scope within which variables can exist and whose values can be interpolated. Any solution must preserve such bindings, including local bindings within nested iteration constructs.

The transformation process involves the following stages:

  • Find each top level stylesheet declaration (template, function or variable) that contains an xsl:iterate. For each of these generate a uniquely named template corresponding to each found iteration (which may be nested) as an additional top-level declaration.

  • For each of these iteration instructions determine the in-scope XSLT variables and parameters, using using an XPath ancestor-or-self::*/preceding-sibling::(xsl:variable|xsl:param) (Global variables can be determined separately and allocated to $global.variables). Then determine which variables are actually used in the parameter lists and body of the iteration. As all references can only be through XPath expressions, these will only occur in a small number of attributes within the body - principally @select or @test or attibute and text value templates ({...}). These attributes and value templates can be found with a suitable XPath lookup.

  • If it can be guaranteed that string literals within these XPath expressions do not contain sequences that could be read as variable references (i.e. of the form '$Qname...') then we can find the names of referenced variables through regular expressions: \$(\i\c*). We can then reduce the set of in-scope variables to just those needed and use this set to both generate the list of parameters to be added to the named template, and the parameter bindings to be set on the call[14]. Similar issues apply to scope for on-completion. The parameters are designated tunnelled to support pass-through access during recursion.

    When this restriction on string literals within the XPath expressions cannot be guaranteed, then full XPath parsing will be required. This is discussed in section “Expanding XPath Expressions”

  • The sequence to be iterated over is bound to a reserved parameter ($iterate.sequence)[15]. The body of the named template is then effectively:

    <xsl:variable name="head" select="$iterate.sequence[1]"/>
    <xsl:variable name="tail" select="subsequence($iterate.sequence,2)"/>
    <xsl:choose>
      <xsl:when test="empty($head)">
            on-completion sequence constructor
      </xsl:when>
      <xsl:otherwise>
        <xsl:for-each select="$head">
            body sequence constructor
        </xsl:for-each>
       ....

    The body sequence constructor usually contains one or more xsl:next-iteration instructions which will have been transformed to :

    <xsl:call-template name="iteration.name">
      <xsl:with-param name="iterate.sequence" select="$tail"/>
      <xsl:param ...../>
    </xsl:call-template>

    which invokes the processing of the rest of the sequence with potentially modified parameter bindings. In the absence of a next-iteration directive[16], a simple tail call is added to the end of the xsl:for-each to support the default behaviour. In the absence of an on-completion instruction, the choose can of course be replaced just by the for-each.

    xsl:break instructions terminate the closest surrounding iteration leaving a possible completion component. In this case the break is replaced by either its sequence constructor or an interpolation of its @select expression.

Converting text value templates

Interpolation of text value templates is controlled by @[xsl:]expand-text attributes attached to ancestor elements. Processing these is straightforward, with a pre-emptive template setting a boolean state, and text nodes which contain such text value templates being processed by regular expression analysis:

<xsl:template match="*[@xsl:expand-text]|xsl:*[@expand-text]" priority="6">
  <xsl:next-match>
    <xsl:with-param name="expand-text" as="xs:boolean" tunnel="yes"
         select="(@expand-text|@xsl:expand-text) = ('yes','true')"/>
  </xsl:next-match>
</xsl:template>
<xsl:template match="*/@xsl:expand-text|xsl:*/@expand-text" priority="6"/>
<xsl:template match="text()[contains(.,'{')]">
  <xsl:param name="expand-text" as="xs:boolean" select="false()" tunnel="yes"/>
  <xsl:choose>
    <xsl:when test="$expand-text">
      <X:value-of>
        <xsl:analyze-string select="." regex="{$reg.AVT}" expand-text="yes">
          <xsl:matching-substring>
            <X:value-of select="{regex-group(1)}"/>
          </xsl:matching-substring>
          <xsl:non-matching-substring>
            <X:text>{.}</X:text>
          </xsl:non-matching-substring>
        </xsl:analyze-string>
      </X:value-of>
    </xsl:when>
    <xsl:otherwise>
      <xsl:next-match/>
    </xsl:otherwise>
  </xsl:choose>
</xsl:template>

Converting map{}

The major issue is whether a full XPath expression parsing is required. As hinted previously, with some (oracle-provided) guarantees on the content of string literals (or more accurately the absence of certain forms in such strings), simpler mechanisms using regular expressions may suffice. The most important is that the regular expression \$\i\c*\((\i\c*\)) can recognise such map interpolations.

The model for map equivalents suggested earlier, using a stackframe, requires two different actions: interpolation from the map stack and adding values to the stack. As described earlier a map interpolation can be replaced with a function call referencing the stack frame: $some-name(name)map:get($some-name,name). One implication of this approach is that a map cannot be a value in another map, i.e. we cannot support anonymous maps – they must all have (variable) names within XSLT/XPath scope.

How do we build the map construction features? The main technique is to try to convert other constructors to a call on emulations of the map construction functions, such as map:entry($key,$value), map:merge($maps) and so forth.

When the value of the map is defined by XSLT instructions such as:

<xsl:variable name="map1" as="map(*)">
  <xsl:map>
    <xsl:map-entry key="'one'" select="'First'"/>
    <xsl:map-entry key="'rest'" select="'Second','Third','Fourth'"/>
  </xsl:map>
</xsl:variable>
<xsl:sequence select="'1:',$map1('one')"/>
<xsl:variable name="map1" as="map(*)">
  <xsl:map>
    <xsl:sequence select="$map1"/>
    <xsl:map-entry key="'foo'" select="1,2,3,4,5"/>
    <xsl:map-entry key="'one'" select="'Primus','inter','pares'"/>
  </xsl:map>
</xsl:variable>
<xsl:sequence select="'2:',$map1('one')"/>

then a push-template implementation along the following lines:

<xsl:template match="xsl:variable[@as='map(*)'][*]">
  <xsl:copy>
    <xsl:sequence select="@name"/>
    <xsl:attribute name="as">item()*</xsl:attribute>
    <xsl:apply-templates select="xsl:map" mode="#current"/>
  </xsl:copy>
</xsl:template>
<xsl:template match="xsl:map">
  <xsl:apply-templates select="*" mode="#current"/>
</xsl:template>
<xsl:template match="xsl:map-entry[@select]">
  <X:sequence select="map:entry(({@key}),({@select}))"/>
</xsl:template>

produces a working form with suitable constructs:

<xsl:variable name="map1" as="item()*">
  <xsl:sequence select="map:entry(('one'),('First'))"/>
  <xsl:sequence select="map:entry(('rest'),('Second','Third','Fourth'))"/>
</xsl:variable>
<xsl:sequence select="'1:',map:get($map1,'one')"/> → 1: First
<xsl:variable name="map1" as="item()*">
  <xsl:sequence select="$map1"/>
  <xsl:sequence select="map:entry(('foo'),(1,2,3,4,5))"/>
  <xsl:sequence select="map:entry(('one'),('Primus','inter','pares'))"/>
</xsl:variable>
<xsl:sequence select="'2:',map:get($map1,'one')"/> → 2: Primus inter pares

When maps are built with calls to the map constructor functions (e.g. map:entry()) then by providing suitable emulation functions in a stylesheet-defined library, XPath expressions need not be touched. Some of the emulation functions are as follows:

<xsl:function name="map:entry" as="item()+">
  <xsl:param name="key" as="xs:anyAtomicType"/>
  <xsl:param name="value" as="item()*"/>
  <xsl:sequence select="$value"/>
  <binding name="{$key}" length="{count($value)}"/>
</xsl:function>

<xsl:function name="map:merge" as="item()*">
  <xsl:param name="maps" as="item()*"/>
  <xsl:sequence select="$maps"/>
</xsl:function>

<xsl:function name="map:keys" as="xs:anyAtomicType*">
  <xsl:param name="maps" as="item()*"/>
  <xsl:sequence select="distinct-values($maps[self::binding]/@key)"/>
</xsl:function>

(Since our map emulation is merely a sequence, a sequence of such maps is already a map, so map:merge() just passes through). Using these functions as interfaces decouples the exact details of the representation from the actual use of maps.

When maps are defined in XPath map syntax map{ }, we need to modify the XPath parse tree. Ignoring tokens, the tree for map{ 1 := ('fred',3+4), 2 := 'bert'} is shown on the left:

Table I

Modifying map{} constructors

<MapExpr>
  <Literal type="xs:integer" value="1"/>
  <Expr>
    <Literal type="xs:string" value="'fred'"/>
    <AdditiveExpr op="+">
      <Literal type="xs:integer" value="3"/>
      <Literal type="xs:integer" value="4"/>
    </AdditiveExpr>
  </Expr>
  <Literal type="xs:integer" value="2"/>
  <Literal type="xs:string" value="'bert'"/>
</MapExpr>
<Expr>
  <FunctionCall name="map:entry">
    <Literal type="xs:integer" value="1"/>
    <Expr>
      <Literal type="xs:string" value="'fred'"/>
      <AdditiveExpr op="+">
        <Literal type="xs:integer" value="3"/>
        <Literal type="xs:integer" value="4"/>
      </AdditiveExpr>
    </Expr>
  </FunctionCall>
  <FunctionCall name="map:entry">
    <Literal type="xs:integer" value="2"/>
    <Literal type="xs:string" value="'bert'"/>
  </FunctionCall>
</Expr>

so if we surround each pair of children with a function call to map:entry() and replace the MapExpr element with Expr, we get the tree on the right that would have been parsed from (map:entry(1,('fred',3+4)), map:entry(2,'bert')), which is the desired representation for the initialised map. Back-conversion of the parse tree into text correctly modifies the XPath expression. (If the representation of the map is something other than a sequence of map:entry() results, such as using map-start...map-end markers, then surrounding this construct with a function call to map:merge() will be adequate.)

Conditional compilation

To support conditional compilation (either through the @use-when directive or within shadow attributes), we need two activities: firstly to collect and detemine the values of all the (global) static variables and secondly to evaluate the XPath expression of the @use-when or attribute value templates within shadow attributes, using those bindings. It is possible for the values of static variables to be interpolated within @use-when directives (which may be attached to static variable declarations) or shadow attributes, so these two processes must be handled concurrently.

For both cases the most complex is to determine the values of the static variables. Luckily they are defined to have their values determined only by @select attributes (i.e. XPath expressions, no XSLT instructions can influence) and reference between static variables (which must all be top-level children of stylesheets and have unique names) is only permitted in a reverse direction. Hence an iteration across the top-level children of a stylesheet, evaluating any static variables with possible variable bindings already accumulated into a map, evaluating the effect of static variables on the top-level trees and determining @use-when effects, will produce the statically evaluated top-level stylesheet children:

<xsl:template match="xsl:stylesheet|xsl:transform" mode="X:static" as="element()">
  <xsl:copy>
    <xsl:sequence select="@*"/>
    <xsl:iterate select="*">
      <xsl:param name="vars" as="map(*)" select="map{}"/>
      <xsl:variable name="conditional" as="element()?">
        <xsl:apply-templates select="." mode="#current">
          <xsl:with-param name="static.var.values" select="$vars" tunnel="yes"/>
        </xsl:apply-templates>
      </xsl:variable>
      <xsl:choose>
        <xsl:when test="$conditional/self::xsl:variable[@static='yes']">
          <xsl:variable name="value" as="item()*">
             <xsl:evaluate xpath="@select" with-params="$vars"/>
          </xsl:variable>
          <xsl:copy>
            <xsl:sequence select="@* except (@static|@use-when)"/>
            <xsl:attribute name="select" select="X:select($value)"/>
          </xsl:copy>
          <xsl:next-iteration>
            <xsl:with-param name="vars" select="map:merge(($vars,map{@name := $value}))"/>
          </xsl:next-iteration>
        </xsl:when>
        <xsl:otherwise>
          <xsl:sequence select="$conditional"/>
          <xsl:next-iteration/>
        </xsl:otherwise>
      </xsl:choose>
    </xsl:iterate>
  </xsl:copy>
</xsl:template>

(The function X:select() converts atomic items into suitable XPath expression values, such as surrounding xs:string with quotes.) Toplevel children are processed with matching templates for @use-when and shadow attributes[17]:

<xsl:template match="xsl:*[@use-when] | *[@xsl:use-when]" mode="X:static" priority="5">
  <xsl:param name="static.var.values" tunnel="yes"/>
  <xsl:variable name="use-when" as="xs:boolean">
    <xsl:evaluate xpath="@use-when|@xsl:use-when" with-params="$static.var.values"/>
  </xsl:variable>
  <xsl:if test="$use-when">
    <xsl:next-match/>
  </xsl:if>
</xsl:template>
Shadow attributes (which can appear only on XSLT elements) can be detected with xsl:*/@*[starts-with(name(.),'_')] and any value templates processed using string analysis – a properly named attribute with value is then substituted. All these actions can take place in an early 'static processing' phase (which is still effectively in the 3.0 space) before subsequent code substitutions are made.

During this phase it is also possible to project the consequences of static information that will be true in the execution context of the transformed stylesheet. For example the built-in function system-property(property-name) can yield information about the implementation, such as the version of XSLT supported. This is often used within conditional code, such as use-when="system-property('xsl:version') = '3.0'". In this case we anticipate that the transformed stylesheet will operate under a regime where system-property('xsl:version') has the value '2.0', so if we replace such a function call with its expected value, the conditionality can be projected during the transformation.

Expanding XPath Expressions

In the work reported so far we've mostly managed to short-cut determining XPath expression properties by using regular expressions on the XPath string representations. (This is one of the reasons programmer oracle powers are useful.) In the more general and robust cases XPath expressions must be parsed fully to recover necessary information or generate correctly modified expressions.

Luckily Gunther Rademacher's REx parser-generator can produce an effective parser for XPath 3.0 implemented entirely in XSLT (2.0). This can be set to generate an XML tree of the complete expression parse, whose element names correspond to the left-hand sides of the XPath EBNF productions. This tree can then be subjected to some post-processing (namespace remapping, collapsing of singleton leaf sub-trees, attaching operators to suitable binary nodes, etc...) before returning the completed parse-tree for conversion[18].

The compact parse tree can then be modified as required, most readily through a specialist push-template mode. For example, in the conversion of XPath syntax map constructors (map{}) as described earlier, the following template is sufficient:

<xsl:template match="MapExpr" mode="XPath.3to2">
  <xsl:variable name="real" as="item()*">
    <xsl:apply-templates select="*" mode="#current"/>
  </xsl:variable>
  <Expr>
    <xsl:for-each select="1 to (count($real) idiv 2)">
      <FunctionCall name="map:entry">
        <xsl:sequence select="subsequence($real,. * 2 - 1,2)"/>
      </FunctionCall>
    </xsl:for-each>
  </Expr>
</template>

Other simple cases using this technique include string concatenation (||) where StringConcatExprFunctionCall name="concat".

In cases where XSLT instructions need to be introduced, as with let at an outermost level , we permit adding those XSLT instructions into the parse tree, in this case placing variable bindings as the sequence constructor of a suitably named XSLT variable:

<xsl:template match="LetExpr" mode="XPath.3to2">
  <xsl:apply-templates select="SimpleLetBinding" mode="#current"/>
  <X:sequence>
    <xsl:apply-templates select="* except SimpleLetBinding" mode="#current"/>
  </X:sequence>
</xsl:template>
<xsl:template match="SimpleLetBinding" mode="XPath.3to2">
  <X:variable name="{@var}">
    <xsl:sequence select="@as"/>
    <xsl:apply-templates select="*" mode="#current"/>
  </X:variable>
</xsl:template>

After modifications are completed, the parse tree can be projected. XPath elements will be flattened to equivalent XPath expression strings, XSLT instructions will remain. In the absence of any XSLT instructions the string will usually be placed in the XPath-holding attribute (e.g. @select). When XSLT instructions are present the result will be a mixed sequence, placed as the sequence constructor of the enclosing element, within which string items (representing XPath expressions) will be placed in the @select attributes of xsl:sequence instructions, and the XSLT instructions will stand in place[19].

Manipulating mixed XSLT/XPath trees

In the previous section I've discussed some initial manipulation of a parse tree which is principally XPath, but is transformed into a mixture of XSLT and XPath. Along similar lines to that used in Lumley2014 this can be generalised to manipulating a tree that contains arbitrary mixtures from both languages. For example consider the fragment:

<xsl:for-each select="
     let $avg := avg(books/@pages)
         return books[number(@pages) gt $avg]">
 <too-big>
   <xsl:value-of select="@title"/>
 </too-big>
</xsl:for-each>

where the presence of the let in the for-each selection means that the variable assignment must be performed within the XSLT space in 2.0, whereas of course in 3.0 it is defined in XPath context. Figure 2 shows the type of process that will be required. The first tree shows the parse of the XSLT instruction and its constituent XPath trees, placed as immediate children of their carrying instructions. The left-hand let performs the select role for the for-each; the right-hand tree (a too-big element) will be evaluated for each selected item collectively yielding the sequence value of the for-each construct.

Figure 2: Lifting XSLT instructions from XPath contexts.

At stage 2 we have started replacing the let with a sequence of an XSLT binding of the local variable (avg), followed by a interpolation of that value within the predicate. As this is encapsulated in a sequence constructor, name locality is preserved. But of course this is not correctly executing XSLT - this new item should behave in the select role for the for-each. In the third tree we have lifted this above the for-each, binding its value to a unique XSLT variable (which is typed item()*) and interpolating its value in the for-each selector. Now what we have is legal – there is no XSLT embedded within XPath. Thus flattening the XPath trees back into carrying attributes (@select, @test) will yield a correct XSLT2.0 construction.

Similar methods may be needed for xsl:apply-templates, xsl:choose/xsl:when, xsl:if and attribute value templates. The main test is the presence of a buried xsl:variable within an XPath expression tree after first stage modification.

In a similar manner sometimes XPath constructs need to be lifted to XSLT space because of descendant variable bindings. Figure 3 shows the process for

<xsl:template match="/">
 <xsl:for-each select="
   for $b in books return
     let $hasAppendix := exists($b/appendix) return
       if($hasAppendix) then $b else ()">
   <appendix>
     <xsl:value-of select="@title"/>
   </appendix>
</xsl:for-each>
where a let is buried within an XPath for expression effectively in the sequence constructor role. Following the let replacement as shown before, it is replaced by a sequence of an XSLT variable binding and an interpolative use within an if test as shown at stage 2 of Figure 3. But it is still under an XPath construct (the ForExpr) which is acting in the select role for the xsl:for-each.

Figure 3: Modifying XPath due to embedded XSLT instructions.

Migrating upwards, whilst still preserving the for loop behaviour, can be achieved by converting the ForExpr from XPath to XSLT space, and as before binding it into a unique variable, whose declaration is promoted in front of the surrounding use. The resulting final XSLT is:

<xsl:template match="/">
  <xsl:variable name="ForExpr.d274e8" as="item()*">
    <xsl:for-each select="books">
      <xsl:variable name="b" as="item()" select="."/>
      <xsl:variable name="hasAppendix" select="exists($b/appendix)"/>
      <xsl:sequence select="( if($hasAppendix) then $b else () )"/>
    </xsl:for-each>
  </xsl:variable>
  <xsl:for-each select="$ForExpr.d274e8">
    <appendix>
      <xsl:value-of select="@title"/>
    </appendix>
  </xsl:for-each>
</xsl:template>

Inclusions

Stylesheets often include resources from other stylesheets, using xsl:include and xsl:import redirection instructions. For most of this work, these are not flattened, but used as links to discover the programmatic reach of the top-level stylesheet. An equivalent 2.0 tree of files is generated with the same relative naming structures retained. This is essential to preserve import precedences.

Testing

It is helpful to know whether this program transformation technique works. One might consider using one of the extensive test suites developed for XSLT 3.0, but these tend to be very small stylesheets focussed on one particular aspect of XSLT semantics. Better is to compare the outputs of an XSLT3.0 stylesheet operating on a given input with the result from the transformed program, expecting of course deep-equality in the resulting XML. A more extreme test possibility is discussed in the conclusion.

Since the converter is supposed to convert 3.0 features into 2.0, then perfectly legal 2.0 facilities should remain untouched. In practice, since a 2.0 stylesheet is assumed to be legal XSLT 2.0, then the bodies of such stylesheets are not processed, but passed through unchanged.

The original stimulus for this work was to convert a 3.0-based document layout system into one that would run on the 2.0 environment of browser-based Saxon-CE. Indeed, this was successful, enabling admittedly simple documents to be processed in both a server-side (3.0) context and a browser-based (2.0) one.

To illustrate this more directly, Figure 4 and Figure 5 show runs of the same document source code using the original XSLT 3.0 version of the layout library (comprising some 30 different files), and its 2.0 modified version. The document not only shows various forms of layout, for which their original support code requires both XSLT 3.0 (xsl:iterate, xsl:evaluate) and XPath 3.0 (map{}...) facilities, but also self-examines the library and reports on XSLT versions and features found.

Figure 4: XSLT3.0 version of a document layout

Here we can see that the vast majority of the layout library stylesheets are defined in XSLT3.0 and there is use of both XSLT 3.0 instructions and XPath 3.0 operators. (Figures for the XPath operators are the number of attributes (@select etc.) which contain one or more of that type of operator.) Having processed the layout library through the XSLT 3 to 2 converter, we can again process the source document using the modified (XSLT2.0) library and get the following output.

Figure 5: XSLT2.0 version of the same document layout

The document reports that it was processed in XSLT2.0 mode, by the Saxon HE processor (which supports no XSLT3.0 features). The layout sections to the left produce the same result as in the 3.0 evaluation. The inspection element reports that all stylesheets used were declared to be in XSLT2.0 and that no XSLT3.0 features were found in that set. The extra five stylesheets are accounted for by the support library, added by the converter, which provide various emulation functions and XPath parsing and evaluation support.

Support for the dynamic XPath evaluation used within the left hand traffic lights layout is very expensive indeed here, involving full parsing and emulation of document-borne XPath expressions entirely by XSLT2.0 code. (If a built-in evaluator is available, such as saxon:evaluate(), almost two orders of magnitude improvement in speed can be expected.)

Conclusion

I've shown that it is possible to convert some aspects of XSLT 3.0 syntax and semantics into equivalent XSLT 2.0 code, using only XSLT stylesheets as the conversion mechanism. In the hands of experienced XSLT programmers, who can provide oracle control information, these tools can be used to automate considerable sections of such conversion. The remainder can be accomodated by alternative conditional code sections controlled by @use-when directives, which can be retained or removed by the converters during static evaluation. (Recall that the converter knows that the target xsl:version will be 2.0, so it can evaluate accordingly during conversion.)

Some specific lessons learned include:

  • With a full XPath parser, it's often actually a great deal easier programmatically, using a small sequence of templates, and certainly much more robust, to carry out alterations to XPath expression strings on the parse trees themselves, rather than employing regular expression modifications discussed earlier.

  • Relativity between imported and included stylesheets that are modified during conversion needs to be managed very carefully, to retain correct precedence semantics. This has proven to be especially the case in the self-processing example discussed below.

  • Namespace management also needs much care, to ensure that namespace references within attribute values are retained. Again that became critical in the converter self-processing, where innocuous exclude-result-prefixes="xs math" declarations raised many problems.

  • Processing XSLT with XSLT is such fun.

Can it process itself?

I stated earlier that the converter code was written in XSLT 3.0. This of course begs the question whether it can generate a 2.0 version of itself. Obviously this depends upon the complexity of the code written. At the time of writing, the some 1500 lines appear to use only the following 3.0 features:

  • The string concatenation operator (||) reasonably heavily, mainly to reduce clutter in forming expressions.

  • Text value templates ({...}) to reduce code size.

  • map{} to hold bindings of static variables to support processing of static features such as @use-when.

  • xsl:mode for every one of the half-dozen modes employed.

  • xsl:iterate to handle and track variable bindings, mostly for static resolution and condiitonal compilation. (Interestingly, conversion of xsl:iterate itself does not at present involve use of iteration, though perhaps the view of variable scoping is over-generous).

  • xsl:evaluate to evaluate static variables for substitution and processing of @use-when directives.

Of these features, string concatenation would require full XPath parsing, as it uses operator associativity extensively and is thus very unsuitable for regular expression handling. (A refactoring to use concat() is probably overdue – actually they aren't used in very complex situations.) The use of map{} is comparatively simple, but does involve functional constructors. The most thorny issue is use of xsl:evaluate. In (commercial) Saxon 2.0 implementations there is a saxon:evaluate() function that can be be exploited, with suitable variable bindings as discussed earlier. Unfortunately this isn't a option in the current open-source Saxon-CE[20].

Any system involving program generating program inevitably encounters quoting problems - how to distinguish real program from program to be written. In XSLT the xsl:namespace-alias declaration helps solve this issue, in this case by declaring the X: prefixed namespace to map into the XSLT namespace in the final result. However if the compiler is processing itself, then input elements marked with that prefix need to be preserved. This requires a remapping and re-alisassing.

Full XPath parsing was added to the repertoire and the the system tuned by examining it operating on itself. The first goal was of course to generate a result that will compile successfully. Having reached that point, further tuning was required to get successful operation of the generated compiler on small tests, whose runs could be compared against benchmarks.

If this transformation is successful then of course the resulting 2.0 version of the converter should again be capable of converting its 3.0 master copy into 2.0, producing an identical copy of the converting stylesheet. Thus if Convert3 is the converting stylesheet, then

let Convert2 :=  Convert3(Convert3);
    Convert2(Convert3) == Convert2

should yield the given equality.The author can report that this is now indeed the case[21]. Stability and idempotency has been tested successfully through checking that

Convert2(Convert3) = (Convert2(Convert3))(Convert3)

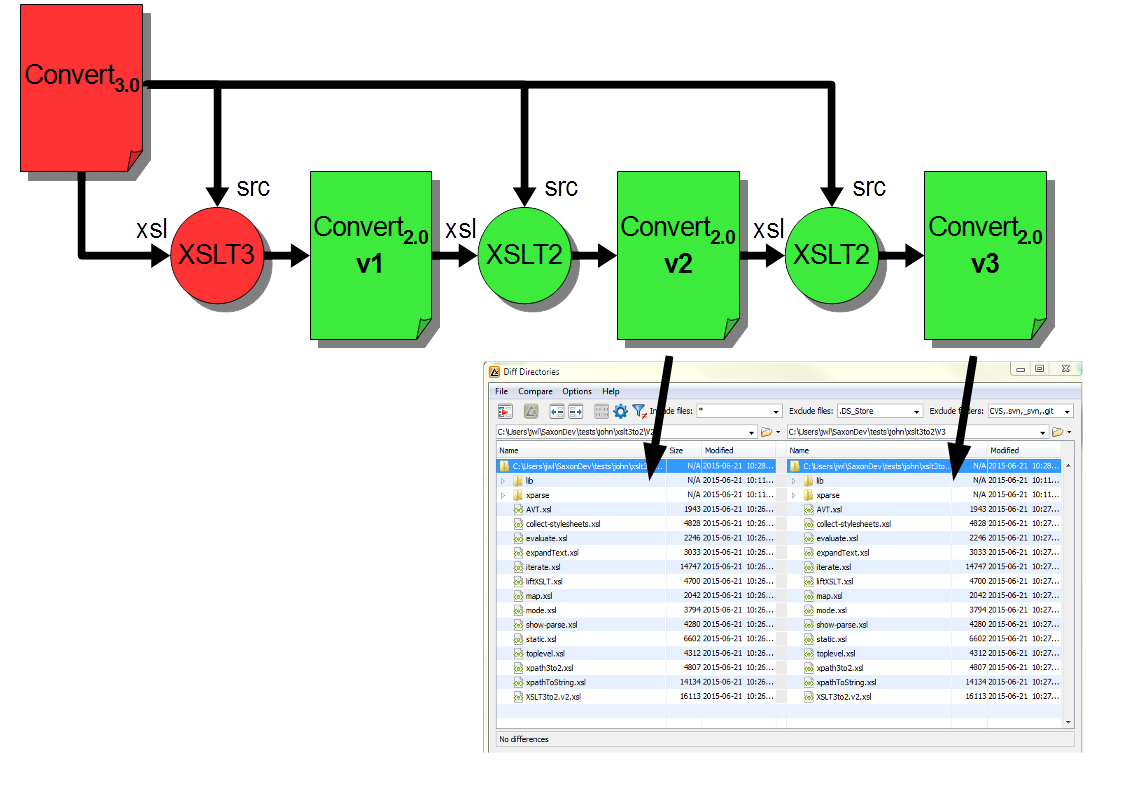

Alternatively this is best shown through the following diagram, where the final two generated versions of the converter are found to be identical:

Figure 6: Conversion of the XSLT3to2 converter to XSLT2.0

Further possibilities

The list of assumptions (section “Assumptions”) excluded a number of areas that might be interesting to explore. Streaming could be treated as a transparent operation, but of course there would be no performance guarantees and unless full streamability analysis was undertaken, programs that would ordinarily be deemed unstreamable would still operate. Simple packaging based on static analysis, flattening, visibility projection and overriding replacement is a distinct possibility: provided all stylesheet packages are available, the package processing is effectively a static operation [22] .

The most intriguing would be to investigate what sort of function-valued item behaviour could be supported, by attempting to attach to Dimitre Novatchev's FXSL framework (Novatchev2006). Most of the standard higher-order functions have implementations within the library, and static definitions of function items can be determined from XPath parses, so the issue is whether these can be converted to appropriate template-reference elements and associated template and function trios. Whilst this paper has described a useful model for maps in some circumstances, a system that could accomodate dynamic functions may support maps more accurately, as essentially they are functions over a finite discrete domain of key values.

Acknowledgements

Most of the impetus for this work came from the work of Michael Kay, Philip Fearon and O'Neil Delpratt when they released SaxonCE in 2011. Offering a possibility of trying my document system directly in a browser environment acted as the stimulus to looking at detailed program transformation of the by-then-extensive codebase. Little did I realise that a few years later I'd be working with them.

References

[Becker2000] Becker, Oliver. The XSLT Loop Compiler. [online] http://www2.informatik.hu-berlin.de/~obecker/XSLT/loop-compiler/

[Carlisle2006] Carlisle, David. XQ2XML: XML syntaxes for XQuery. [online] http://monet.nag.co.uk/xq2xml/

[SaxonCE] Delpratt, O'Neil and Kay, Michael. Multi-user interaction using client-side XSLT. [online] XML Prague 2013 proceedings, pp1–22. http://archive.xmlprague.cz/2013/files/xmlprague-2013-proceedings.pdf

[Lumley2005] Lumley, John, Gimson, Roger and Rees, Owen. A Framework for Structure, Layout & Function in Documents. Proceedings of the 2005 ACM symposium on Document engineering. doi:https://doi.org/10.1145/1096601.1096615. [online] http://www.hpl.hp.com/techreports/2005/HPL-2005-95R1.pdf

[Lumley2013] Lumley, John. Functional, Extensible, SVG-based variable documents. Proceedings of the 2013 ACM symposium on Document engineering, pp 131-140. doi:https://doi.org/10.1145/2494266.2494274. [online] http://dl.acm.org/citation.cfm?doid=2494266.2494274

[Lumley2014] Lumley, John. Analysing XSLT Streamability. doi:https://doi.org/10.4242/BalisageVol13.Lumley01. August 2014. [online] http://www.balisage.net/Proceedings/vol13/html/Lumley01/BalisageVol13-Lumley01.html

[LumleyPhD] Lumley, John. Documents as Functions. University of Nottingham, PhD Thesis. June 2012. [online] http://etheses.nottingham.ac.uk/2631/

[Novatchev2006] Novatchev, Dimitre. Higher-Order Functional Programming with XSLT 2.0 and FXSL. Proceedings of Extreme Markup Languages, Montreal 2006. [online] http://conferences.idealliance.org/extreme/html/2006/Novatchev01/EML2006Novatchev01.html

[REx] Rademacher, Gunther. REx Parser Generator. [online] http://www.bottlecaps.de/rex/

[XPath3.0] Robie, Jonathan, Chamberlin, Don, Dyck, Michael and Snelson, John, Editors. XML Path Language (XPath) 3.0. World Wide Web Consortium, 08 April 2014. [online] http://www.w3.org/TR/xpath-30/

[XPath.FO] Kay, Michael, Editor. XQuery and XPath Functions and Operators 3.0. World Wide Web Consortium, 08 April 2014. [online] http://www.w3.org/TR/xpath-functions-30/

[XSLT2.0] Kay, Michael, Editor. XSL Transformations (XSLT) Version 2.0 (Second Edition). World Wide Web Consortium, 23 January 2007. [online] http://www.w3.org/TR/xslt20/

[XSLT3.0] Kay, Michael, Editor. XSL Transformations (XSLT) Version 3.0. World Wide Web Consortium, 2 October 2014. [online] http://www.w3.org/TR/xslt-30/



[1] There were some dozen additional Java classes for handling encapsulated operations and functions such as within-paragraph text layout, or image size lookup, but these aren't germane to this paper – all main layout was processed through XSLT code.

[2] Whilst there are differences, for the rest of this paper, unless stated otherwise, the term XSLT or XPath is used to refer to any of the three.

[3] There have also been suggestions for this construct being used to declare default typing for a mode, or even acting as a wrapper around a whole suite of templates....

[4] An xsl:iterate with none of these directives behaves as xsl:for-each, save that the latter could execute for all selected nodes in parallel.

[5] Whilst in later versions of Saxon this is only supported in the commercial editions, which support XSLT 3.0 anyway, in the earlier (free) Saxon-B product, which supports XSLT 2.0 extensively, this extension function is available.

[6] Ironically, in the author's XSLT streamability analysis tool (Lumley2014), just such mixed sequences were used to return both XML trees and property information, the maps being filtered out for separate processing at a later stage.

[7] With the addition of map ids to the keys and a map-end marker, it might be possible to represent singleton values of map(*) type within such maps.

[8] It has the same arity as, but a different signature (item()*,xs:anyAtomicType) from, the standard map:get(map(*),xs:anyAtomicType) and shamelessly exploits the fact that in XSLT2.0 the namespace associated with maps is not reserved.

[9] The @length property of the binding may appear redundant (search to the next binding...) but the length of the sequence is known when the entry is created and it makes retrieval of the key's associated value more efficient.

[10] Is is possible to write specialist filter functions such as isMapItem() which can differentiate between map entries and non-map entries in such sequences. This is used in some of the processing of presentational variables described in Lumley2013, but they are used in very specific circumstances.

[11] The reader won't be surprised that this was the system used in the original 2.0 version of the layout processor, which became more coherent by using maps in 3.0

[12] At the time of writing, the map key/value association operator is being changed from its initial draft string of := to : .

[13] Other examples of homoiconic languages include of course LISP, Prolog, Mathematica and Tcl, not forgetting lowest-level machine code.

[14] We make the assumption the original XSLT 3.0 is valid. If so, we should be able to just look at the references to get the required variables. By filtering the in-scope variable definitions by reference needs we can retain any type information (@as) on the generated parameters, which increases robustness and possible performance.

[15] Placing these variables in a reserved namespace reduces risk of name conflict

[16] Technically if any tail position lacks a next-iteration directive then it behaves as if one exists, albeit with no modification of parameters.

[17] Strictly this analysis should be carried out on the expanded stylesheet importation/inclusion tree, but the situation for a single stylesheet is described for simplicity.

[18] This parser was used extensively as the basis of the author's XSLT streamability analysis tool Lumley2014.

[19] This mixed-sequence approach is only possible for XSLT elements which require exactly one of @select or a child sequence constructor, such as xsl:variable or xsl:sort. Other situations involving XPath expressions such as xsl:if test="expr", where any element sequence constructors carry result trees, would require closely-preceding temporary variables to be set to an appropriate value and referenced from the test.

[20] It is possible to produce modified versions of the open-source Saxon-CE with an extension function that can support an equivalent of saxon:evaluate().

[21] Hard pounding this, gentlemen. This activity exercises problems of quoting, namespace preservation and URI relativity more acutely than most other XSLT work.

[22] The XPath parsing code, wrapping around Gunther Rademacher's generated parser, is written in XLST3.0 package format and flattened to use in current non-packaged implementations.

×

Becker, Oliver. The XSLT Loop Compiler. [online] http://www2.informatik.hu-berlin.de/~obecker/XSLT/loop-compiler/

×

Carlisle, David. XQ2XML: XML syntaxes for XQuery. [online] http://monet.nag.co.uk/xq2xml/

×

Delpratt, O'Neil and Kay, Michael. Multi-user interaction using client-side XSLT. [online] XML Prague 2013 proceedings, pp1–22. http://archive.xmlprague.cz/2013/files/xmlprague-2013-proceedings.pdf

×

Lumley, John, Gimson, Roger and Rees, Owen. A Framework for Structure, Layout & Function in Documents. Proceedings of the 2005 ACM symposium on Document engineering. doi:https://doi.org/10.1145/1096601.1096615. [online] http://www.hpl.hp.com/techreports/2005/HPL-2005-95R1.pdf

×

Lumley, John. Functional, Extensible, SVG-based variable documents. Proceedings of the 2013 ACM symposium on Document engineering, pp 131-140. doi:https://doi.org/10.1145/2494266.2494274. [online] http://dl.acm.org/citation.cfm?doid=2494266.2494274

×

Lumley, John. Documents as Functions. University of Nottingham, PhD Thesis. June 2012. [online] http://etheses.nottingham.ac.uk/2631/

×

Novatchev, Dimitre. Higher-Order Functional Programming with XSLT 2.0 and FXSL. Proceedings of Extreme Markup Languages, Montreal 2006. [online] http://conferences.idealliance.org/extreme/html/2006/Novatchev01/EML2006Novatchev01.html

×

Rademacher, Gunther. REx Parser Generator. [online] http://www.bottlecaps.de/rex/

×

Robie, Jonathan, Chamberlin, Don, Dyck, Michael and Snelson, John, Editors. XML Path Language (XPath) 3.0. World Wide Web Consortium, 08 April 2014. [online] http://www.w3.org/TR/xpath-30/

×

Kay, Michael, Editor. XQuery and XPath Functions and Operators 3.0. World Wide Web Consortium, 08 April 2014. [online] http://www.w3.org/TR/xpath-functions-30/

×

Kay, Michael, Editor. XSL Transformations (XSLT) Version 2.0 (Second Edition). World Wide Web Consortium, 23 January 2007. [online] http://www.w3.org/TR/xslt20/

×

Kay, Michael, Editor. XSL Transformations (XSLT) Version 3.0. World Wide Web Consortium, 2 October 2014. [online] http://www.w3.org/TR/xslt-30/
